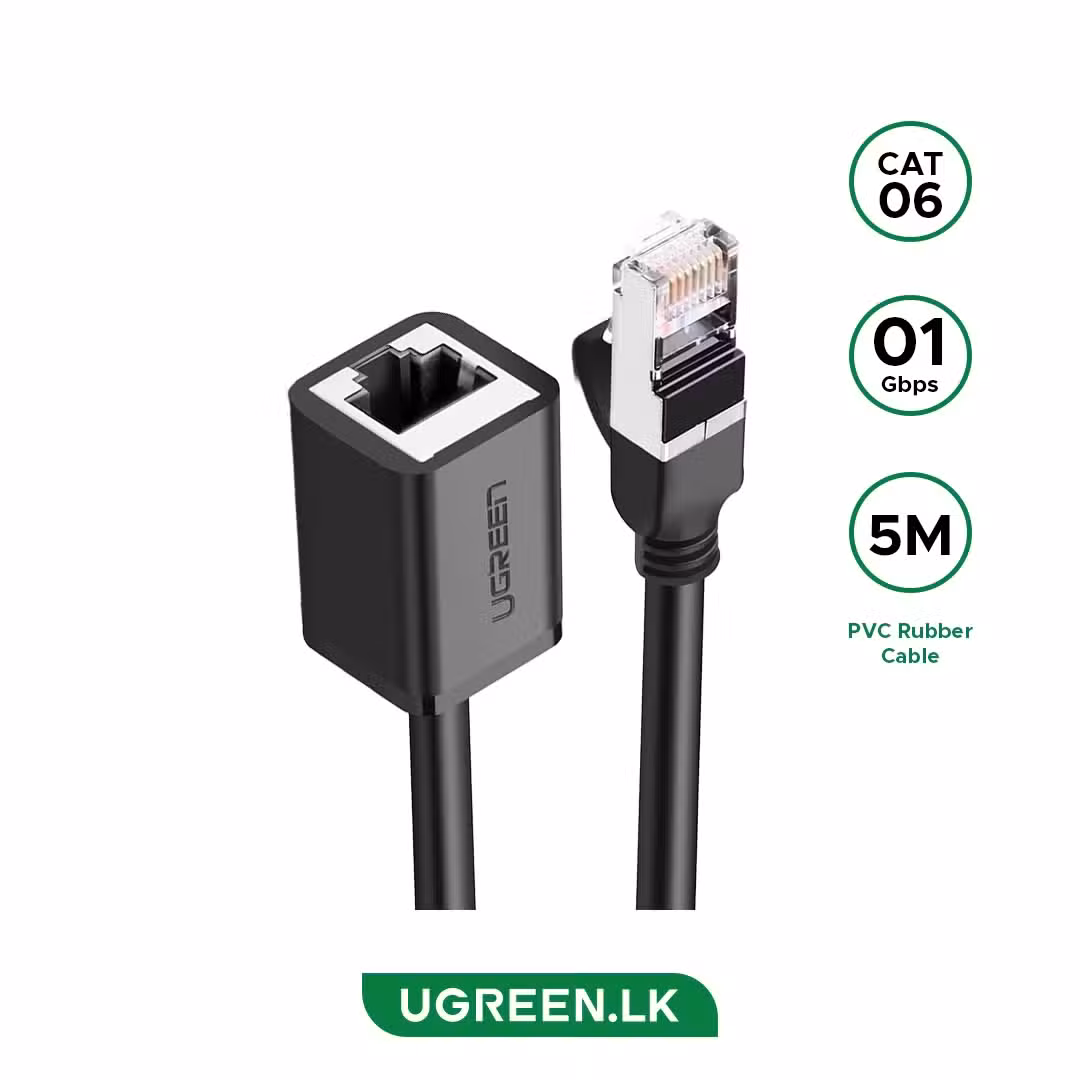

Ugreen NW112 Cat 6 F/UTP Ethernet Extension Patch Cord 5m Black
Original price was: KSh 800.00.KSh 700.00Current price is: KSh 700.00. ex VAT
Ugreen NW112 Cat 6 F/UTP Ethernet Extension Patch Cord 5m Black
| Model | Ugreen NW112 (11283) |
| Connectors | 1x RJ45 male, 1x RJ45 female |
| Category | Cat 6 F/UTP |
| Conductor | 26AWG pure copper |
| Bandwidth | 250 MHz |
| Data rate | 1000 Mbps |
| Impedance | 100 ± 15 ohm |
| PoE support | IEEE 802.3af/at |
| Length | 5 m |
| Jacket | PVC, 6.0 mm OD |
| Colour | Black |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Shielded Male-to-Female Coupler for Gigabit Links
The Ugreen Cat 6 extension joins two RJ45 runs without adding a switch, using one male and one female connector. It carries 1000BASE-T traffic across the 5 m span. Foil shielding surrounds the four twisted pairs.
26AWG pure copper conductors keep insertion loss low over the 250 MHz channel. The 568B pinout matches TIA/EIA-568-C.2 wiring. Metal-shell RJ45 plugs resist latch damage in patch panels and wall outlets.
The PVC jacket measures 6.0 mm outside diameter and bends inside 25 mm conduit. The coupler suits desk drops, CCTV PoE runs and rack extensions where the original lead falls short. Straight-through wiring preserves pin polarity on both ends.
Key Features
Foil-Shielded Twisted Pairs
An F/UTP screen drains EMI from nearby power cabling and preserves pair balance across the full 5 m length.Metal-Shell RJ45 Connectors
Die-cast shells protect the latch and contacts during repeated patching cycles in dense rack environments.26AWG Copper Conductors
Pure copper cores limit DC resistance and support PoE delivery for cameras and access points over short extensions.250 MHz Channel Rating
The cable meets Cat 6 return-loss and crosstalk limits for 1 Gbps links with margin against alien crosstalk.568B Wiring Standard
Straight-through pinout aligns with standard keystone and patch-panel terminations, reducing installation errors.Flexible PVC Jacket
A 6.0 mm outer diameter and 25 mm minimum bend radius allow routing through tight trunking and under-desk cable trays.
Specifications
| Feature | Specification |
|---|---|
| Model | Ugreen NW112 |
| Part number | 11283 |
| Connector type | 1x RJ45 male, 1x RJ45 female |
| Category | Cat 6 |
| Shielding | F/UTP foil screen |
| Conductor | 26AWG pure copper |
| Bandwidth | 250 MHz |
| Data rate | Up to 1000 Mbps |
| Wiring scheme | 568B straight-through |
| Jacket material | PVC |
| Outer diameter | 6.0 mm |
| Bend radius | 25 mm minimum |
| Length | 5 m |
| Colour | Black |
| Impedance | 100 ± 15 ohm |
| PoE support | IEEE 802.3af/at compatible |
| Operating temperature | -20°C to 75°C |
What’s in the Box
Ugreen NW112 Cat 6 F/UTP male-to-female extension cable, 5 m
Why Choose the NW112 Extension Lead
The foil screen blocks interference from mains and fluorescent circuits in shared risers and industrial cabinets.
Metal connector shells survive frequent moves between desks, patch cabinets and temporary event setups.
Copper cores carry both data and PoE current on short camera or access-point extensions without voltage droop.
The 250 MHz rating leaves margin for Gigabit Ethernet without dropping to Fast Ethernet on longer runs.
A 6.0 mm jacket fits standard cable trays, floor trunking and 25 mm conduit bends.
568B straight-through wiring eliminates pinout mismatches when extending pre-terminated structured cabling links.
