Ubiquiti UniFi Dream Machine Pro Max UDM-Pro-Max
Original price was: KSh 137,068.97.KSh 109,655.17Current price is: KSh 109,655.17. ex VAT
Available on backorder
Ubiquiti UniFi Dream Machine Pro Max UDM-Pro-Max
| Role | UniFi OS console / gateway |
| WAN | 2.5G RJ45 + 10G SFP+ |
| LAN | 8× 1G + 10G SFP+ |
| Storage | HDD bays for Protect |
Available on backorder
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

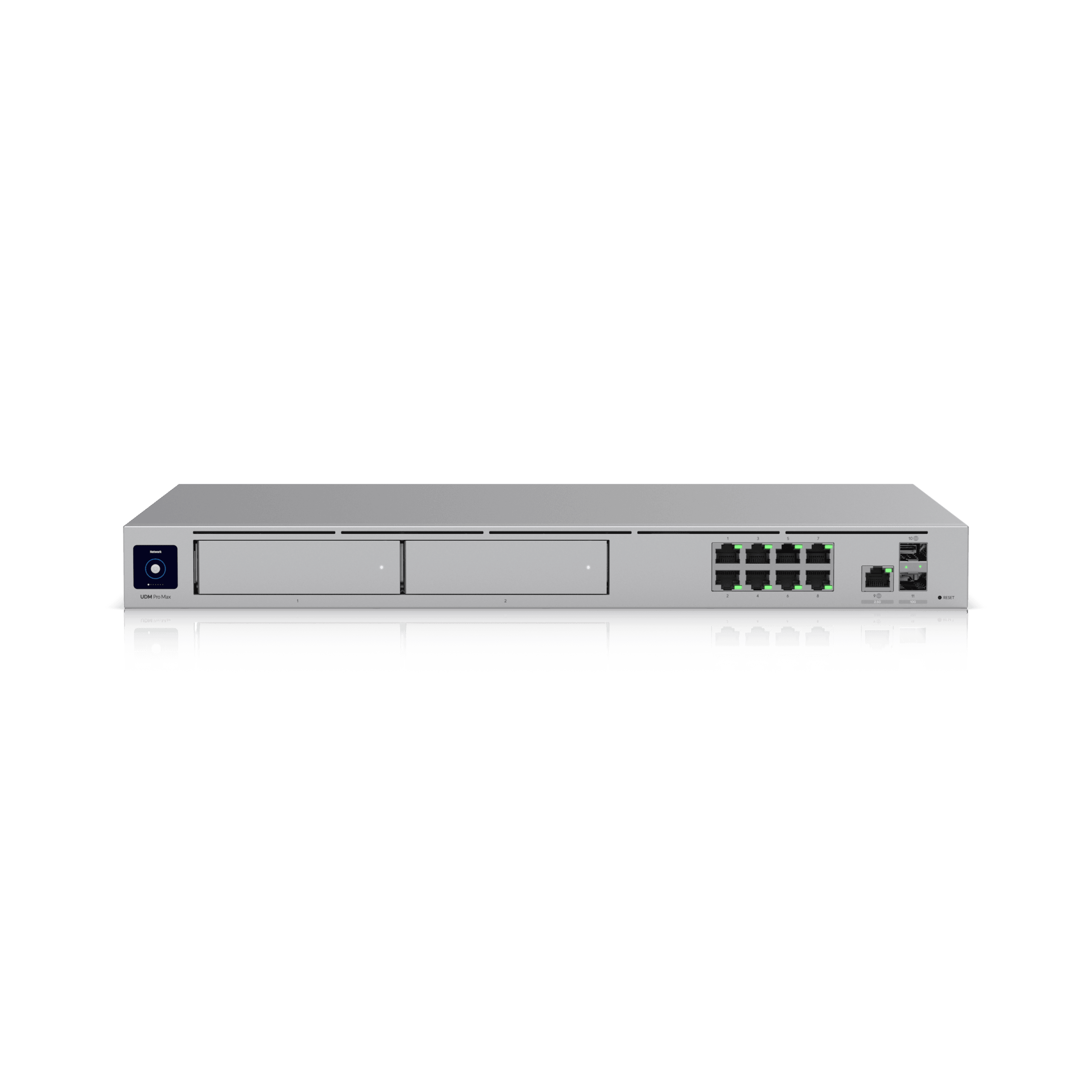

Dream Machine Pro Max
The UniFi Dream Machine Pro Max (SKU UDM-Pro-Max) is a 1RU UniFi OS console that combines a security gateway, application server, and NVR. It sits above the original Dream Machine Pro with a faster CPU, 2.5G WAN, and higher IDS/IPS throughput. Dual WAN-capable ports (2.5G RJ45 and 10G SFP+) support fibre or copper handoff. Eight Gigabit LAN ports plus a 10G SFP+ LAN cage cover a small rack without a separate core switch. HDD bays record UniFi Protect cameras when drives are installed.
Additionally, UniFi Network, Protect, Access, Talk, and Connect applications run on the same appliance subject to resource limits. Therefore many sites collapse four boxes into one RU. However, camera count and IDS inspection share CPU. Consequently, size camera bitrates and IDS mode against Ubiquiti’s published Pro Max limits, not the older UDM-Pro numbers.
Key Features
Integrated UniFi OS console
Hosts the UniFi application suite and the site gateway in one chassis.Multi-gig and 10G WAN/LAN
- 2.5G RJ45 WAN and 10G SFP+ WAN for fibre CPE.
- 8× 1G LAN plus 10G SFP+ LAN for servers or a downstream switch.
Threat inspection
IDS/IPS and content filtering run on the upgraded Pro Max dataplane when enabled.Protect NVR
Internal drive bays store camera footage. Use NAS-rated HDDs qualified by Ubiquiti.Redundant power option
USP-RPS / redundant PSU support follows the Pro Max hardware guide.

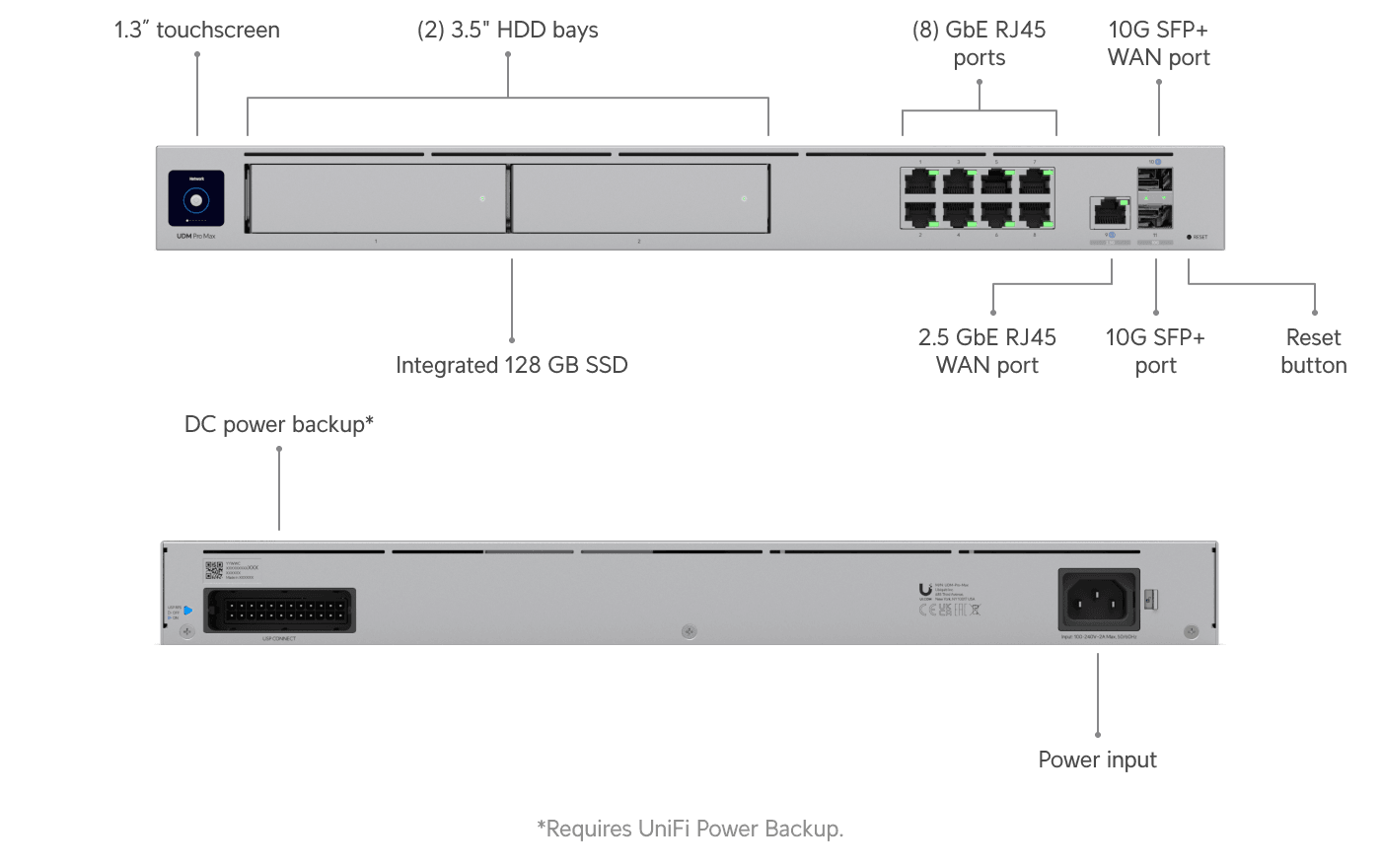

Specifications
| Feature | Specification |
|---|---|
| SKU | UDM-Pro-Max |
| Form factor | 1RU |
| WAN | 1× 2.5G RJ45, 1× 10G SFP+ |
| LAN | 8× 1G RJ45, 1× 10G SFP+ |
| OS | UniFi OS |
| Applications | Network, Protect, Access, Talk, Connect |
| Storage | Hot-swap HDD bays (drives extra) |
| Management | UniFi UI / mobile |
What’s in the Box
UDM-Pro-Max appliance
Power cord
Rack-mount kit
Documentation
Hard drives and SFP+ modules are sold separately.
Why Choose This Console

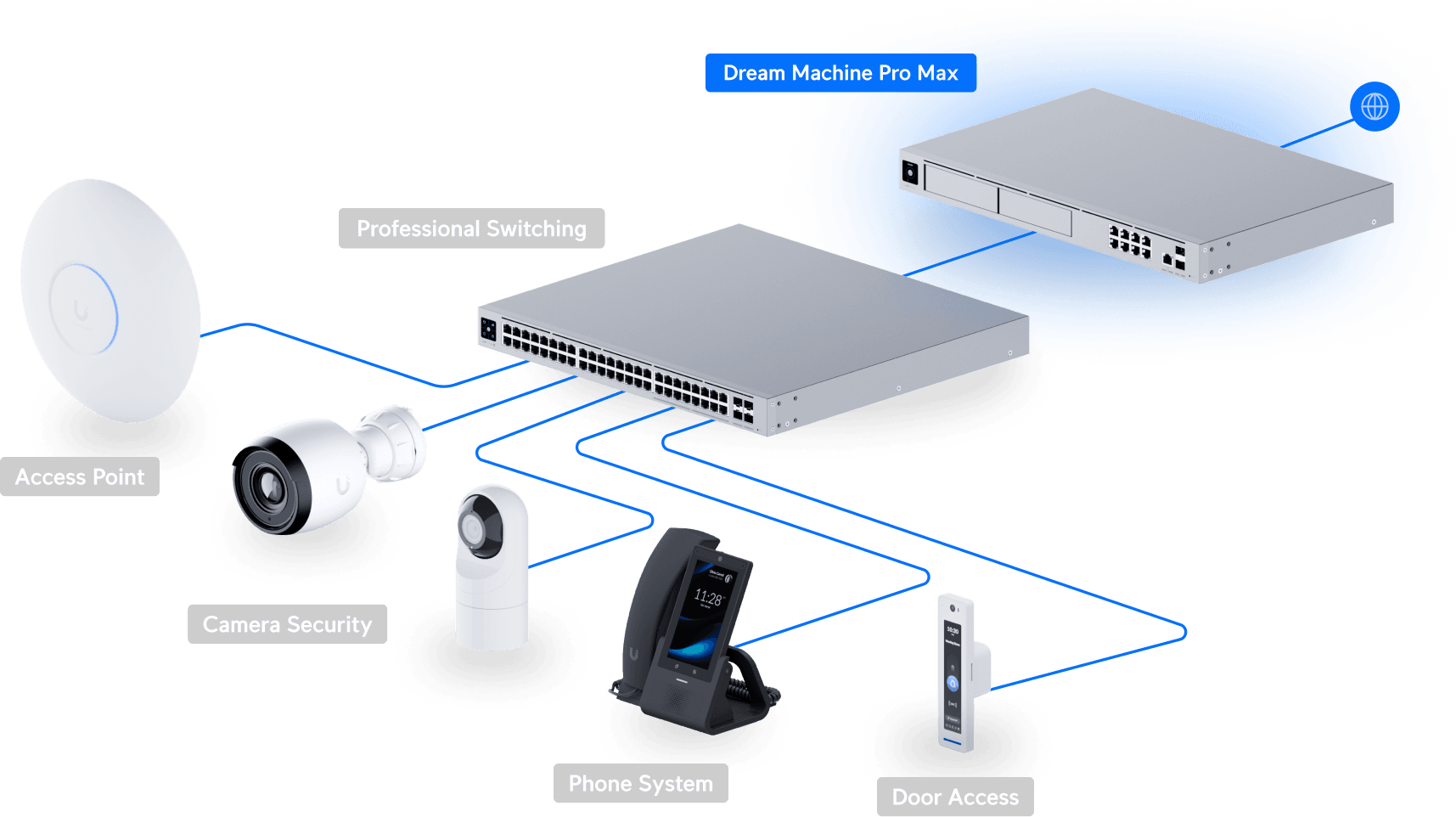

Gateway, controller, and NVR share one RU and one management login.
2.5G/10G WAN matches modern fibre CPE speeds.
Protect bays avoid a separate NVR for modest camera counts.
IDS/IPS on the Pro Max dataplane is stronger than the original Pro.
Additionally, adopt the device into a UniFi account before stacking switches. Therefore plan VLANs and WAN failover in the Network app first. However, do not enable every UniFi application on a loaded NVR without checking CPU. Consequently, split Talk or a large Protect deployment if the UI shows saturation. Use Ubiquiti’s compatibility list for HDDs.
See networking UniFi hardware.
