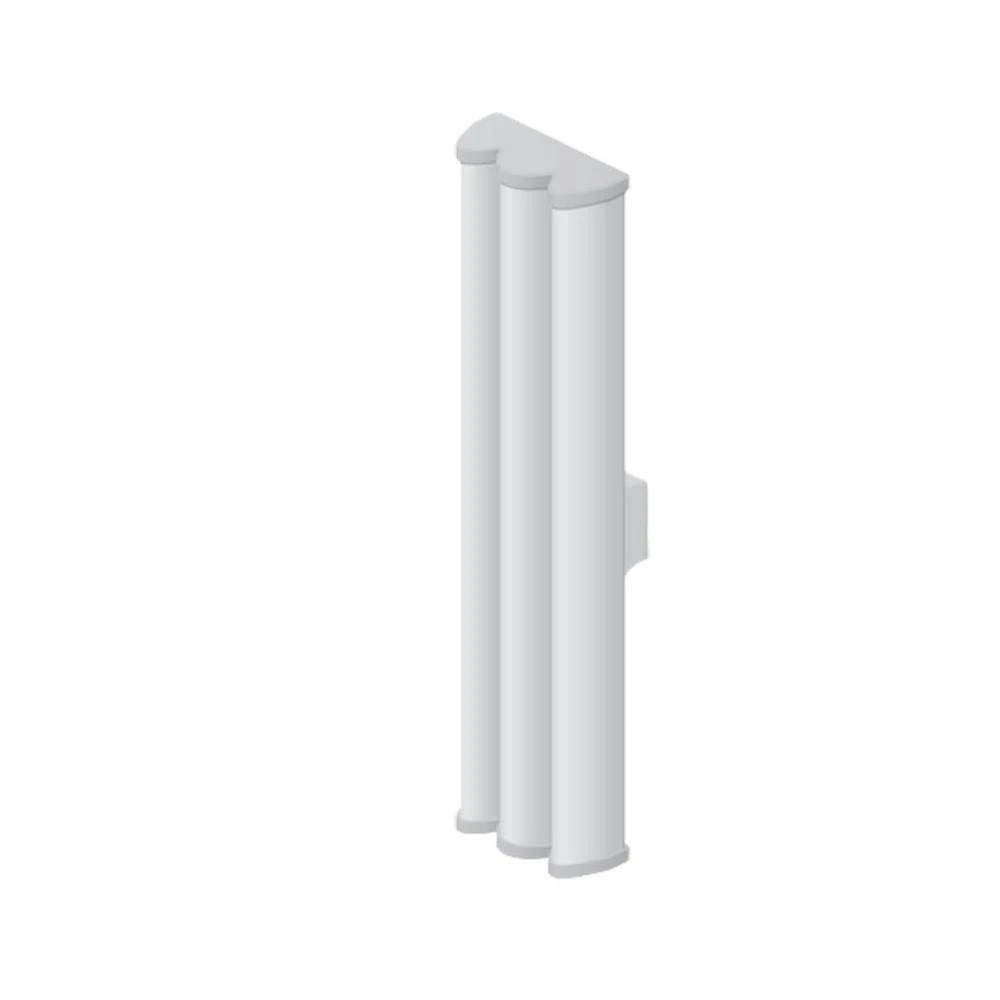

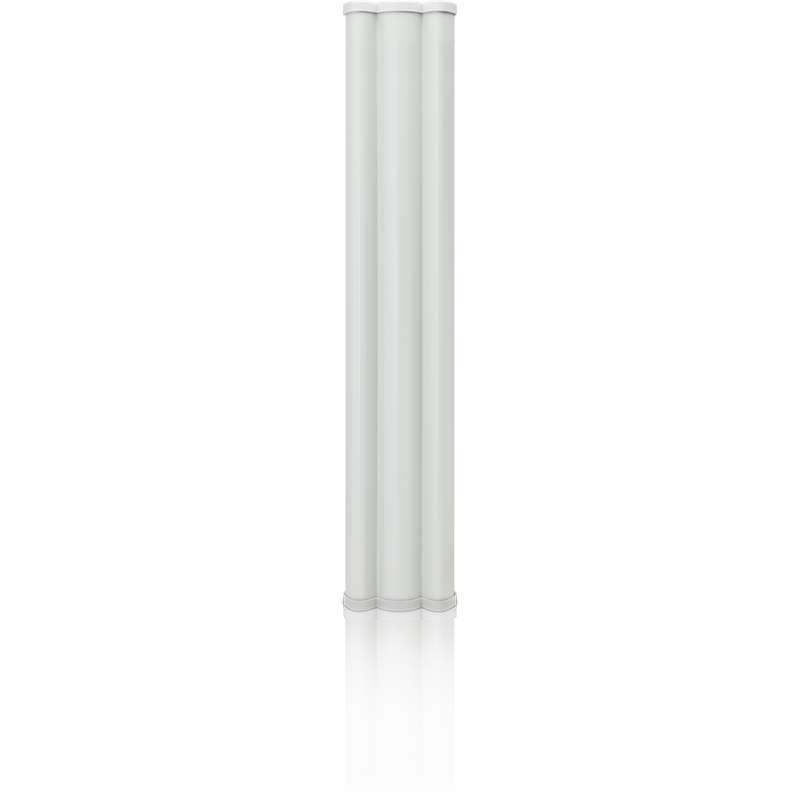

Ubiquiti AM-5G19-120 airMAX 5 GHz 19 dBi 120° Dual-Pol Sector Antenna
Original price was: KSh 38,400.00.KSh 30,000.00Current price is: KSh 30,000.00. ex VAT
Ubiquiti AM-5G19-120 airMAX 5 GHz 19 dBi 120° Dual-Pol Sector Antenna
| Model | AM-5G19-120 |
| Frequency Range | 5.15–5.85 GHz |
| Gain | 18.6–19.1 dBi |
| Beamwidth | 123° HPOL / 123° VPOL (6 dB) |
| Polarization | Dual linear |
| Cross-Pol Isolation | 28 dB minimum |
| Max VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Dimensions | 700 x 135 x 73 mm |
| Weight | 5.9 kg (13 lb), mount included |
| Mounting | Universal pole mount, RocketM bracket |
| Radio Compatibility | RocketM5 / RocketM5 GPS |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
5 GHz 2×2 MIMO Base Station Sector Antenna
The Ubiquiti AM-5G19-120 is a 5 GHz 2×2 MIMO sector antenna for point-to-multipoint base station coverage. It combines dual-linear polarization with 18.6–19.1 dBi gain across 5.15–5.85 GHz. A 120° horizontal pattern serves a wide sector from a single radio.
Two weatherproof RF jumpers feed the radiating element from a RocketM5 or RocketM5 GPS radio. Horizontal and vertical beamwidths both measure 123° at the 6 dB points. Elevation beamwidth is 4°, with 2° of fixed electrical downtilt. Maximum VSWR is 1.5:1 and cross-polarization isolation reaches 28 dB minimum.
The pole-mount kit uses two U-brackets, two pole brackets and two pole clamps. Wind survivability reaches 200 km/h with 137.9 N loading at that speed. The 5.9 kg assembly measures 700 x 135 x 73 mm and meets ETSI EN 302 326 DN2. Use shielded Cat5 or better cabling grounded through the PoE AC ground.
Key Features
Dual-polarized 2×2 MIMO element
Two orthogonal linear ports support spatial multiplexing and receive diversity on a compatible RocketM radio.120° sector coverage
The 123° horizontal and vertical beamwidths at the 6 dB points shape broad coverage for dense subscriber groups.Stable 5 GHz gain
Gain holds between 18.6 and 19.1 dBi across the full 5.15–5.85 GHz operating band.Outdoor wind rating
- 200 km/h survivability suits exposed mast and tower installations.
- 137.9 N wind loading at 200 km/h informs structural planning.
RocketM mounting interface
The universal pole mount and RocketM bracket accept RocketM5 and RocketM5 GPS units without extra adapters.Weatherproof RF path
Two supplied RF cables connect the antenna ports to the radio and seal against moisture ingress.Fixed electrical downtilt
A 2° downtilt with a 4° elevation beamwidth limits vertical spill beyond the intended coverage zone.
Specifications
| Feature | Specification |
|---|---|
| Model | AM-5G19-120 |
| Product Type | 2×2 MIMO base station sector antenna |
| Frequency Range | 5.15–5.85 GHz |
| Gain | 18.6–19.1 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 123° (6 dB) |
| Elevation Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Polarization | Dual linear |
| Cross-Pol Isolation | 28 dB minimum |
| Max VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 137.9 N @ 200 km/h (31 lbf @ 125 mph) |
| Dimensions | 700 x 135 x 73 mm (27.56 x 5.32 x 2.87 in) |
| Weight | 5.9 kg (13 lb), mount included |
| Mounting | Universal pole mount, RocketM bracket, weatherproof RF jumpers included |
| ETSI Specification | EN 302 326 DN2 |
| Radio Compatibility | RocketM5 or RocketM5 GPS (sold separately) |
What’s in the Box
Antenna
Protective shroud
U-brackets (qty. 2)
Pole brackets (qty. 2)
Pole clamps (qty. 2)
Carriage bolts (qty. 4)
Serrated flange bolts (qty. 4)
Serrated flange nuts (qty. 8)
RF cables (qty. 2)
Why Choose Ubiquiti airMAX Sector
Dual-linear ports and 28 dB cross-pol isolation support cleaner co-located sector deployments.
The 2° electrical downtilt and 4° elevation beamwidth control vertical spill beyond the coverage area.
A 1.5:1 maximum VSWR keeps reflected power low across the operating band.
The included bracket set and weatherproof jumpers reduce extra RF hardware requirements.
