Ubiquiti RocketDish RD-5G30-LW 5GHz 30dBi Antenna
Original price was: KSh 34,913.79.KSh 27,931.03Current price is: KSh 27,931.03. ex VAT
Ubiquiti RocketDish 5GHz 30dBi Antenna
| Feature | Specification |
|---|---|
| Frequency | 5.1 – 5.9 GHz |
| Gain | 30 dBi |
| Polarization | Dual-Linear |
| Weight | 7.4 kg |
| Connectors | 2x RP-SMA |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

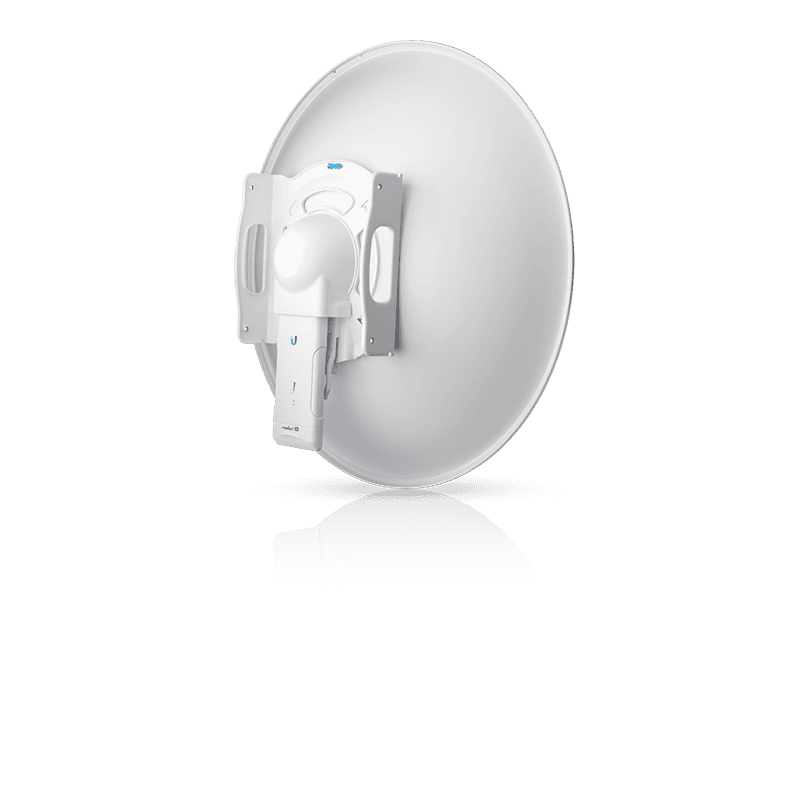

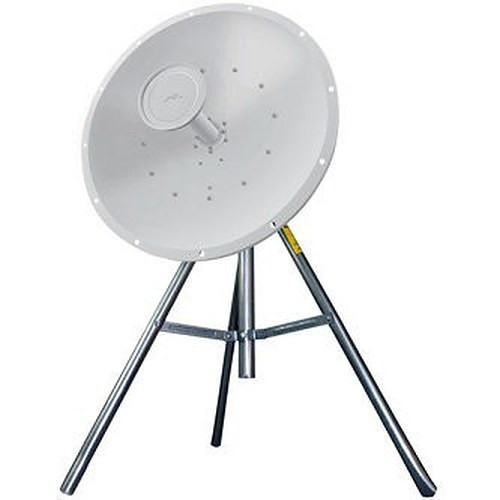

RocketDish RD-5G30-LW
The Ubiquiti RocketDish RD-5G30-LW is a professional-grade parabolic antenna designed for long-distance backhaul applications. This 5 GHz bridge component provides 30 dBi of gain to establish robust point-to-point (PtP) connectivity. It functions as a passive radiator requiring a compatible radio unit for operation. The lightweight construction minimizes the structural load on masts and towers. This model supports the 5.1 to 5.9 GHz frequency band for flexible deployment in various RF environments. Network engineers utilize this hardware to bridge gaps between remote sites with high throughput requirements.
Key Features
Dual-Linear Polarization
The feed horn supports both vertical and horizontal signals to maximize data capacity in airMAX networks.Mechanical Stability and Durability
- Wind survival rating reaches 200 kilometers per hour.
- The 650 mm reflector utilizes zinc-galvanized steel for corrosion resistance.
- Included mounting hardware features a built-in mechanical tilt adjustment for precise alignment.
Radio Integration
The integrated Rocket mount allows for tool-free installation of Rocket 5AC or Rocket M5 radios.Interference Management
The parabolic design creates a narrow 5.8-degree beamwidth to isolate signals from adjacent noise sources.
Specifications
| Feature | Specification |
|---|---|
| Frequency Range | 5.1 – 5.9 GHz |
| Gain | 30 dBi |
| Polarization | Dual-Linear |
| HPOL Beamwidth | 5.8° (3 dB) |
| VPOL Beamwidth | 5.8° (3 dB) |
| F/B Ratio | 30 dB |
| Max VSWR | 1.6:1 |
| Wind Loading | 790 N @ 200 km/h |
| Wind Survivability | 200 km/h (125 mph) |
| Dimensions | 650 x 650 x 304 mm |
| Weight | 7.4 kg (with mount) |
| RF Connectors | 2x RP-SMA (Weatherproof) |
What’s in the Box
RD-5G30-LW Dish Reflector
Universal Pole Mount Bracket
Rocket Radio Cradle
Weatherproof RF Jumpers (Pair)
Assembly Hardware Kit
Why Choose This 5 GHz Dish
The lightweight design reduces the total load on existing tower infrastructure during multi-sector deployments.
High front-to-back ratios improve co-location performance by reducing self-interference between back-to-back links.
Additionally, the compatibility with ISO-BEAM radomes allows for enhanced RF shielding in high-density environments.
The 30 dBi gain provides the necessary link budget for carrier-class wireless backhauls over several kilometers.
Customer Reviews
4 reviews for Ubiquiti RocketDish RD-5G30-LW 5GHz 30dBi Antenna
Clear filtersYou may also like
Kelvin Mwangi (verified owner) –
Installed this on a 25km link out in Kajiado. The 30dBi gain is solid and the lightweight design made it much easier for my guys to haul up the tower compared to the older heavy dishes. Signal is very stable even when the wind picks up on the plains.
Samuel Njuguna (verified owner) –
The ‘LW’ version is definitely lighter which helps with pole load, though you have to be careful with the feedhorn during assembly so you don’t knock it. Once mounted though, the throughput is exactly what we needed for the 5GHz bridge. Good value for money for local ISPs.
Beatrice Atieno (verified owner) –
Impressive delivery speed to our office in Westlands. The dish is genuine Ubiquiti and the build quality is decent for the price point. It’s already up and working well for our backhaul link across the estate.
Juma Omondi (verified owner) –
Top notch antenna. The mounting kit is straightforward and it aligns easily. No complaints at all with the performance.
