Toshiba TR-BLT_CLN-H370 Transfer Belt Cleaning Assembly 6LK55463000

Image Transfer Belt Cleaning Module for Colour e-STUDIO

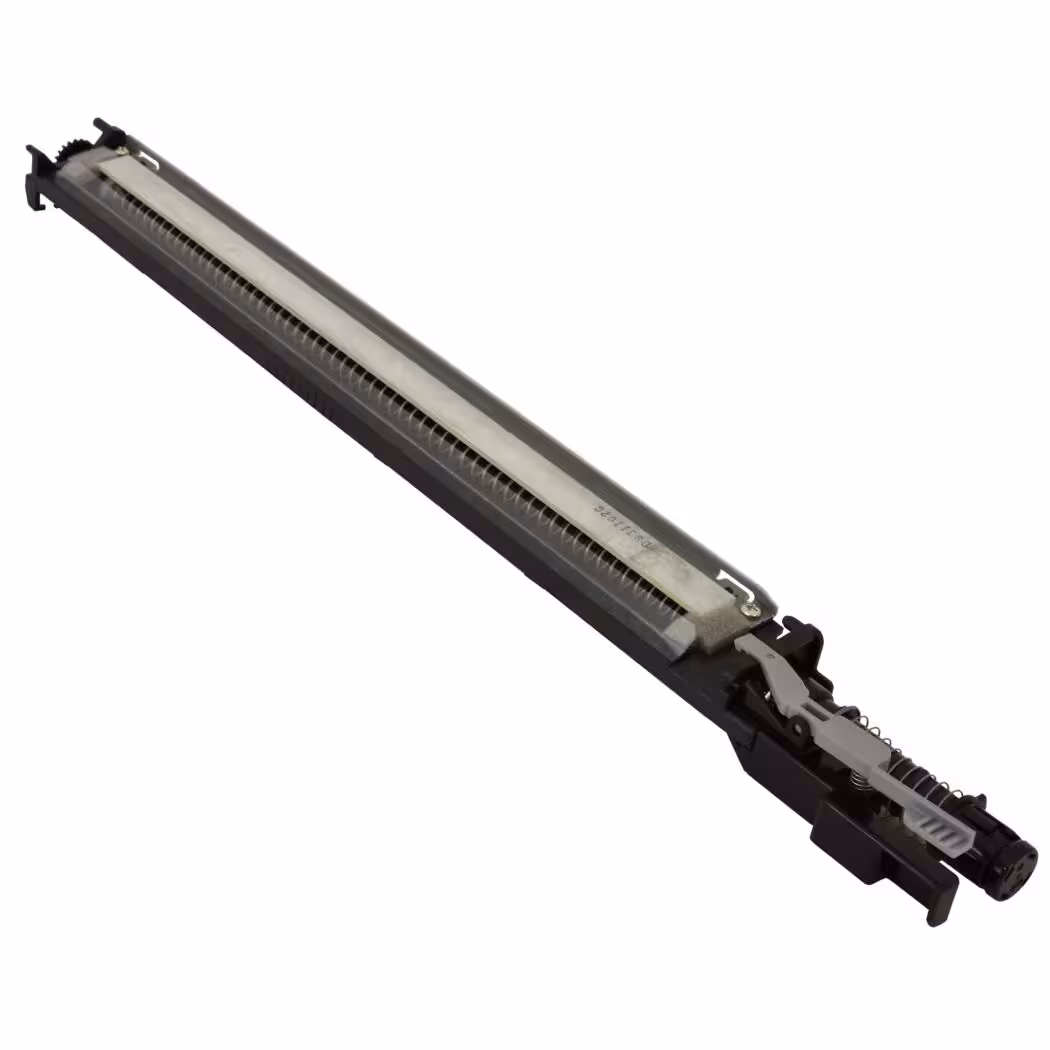

The Toshiba transfer belt cleaning assembly removes residual toner from the intermediate transfer belt after each colour pass. It carries Toshiba part number 6LK55463000 and the OEM code TR-BLT_CLN-H370. The module mounts against the ITB unit inside the printer engine.

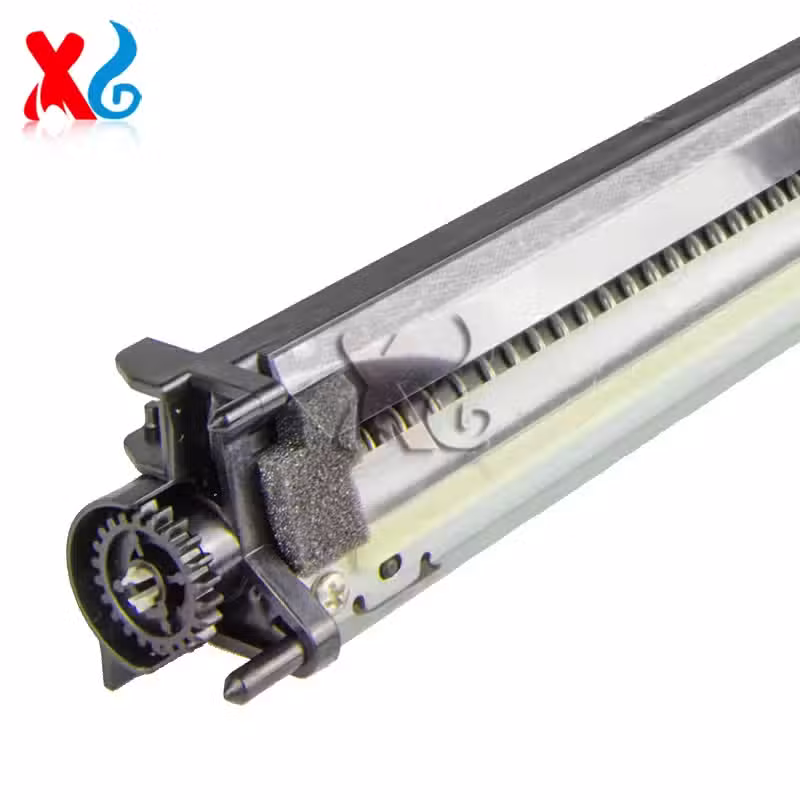

The cleaning unit combines a scraper blade and a collection auger. The blade lifts leftover toner from the belt surface, and the auger moves it into a waste chamber away from the imaging path. A worn blade or a stalled auger leaves streaks, colour ghosting and repeating marks on every page. Replacement restores a clean belt surface before the next transfer cycle begins.

Fitment covers the e-STUDIO 2000AC, 2500AC, 2505AC, 2515AC, 2520AC, 3005AC, 3015AC, 3505AC, 3515AC, 4505AC, 4508LP, 4515AC, 5005AC, 5015AC, 5528A and 6528A. The assembly ships as a complete module rather than a bare blade, which shortens the repair. Technicians remove the ITB unit from the engine, release the cleaning module, and seat the new part on its locating pins.

Handle the assembly by its frame and keep the blade edge clear of tools. A nicked blade introduces the same streaks the new part is meant to cure. After fitting, run a few colour test pages and check the belt surface through the service access before returning the machine to a user. Store spare modules upright in the original packaging.

Key Features

• Genuine Toshiba Module
  The assembly matches the 6LK55463000 listing and the TR-BLT_CLN-H370 code used in Toshiba catalogues.

• Blade and Auger Design

  • Scraper blade lifts residual toner from the belt surface
  • Collection auger drives waste toner into the holding chamber
  • Complete module replacement avoids handling a loose blade

• Wide Model Coverage
  The unit fits sixteen e-STUDIO colour models from the 2000AC through the 6528A.

• Locating Pin Mounting
  The frame seats on fixed pins so the blade lands at the correct angle to the belt.

• Streak and Ghosting Fix
  Replacing a worn cleaner clears the repeating marks caused by residual toner on the ITB.

• Field Service Part
  Access is through the ITB unit, so the repair stays inside a normal engine service visit.

Specifications

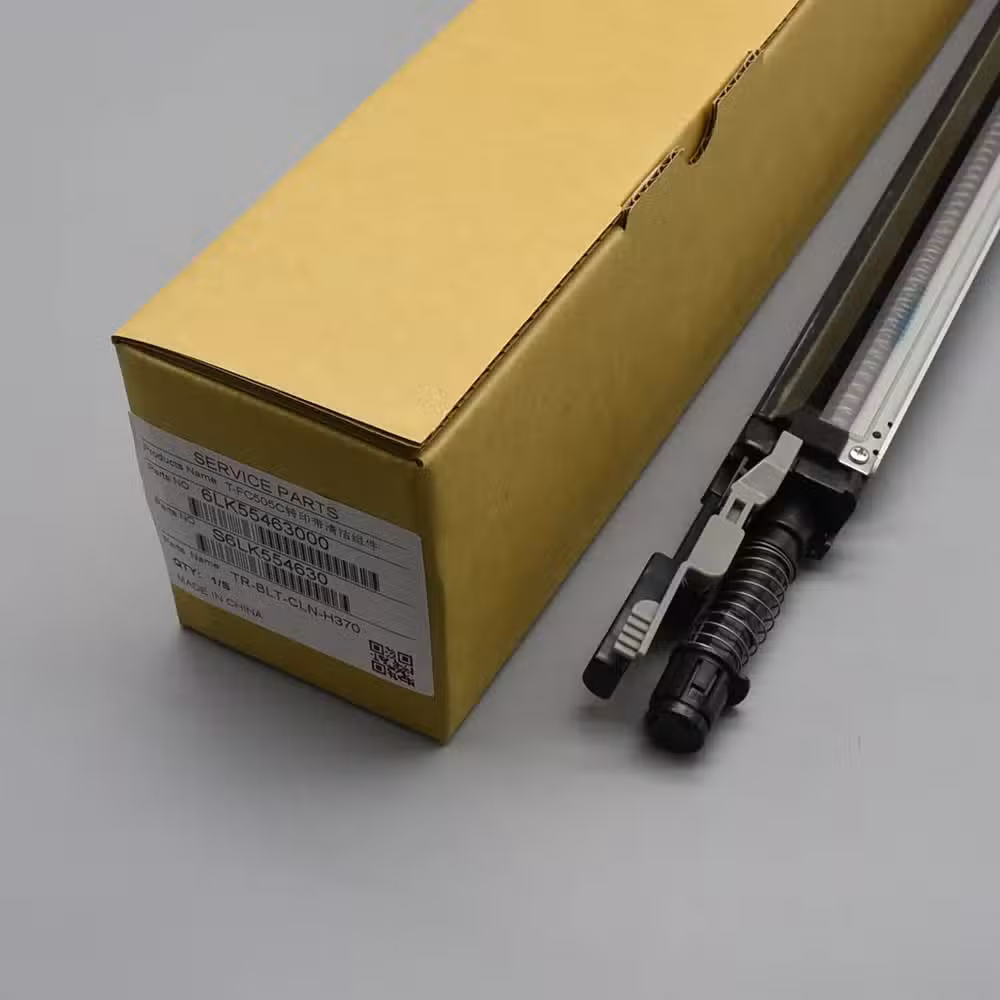

What’s in the Box

• One transfer belt cleaning assembly

Why Choose This Cleaner

• A clean belt surface keeps colour registration stable across long print runs.

• The complete module removes the risk of fitting a blade at the wrong angle.

• One part number covers sixteen e-STUDIO models, which trims stockholding on a mixed fleet.

• Locating pins make the fitment repeatable for technicians working under time pressure.

• Upright storage in the original packaging protects the blade edge before installation.
