Toshiba ODFC30(T) Drum Unit for e-STUDIO 2051C 2551C 2000AC 2500AC

Colour Photoconductor Cartridge for e-STUDIO Copiers

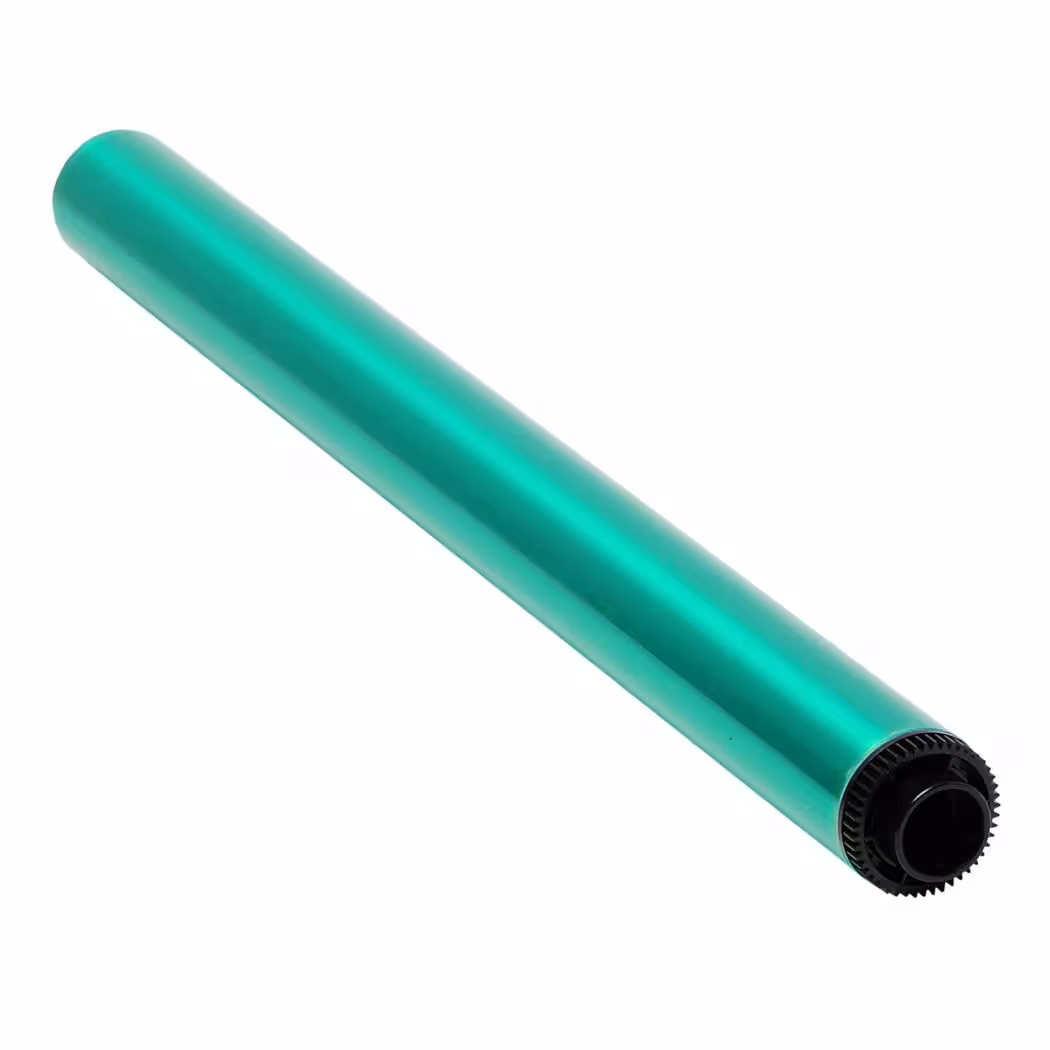

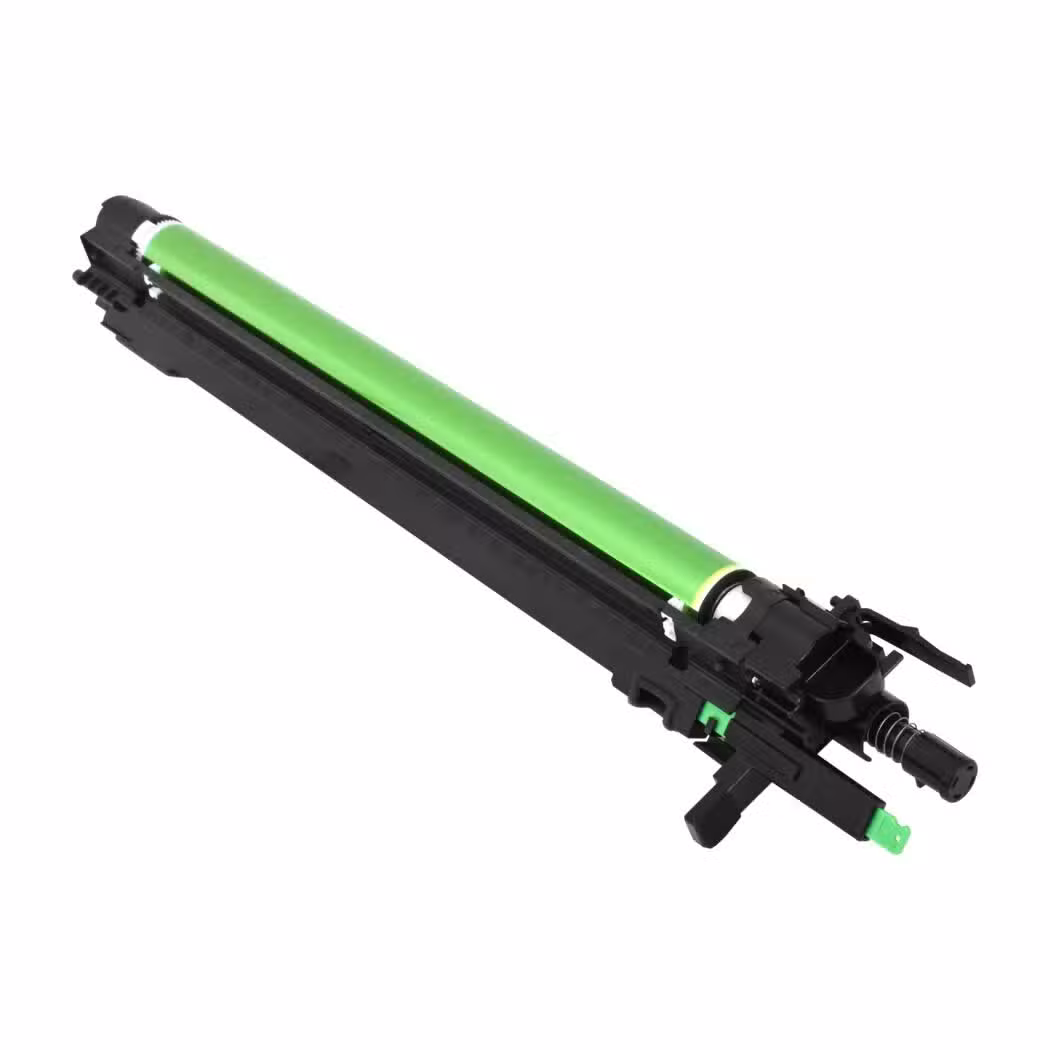

The Toshiba ODFC30 drum unit is the OPC photoconductor cartridge for Toshiba e-STUDIO colour multifunction printers. Toshiba lists the part as ODFC30(T), with the base code OD-FC30. The cartridge carries the coated aluminium drum and the charge roller inside a sealed housing.

The drum layer holds a uniform charge before laser exposure writes the latent image. A charge roller sits against the drum surface, and a cleaning blade removes residual toner after transfer. The housing seats on guide rails in the imaging section, and a single lever locks it in place.

Fitment covers the e-STUDIO 2051C, 2050C, 2550C, 2551C, 2000AC, 2010AC, 2500AC, 2510AC, 2110AC and 2610AC. Rated life sits near 67,200 pages at 5 percent coverage. Confirm the model plate against the parts list before ordering. The service manual lists the removal order for each chassis.

Replace the cartridge when output shows repeat marks at drum circumference, when background fog appears, or when the machine logs a drum-life alert. Handle the coated surface away from direct light and skin contact, because fingerprints create toner offset. Store the unit flat in its sealed bag until the service visit.

Key Features

• OPC Photoconductor Drum
  The coated aluminium drum holds a stable charge for sharp text and line art across the page.

• Integrated Charge Roller

  • Charge roller contacts the drum surface
  • Uniform charge layer before laser exposure
  • Sealed housing limits dust ingress

• Cleaning Blade Assembly
  A polyurethane blade scrapes residual toner from the drum after transfer.

• Guide-Rail Mounting
  The cartridge slides onto the imaging frame rails and locks with one lever.

• Rated Life

  • Approximately 67,200 pages at 5 percent coverage
  • Yield measured on A4 at standard text density
  • Machine tracks drum life through its counter

• Model Coverage
  The cartridge fits the e-STUDIO 2051C, 2050C, 2550C, 2551C and 2000AC through 2610AC colour series.

Specifications

What’s in the Box

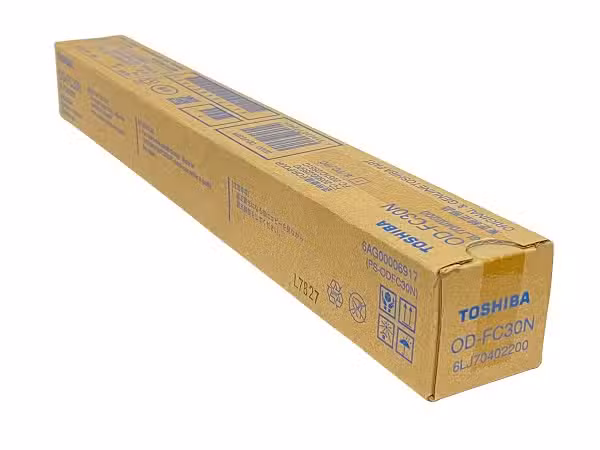

• One ODFC30(T) OPC drum unit

• Protective packaging

Why Choose the ODFC30(T)

• A worn photoconductor shows up as repeat marks and background fog, and this cartridge clears both in one visit.

• The 67,200-page rating matches the duty cycle of workgroup colour copiers.

• Guide-rail seating removes alignment steps from the replacement procedure.

• One part number covers ten e-STUDIO colour models and reduces spares line items.

• Genuine Toshiba coating keeps charge behaviour within the imaging process design tolerance.
