Toshiba FR-KIT-3072 Fuser Maintenance Kit 6LK25732000

Fuser Rebuild Pack for e-STUDIO Mono MFDs

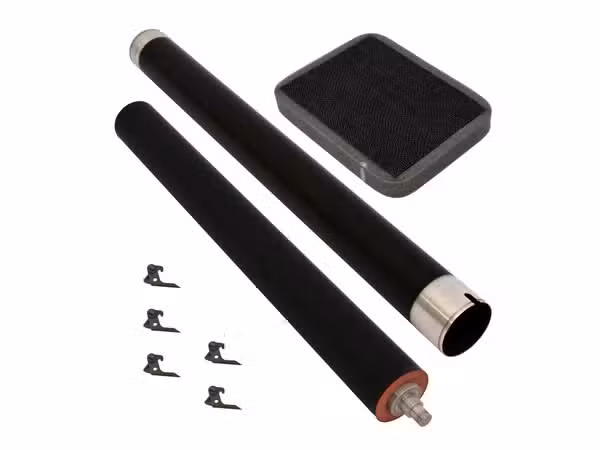

The Toshiba FR-KIT-3072 fuser kit is a complete rebuild pack for Toshiba e-STUDIO 207L, 257 and 307 monochrome multifunction devices. It carries part number 6LK25732000 and the FR-KIT-3072 designation. The pack ships as one service unit containing the heat roller, pressure roller, filter and five picker fingers.

The heat roller uses a PTFE-coated aluminium sleeve over a quartz lamp. The pressure roller applies the nip force that bonds toner to the sheet. Five picker fingers separate the printed page from the heat roller after fusing, which prevents wrap jams. A filter traps paper dust and toner particles inside the fuser housing.

Technicians replace these items when output shows repeat marks, gloss variation or fuser wrap jams. The pack also restores the correct nip width after the pressure roller has flattened with age. All parts fit the fuser frame without modification. The assembly suits the 30 ppm e-STUDIO 307 chassis and the related 207L and 257 models.

Order by the Toshiba part number because the FR-KIT-3072 code appears under both 6LK25732000 and 6LK25709000 in different catalogues. The packaging measures 415 x 130 x 95 mm and protects the coated rollers from contact damage. Store the pack flat and keep the roller surfaces free of oil before installation.

Key Features

• Complete Fuser Rebuild Pack
  The pack bundles the heat roller, pressure roller, filter and five picker fingers in a single service unit.

• Coated Heat Roller
  The PTFE-coated aluminium sleeve releases toner cleanly and resists surface wear across the fusing cycle.

• Pressure Roller and Picker Fingers

  • Pressure roller restores the correct fusing nip width
  • Five picker fingers separate the sheet from the heat roller
  • Both parts fit the original fuser frame without modification

• Fuser Air Filter
  The filter captures paper dust and airborne toner inside the fuser housing.

• Model-Specific Fitment
  The pack fits e-STUDIO 207L, 257 and 307 monochrome chassis.

• Cross-Referenced Part Numbers
  The pack ships under 6LK25732000 and is also listed as 6LK25709000 and FRKIT3072.

Specifications

What’s in the Box

• Heat roller

• Pressure roller

• Fuser filter

• Five picker fingers

Why Choose This Fuser Pack

• One pack covers all the wear items inside the fuser unit in a single service visit.

• Genuine Toshiba rollers match the original coating and nip specification.

• Five picker fingers reduce wrap jams after the fuser is rebuilt.

• Cross-referenced codes simplify stock checks against supplier catalogues.

• The compact carton protects the coated rollers during transport and storage.

• Replacing the full set together keeps fusing temperature and gloss consistent between service intervals.
