Toshiba OD-4530 Drum Assembly 150,000 Pages 6LH58311200

Photoconductor Unit for e-STUDIO Copiers

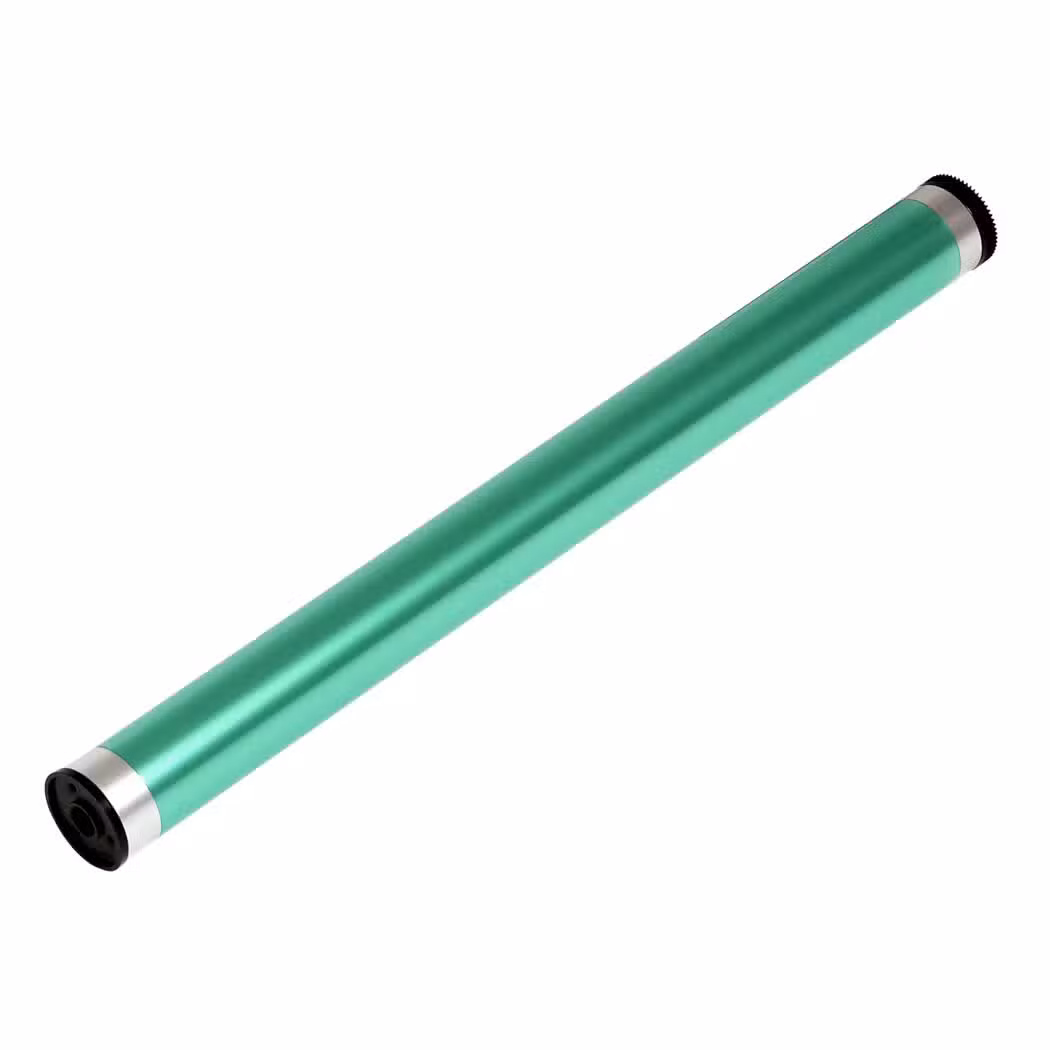

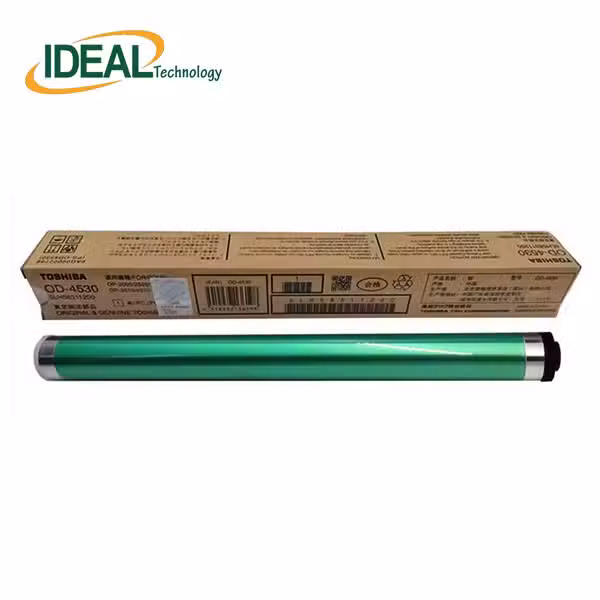

The Toshiba OD-4530 drum is a genuine photoconductor assembly rated for up to 150,000 pages at 5% coverage. It fits the e-STUDIO monochrome range from the 255 through the 507 series. Part number 6LH58311200 identifies the complete unit.

The module ships with the OPC drum cylinder, charge corona, cleaning blade and waste toner auger pre-fitted. Toshiba cross-references the assembly as OD4530, 6LH58311000 and 6LK28354000. Technicians replace the whole module instead of the drum cylinder alone, which restores charge uniformity in one step.

Supported machines include the e-STUDIO 2008A, 2508A, 3008A, 3508A, 4508A and 5008A families, plus the 255, 305, 355, 455 and 507 series. The unit slides into the photoconductor bay after the toner cartridge and developer unit come out. Expect print density to settle within the first few dozen sheets.

Store the sealed assembly flat and away from direct light. The OPC layer is sensitive to fingerprints, solvents and abrasive cloths, so handle the module by its frame only. Reset the drum counter from service mode after installation so the copier reports the correct remaining life.

Key Features

• Genuine Toshiba photoconductor
  The assembly carries Toshiba part 6LH58311200 and ships in original manufacturer packaging.

• 150,000-page rating
  Toshiba rates the OPC cylinder at up to 150,000 pages at 5% average coverage.

• Complete module replacement

  • OPC drum, corona and cleaning blade arrive pre-assembled.
  • Waste toner auger is integrated into the frame.

• Wide e-STUDIO coverage
  One part serves the 2008A through 5008A families and the 255 to 507 monochrome series.

• Cross-reference identification
  The unit also lists under OD4530, 6LH58311000 and 6LK28354000.

• Keyed bay fitment
  Guide rails align the module in the photoconductor bay without adjustment.

Specifications

What’s in the Box

• One OD-4530 photoconductor assembly

• Protective drum cover

• Installation leaflet

Why Choose This Photoconductor Unit

• The factory-built module restores charge stability without aligning a bare cylinder.

• A 150,000-page service interval reduces downtime on high-volume monochrome fleets.

• One part number covers machines from 20 ppm to 50 ppm within the same platform.

• Sealed packaging protects the OPC layer from light and humidity before fitting.

• Genuine Toshiba components keep background density and grey reproduction consistent.
