Toshiba FR-KIT-3008A Fuser Kit 6LK72103000

Fuser Maintenance Kit for e-STUDIO Monochrome MFPs

The Toshiba FR-KIT-3008A Fuser Kit is an OEM maintenance kit for the fusing unit on select e-STUDIO monochrome multifunction printers. It carries part number 6LK72103000 and ships as a single service pack. The kit restores fuser performance at the scheduled maintenance interval.

The pack contains one fuser roller, one pressure roller, five separation fingers for the fuser roller and one ozone filter. These parts wear together under heat and pressure. Replacing the full set avoids repeat strip-downs and keeps fusing temperature stable. The fuser roller carries the heating element; the pressure roller forms the nip against it.

Compatible chassis include the e-STUDIO 2008A, 2508A, 3008A and 3018A series. The kit also serves the 2518A variant. Toshiba lists the pack in the maintenance section of the service manual for those models. Technicians should confirm the engine model against the service manual parts list before ordering.

Installation requires removal of the fuser unit from the printer. Technicians release the fuser cover, disconnect the harness connectors and lift the unit free. The old rollers slide out of their bearings; the new rollers seat in the same journals. Separation fingers clip onto the fuser frame in five positions. The ozone filter fits into its slot on the fuser housing.

Worn fuser rollers cause gloss variation, cold offset and paper curl. A glazed pressure roller produces uneven nip pressure and creased output. Cracked separation fingers let paper wrap around the hot roller. The kit addresses all four failure modes in one service visit.

Follow the service manual torque values when refitting the fuser unit. Run a fuser calibration from service mode after installation. Print a test page and check for gloss consistency and edge curl. Reset the fuser counter through the service menu so the next maintenance alert triggers at the correct interval.

Store the kit sealed until the service visit. Keep the rollers free of grease and fingerprints during handling. Contamination on the roller surface transfers to the paper path and marks output. Wear lint-free gloves during the swap. Dispose of the old rollers and filter through the normal consumable waste channel.

Key Features

• Complete OEM Fuser Kit
  Ships with fuser roller, pressure roller, five separation fingers and ozone filter.

• Genuine Toshiba Part Number
  Carries code 6LK72103000 and the FR-KIT-3008A designation.

• Model Compatibility

  • e-STUDIO 2008A and 2508A
  • e-STUDIO 3008A and 3018A
  • e-STUDIO 2518A variant

• Five Separation Fingers
  The kit covers every finger position on the fuser frame.

• Ozone Filter Included
  The filter renews air treatment inside the fuser housing.

• Single Service Pack
  One part number covers the full fuser rebuild for stock control.

• Service Manual Reference
  Listed in the maintenance section of the e-STUDIO service documentation.

Specifications

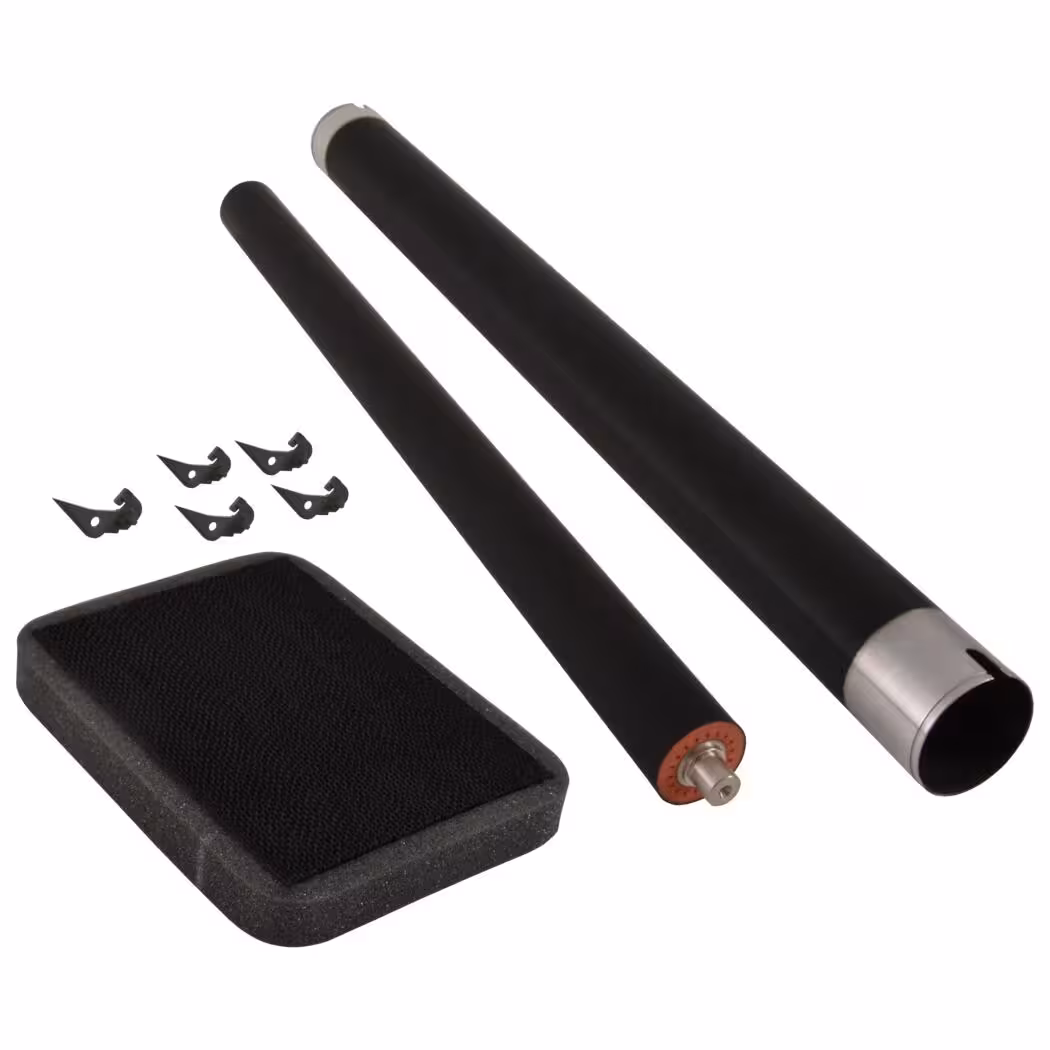

What’s in the Box

• 1 x fuser roller

• 1 x pressure roller

• 5 x separation fingers for fuser roller

• 1 x ozone filter

Why Choose the FR-KIT-3008A

• The full kit covers every wear part in the fusing unit in one order.

• OEM dimensions and materials match the original fuser build.

• Replacing all wear parts together cuts repeat service calls.

• A single part number simplifies spare-parts stock and reordering.
