Toshiba F0-01868000 Bearing 6882RSSH44M 8x16x5mm for e-STUDIO

Sealed Ball Bearing for Toshiba Copier Drives

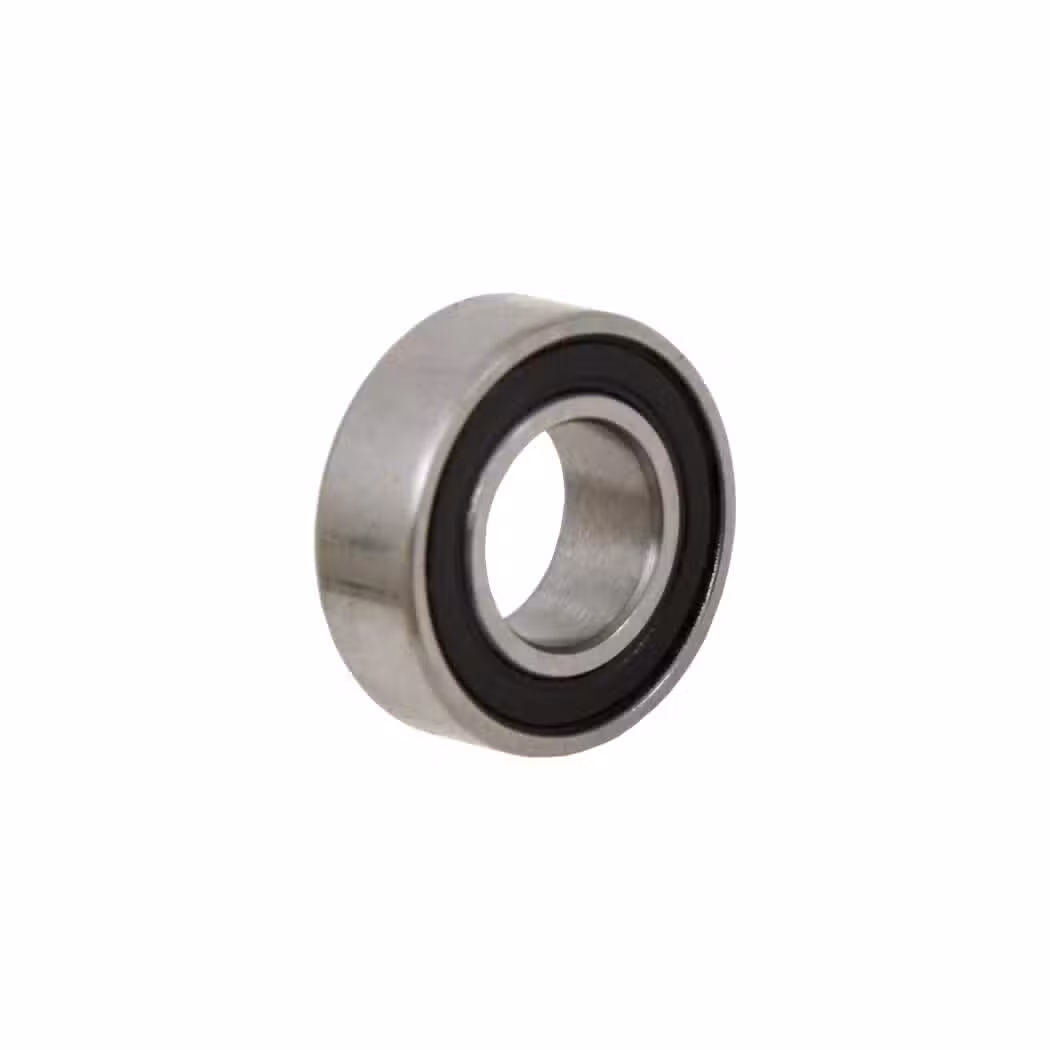

The Toshiba F0-01868000 bearing is a sealed deep groove ball bearing used in Toshiba e-STUDIO copier drive and developer assemblies. The part cross-references to 6882RSSH44M. It measures 8 mm bore, 16 mm outer diameter and 5 mm width. Two rubber seals retain factory grease and block toner dust.

The double-sealed design suits the dusty interior of a copier. Rubber lips keep toner particles out of the raceway and hold lithium grease inside. Chrome steel rings and balls carry radial loads from drive gears and rollers. The bearing runs quietly at copier shaft speeds and tolerates the small misalignment common in moulded housings.

Compatibility covers the e-STUDIO 2010AC, 2040C, 5540C, 3555C and related colour series. Technicians find the bearing in developer drive sections, fuser drive trains and paper transport rollers. Confirm the parts catalogue for the exact chassis before ordering, because Toshiba uses several bearing sizes across model years.

Press the bearing squarely into its housing bore and support the inner ring during fitment. Do not strike the seals or the cage. A bearing that binds after installation usually sits at an angle in the bore. Replace any worn shaft or housing before fitting a new bearing, because play will destroy the seals within a few thousand prints.

Store spare bearings in their original packaging until use. Keep them away from moisture and grit. Do not wash sealed bearings in solvent, because the process removes the factory grease. A dry wipe on the outer ring is enough before installation.

Key Features

• Deep Groove Geometry
  The raceway accepts radial and light axial loads from copier drive shafts.

• Dual Rubber Seals

  • Seals block toner dust from the ball path.
  • Factory grease stays inside the raceway for life.

• 8 x 16 x 5 mm Envelope
  The bore, outer diameter and width match the original Toshiba fitment.

• Chrome Steel Construction
  Rings and balls resist wear under continuous rotation.

• Press-Fit Housing Interface
  The outer ring seats in moulded or machined bores without adapters.

• Cross-Reference 6882RSSH44M
  The alternate code lets technicians match the part against older stock labels.

Specifications

What’s in the Box

• One F0-01868000 sealed ball bearing

Why Choose This Bearing

• The sealed raceway survives toner dust that destroys open bearings.

• The 8 x 16 x 5 mm size matches the original housing bore.

• Chrome steel rings carry drive loads without visible deformation.

• The cross-reference code simplifies matching against older parts lists.

• A single bearing restores drive rotation during routine service.
