Toshiba Developer Seal 4401949290 SEAL-VC6-10-2.5 for e-STUDIO Copiers
Original price was: KSh 500.00.KSh 400.00Current price is: KSh 400.00. ex VAT
Toshiba Developer Seal 4401949290 SEAL-VC6-10-2.5 for e-STUDIO Copiers
| Part number | 4401949290 |
| Seal code | SEAL-VC6-10-2.5 |
| Seal type | Radial shaft seal, single lip |
| Inner diameter | 6 mm |
| Outer diameter | 10 mm |
| Section width | 2.5 mm |
| Quantity per developer unit | 4 |
| Cross reference | 4402309380 |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

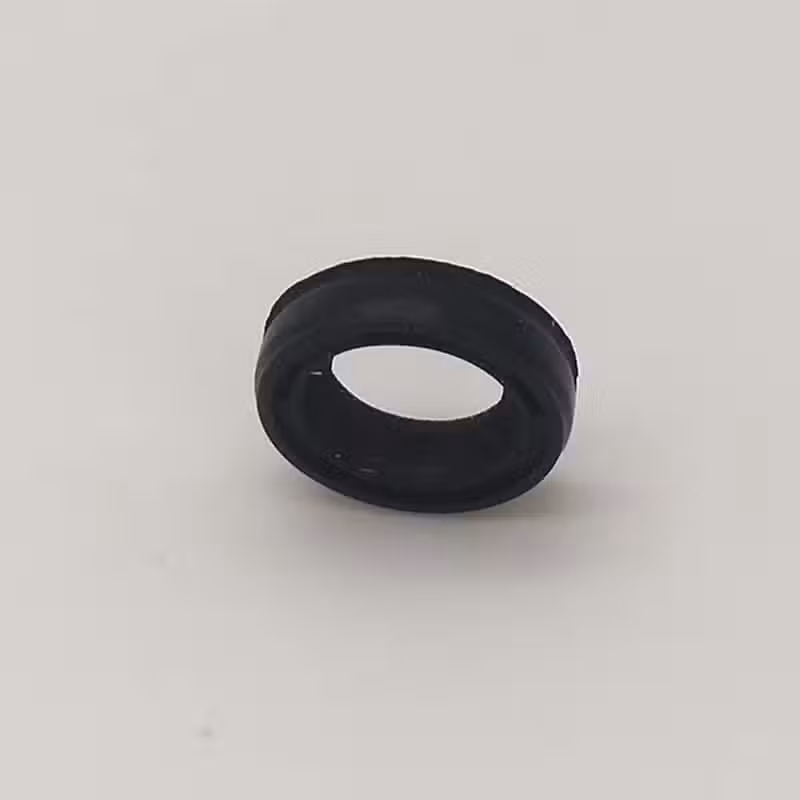

Rotary Shaft Seal for e-STUDIO Developer Units
The Toshiba developer seal is a rotary shaft seal that fits e-STUDIO developer housings, identified by part number 4401949290 and the SEAL-VC6-10-2.5 code. It retains toner at the shaft exit point and blocks carrier dust from escaping the unit.
The seal measures 6 mm inside diameter, 10 mm outside diameter and 2.5 mm section width. An elastomer lip runs against the developer shaft, and the outer casing presses into the housing bore. The VC designation marks a standard radial shaft seal with a single sealing lip.
Fit the seal square in the bore and lubricate the lip before sliding the shaft through. A worn seal leaks toner onto the developer frame and causes background contamination on prints. Replace the full set during a developer rebuild rather than one seal at a time.
Key Features
Exact 4401949290 Part Number
The seal matches the Toshiba parts listing for the developer station on listed e-STUDIO models.SEAL-VC6-10-2.5 Geometry
A 6 mm bore, 10 mm outer diameter and 2.5 mm width fit the machined seal seat.Radial Lip Construction
- Elastomer lip contacts the rotating developer shaft
- Outer casing holds a press fit in the housing bore
Toner Containment
The lip stops fine toner from migrating along the shaft into the drive assembly.Developer Rebuild Component
Four seals sit in a developer unit, so order a set for a full rebuild.Cross-Reference Coverage
The part also lists under Lanier reference 4402309380 for the same seal position.
Specifications
| Feature | Specification |
|---|---|
| Part number | 4401949290 |
| Seal code | SEAL-VC6-10-2.5 |
| Seal type | Radial shaft seal, single lip |
| Inner diameter | 6 mm |
| Outer diameter | 10 mm |
| Section width | 2.5 mm |
| Sealing element | Elastomer lip |
| Mounting | Press fit into housing bore |
| Quantity per developer unit | 4 |
| Cross reference | 4402309380 (Lanier listing) |
| Function | Toner retention at developer shaft |
| Compatible series | e-STUDIO 163, 182, 200L, 202L, 205L, 207, 2505, 2006, 2007, 2500C, 3500C, 3510C, 3511, 5018A, 5055CSE, 5540C, 5560, 6560, DP4580, DP5570 |
| Packaging | Sold individually |
| Origin | Japan |

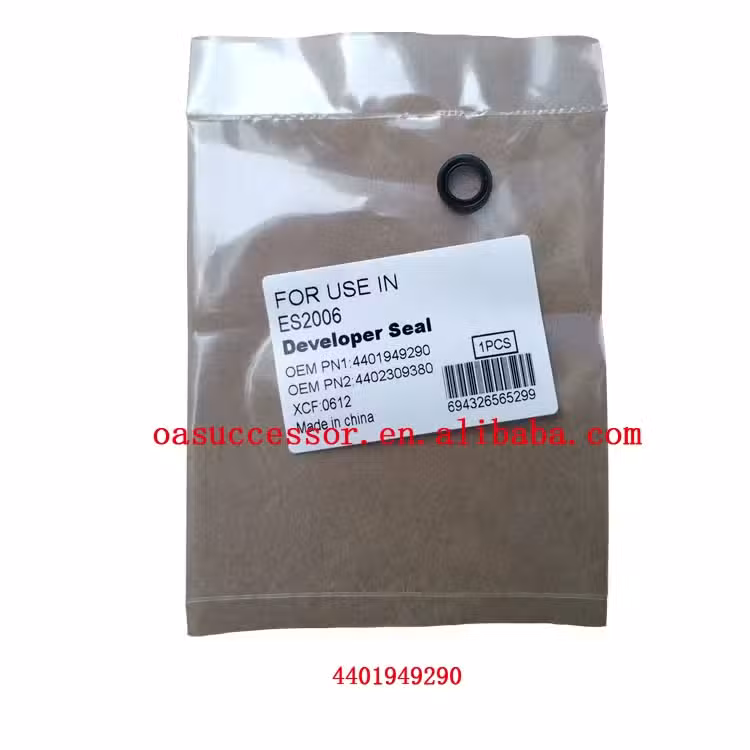

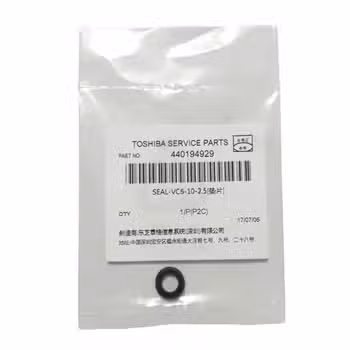

What’s in the Box
One 4401949290 SEAL-VC6-10-2.5 seal
Why Choose This Developer Seal
The published part number removes guesswork when matching a leaking developer station.
The 6 x 10 x 2.5 mm envelope fits the original bore without machining.
A fresh lip restores toner containment and reduces background soiling on output.
Ordering four covers a complete developer unit rebuild in one pass.
The cross reference helps procurement match stock against Lanier parts lists.
