Toshiba DEV-UNIT-2809 Developer Unit 6LJ76601000 for e-STUDIO 2006 2809A

Black Developer Assembly for e-STUDIO Mono Copiers

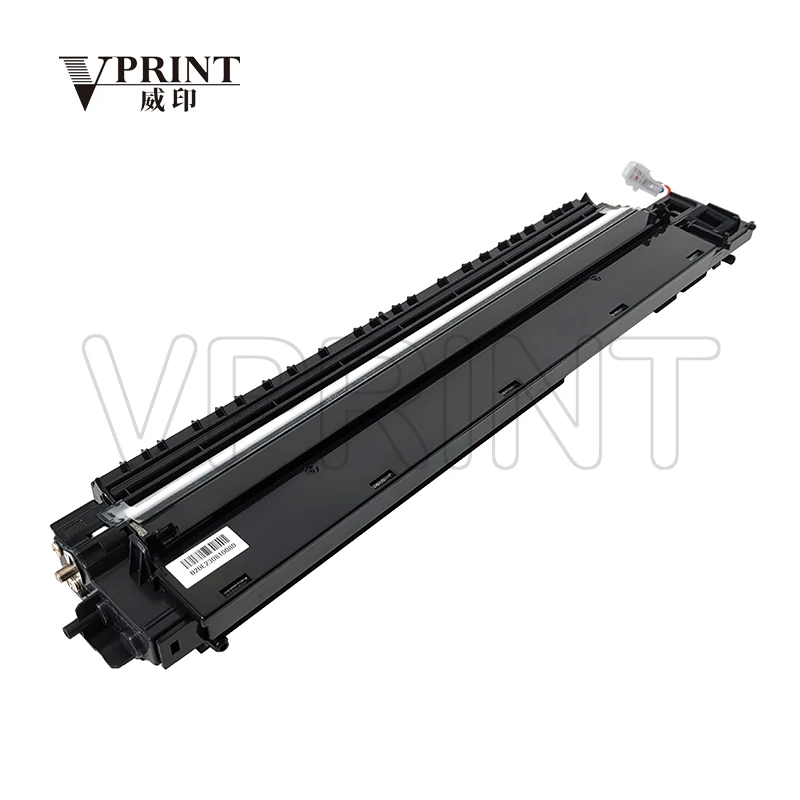

The Toshiba DEV-UNIT-2809 developer is the black developer assembly for Toshiba e-STUDIO mono multifunction printers. Toshiba lists the part as 6LJ76601000 under the code DEV-UNIT-2809. The unit carries the developer mix and the magnetic metering roller in one housing.

The developer station meters toner onto the magnetic roller before the image transfers to the drum. A doctor blade sets the toner film thickness, and the bias voltage holds the mix on the sleeve. The sealed housing contains the developer during transport and disposal. Toshiba does not publish a page yield for this unit; the machine tracks developer life through its service counter.

Fitment covers the e-STUDIO 2006, 2007, 2303, 2306, 2307, 2309, 2323, 2329, 2506, 2507, 2523, 2802, 2803, 2809, 2822, 2823 and 2829. Confirm the model plate against the parts list before ordering. The service manual lists the removal order for each chassis, and the developer unit sits behind the drum and toner cartridge.

Installers remove the toner cartridge and the drum unit first, then release the developer housing from its rails. Guide pins align the new unit on the frame, and one lever locks it in place. No manual bias or gap adjustment is required after fitting, because the machine reads the unit on power-up. Reset the developer counter through service mode after replacement.

Key Features

• Black Developer Assembly
  The housing carries the developer mix and the magnetic metering roller in one sealed unit.

• Metering Roller Control

  • Doctor blade regulates toner film on the magnetic sleeve
  • Bias voltage holds the developer mix in place
  • Even toner laydown across the full page width

• Sealed Developer Path
  The housing contains the mix during transport and removal, which keeps the service area clean.

• Guide-Pin Mounting
  Alignment pins seat the unit on the frame, and one lever locks it without a gap-setting step.

• Model Coverage

  • e-STUDIO 2006, 2007, 2303, 2306, 2307
  • e-STUDIO 2309, 2323, 2329, 2506, 2507
  • e-STUDIO 2523, 2802, 2803, 2809, 2822, 2823, 2829

• Service Counter Reset
  The machine tracks developer life, and technicians reset the counter in service mode after fitting.

Specifications

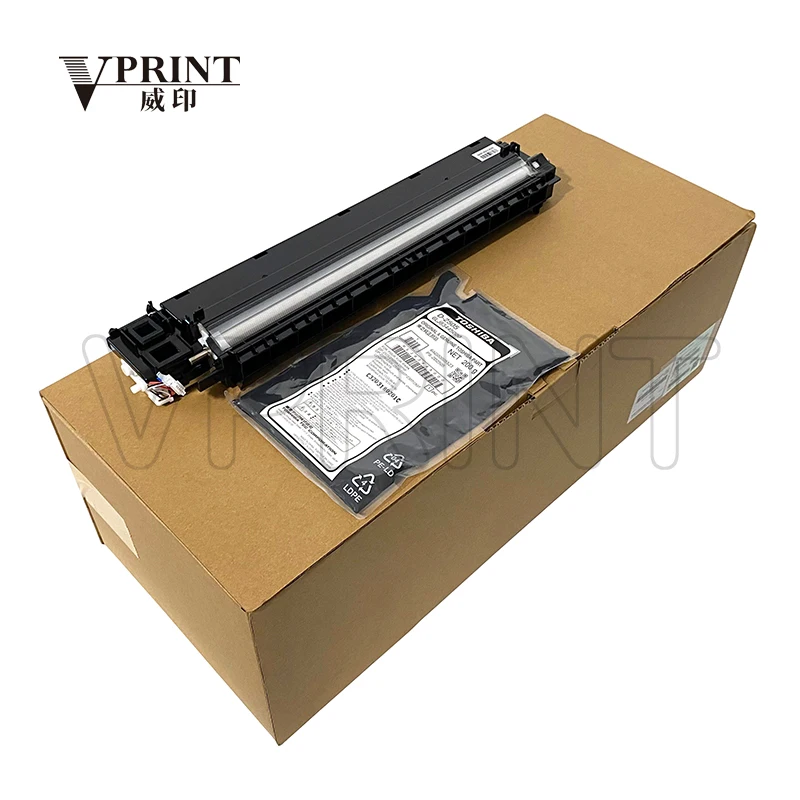

What’s in the Box

• One DEV-UNIT-2809 black developer unit, 6LJ76601000

• Protective packaging

Why Choose the DEV-UNIT-2809

• A dedicated developer unit restores black density without replacing the drum or fuser.

• One part number covers seventeen e-STUDIO models and reduces spares line items.

• Guide-pin seating and a single locking lever remove gap-setting steps from the call.

• Sealed developer handling keeps the service area clean during removal and disposal.

• Genuine Toshiba developer mix keeps charge behaviour within design tolerance.
