Toshiba BUSH-6X12X4-671 Developer Bushing 6LJ54048000
Original price was: KSh 179.00.KSh 154.00Current price is: KSh 154.00. ex VAT
Toshiba BUSH-6X12X4-671 Developer Bushing 6LJ54048000
| Part number | 6LJ54048000 |
| Model code | BUSH-6X12X4-671 |
| Dimensions | 6 mm ID x 12 mm OD x 4 mm width |
| Material | Low-friction polymer |
| Function | Developer roller shaft support |
| Pack quantity | 1 bushing |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

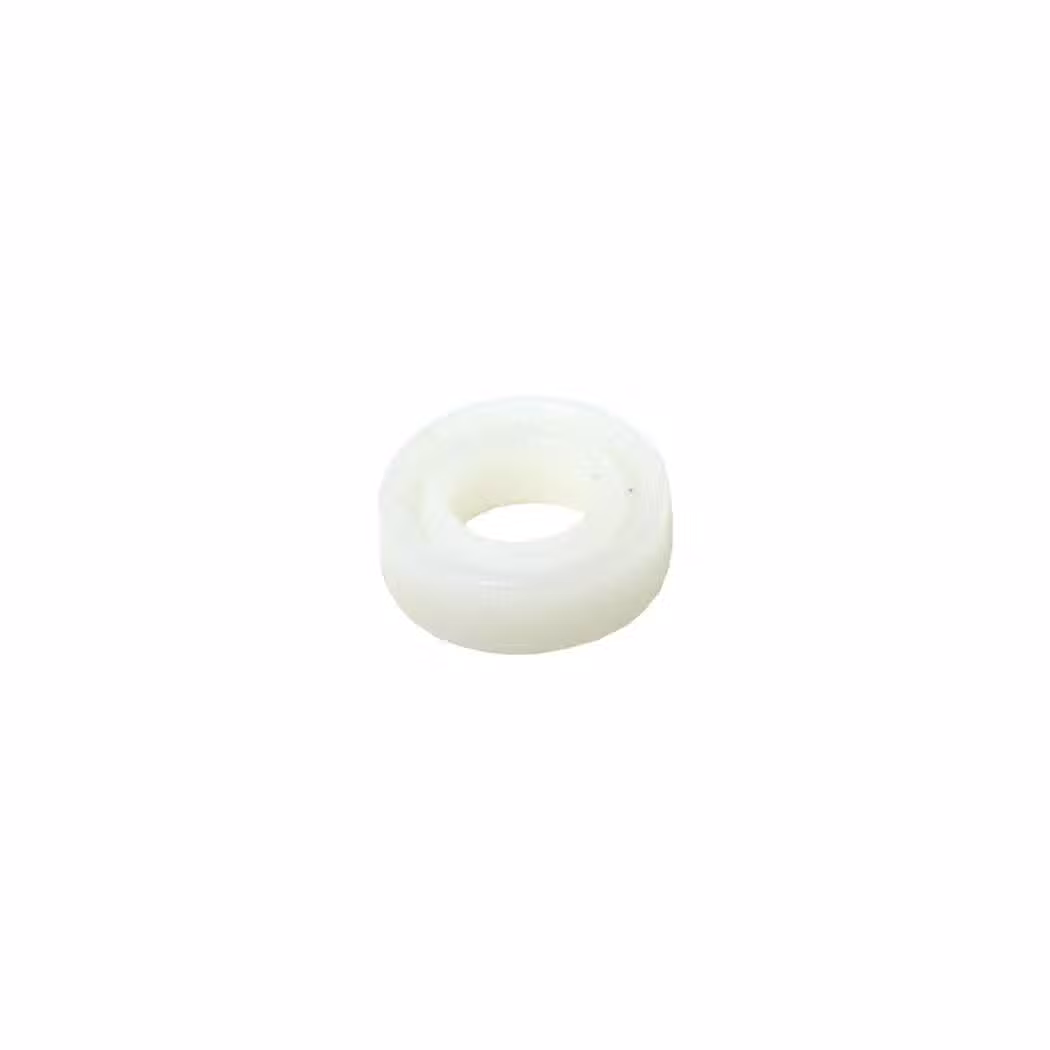

Developer Unit Bushing for e-STUDIO Copiers
The Toshiba developer bushing is a 6 x 12 x 4 mm sleeve that seats the developer roller shaft in compatible e-STUDIO machines. Toshiba codes the part as BUSH-6X12X4-671 and 6LJ54048000. It limits radial play and keeps the roller aligned against the doctor blade.
The bushing uses a low-friction polymer that tolerates continuous rotation inside the developer housing. A flanged profile sets axial position, so the roller cannot walk toward the front or rear frame. The 12 mm outer diameter presses into the housing bore, while the 6 mm inner bore rides on the shaft.
Technicians replace the bushing when the developer roller shows end play or uneven toner laydown. Remove the developer unit, release the roller retainers, and press the old sleeve out. Seat the new part square in the bore and confirm the shaft turns freely before refitting the unit.
Inspect the housing bore for scoring before installation. A worn bore will loosen the new sleeve within a few thousand prints. Clean the bore with a lint-free cloth and avoid grease on the polymer surface. The bushing runs dry and needs no lubrication.
Key Features
Precision Bore Fit
The 6 mm inner diameter matches the developer roller shaft without measurable play.Flanged Axial Location
- The flange stops the sleeve from drifting into the housing.
- Sets the roller position relative to the doctor blade.
Low-Friction Polymer
The sleeve runs dry and resists wear under continuous rotation.Press-In Installation
The 12 mm outer diameter presses into the developer housing bore.Model Fitment
Fits selected Toshiba e-STUDIO colour and mono copiers listed in the service parts catalogue.
Specifications
| Feature | Specification |
|---|---|
| Part number | 6LJ54048000 |
| Model code | BUSH-6X12X4-671 |
| Dimensions | 6 mm ID x 12 mm OD x 4 mm width |
| Material | Low-friction polymer |
| Profile | Flanged sleeve |
| Lubrication | Dry running, no grease |
| Function | Developer roller shaft support |
| Fitment | Toshiba e-STUDIO developer units |
| Pack quantity | 1 bushing |
| Installation method | Press fit into housing bore |
What’s in the Box
One 6 x 12 x 4 mm developer bushing
Why Choose This Sleeve
The flanged design fixes roller position without shims or retainers.
Dry-running polymer avoids grease migration into the developer powder.
The 6 mm bore matches the shaft diameter to control radial runout.
A single sleeve restores developer unit alignment during routine service.
