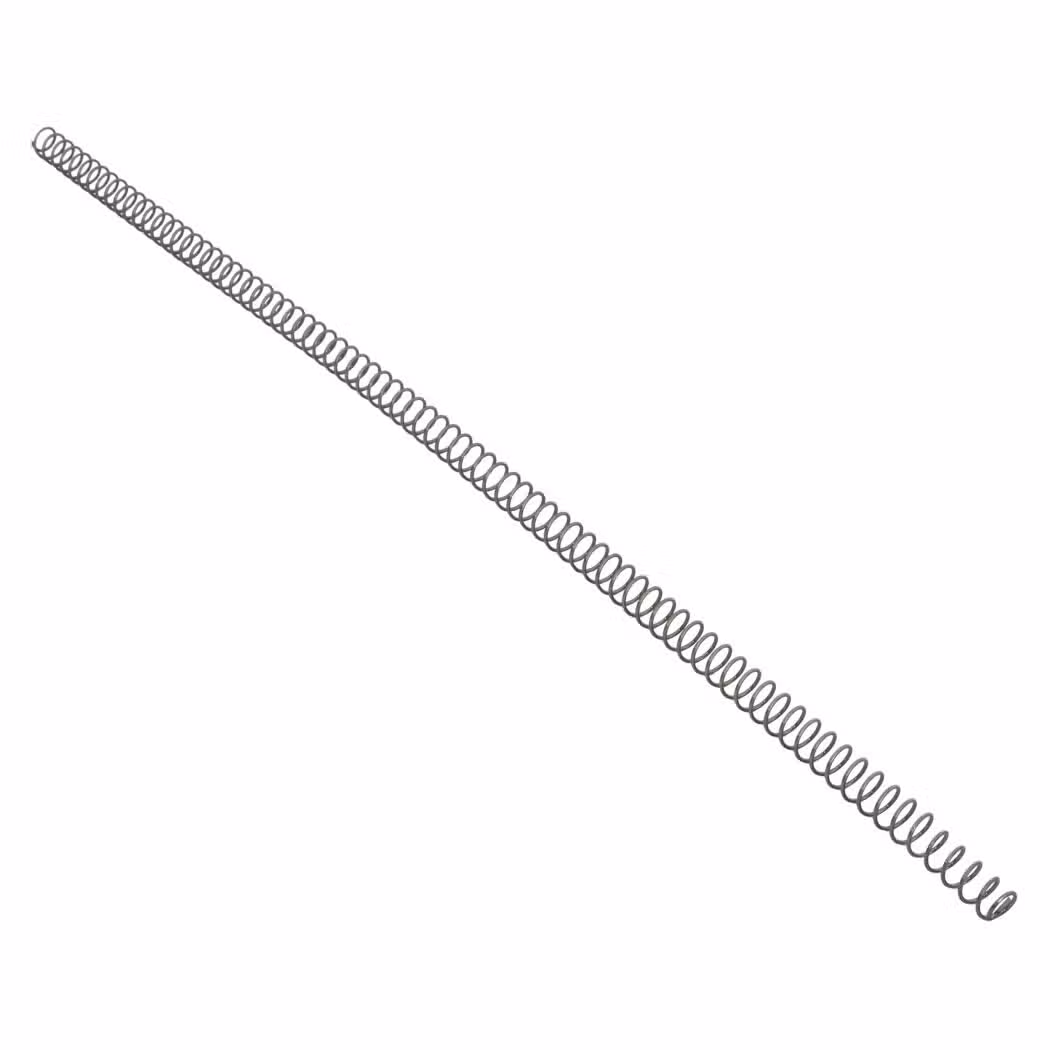

Toshiba 6LJ54003000 Auger Spring SPG-AUGER-8-5_5-H21X for e-STUDIO Copiers

Drum Cleaner Auger Coil

The Toshiba auger spring is a coil spring that fits the cleaner auger shaft inside the drum cleaning unit of compatible e-STUDIO machines. It holds axial tension on the auger so the spiral stays seated against the drive coupling. Toshiba lists the part under number 6LJ54003000 with the code SPG-AUGER-8-5_5-H21X.

The spring works with the rear auger bush 6LJ54001000 and the cleaner auger nozzle 6LJ54014100 in the same H21X assembly. A compressed coil takes up end float on the shaft and keeps the auger flight in contact with the waste toner path. The part sits inside the cleaner case 6LJ54033000, next to the recovery blade 6LJ54029000.

Fit a new coil when the old spring loses tension, rattles or lets the auger drift out of mesh. The drum cleaning unit on these models also carries the drum shutter spring 6LJ54040000. Order the coil by part number before stripping the cleaner, since the H21X code covers several assemblies. Inspect the bush and nozzle at the same time and replace worn parts together.

Key Features

• Genuine Toshiba Part Number
  The 6LJ54003000 number matches the Toshiba parts listing for the H21X cleaner section.

• Coil Tension on Auger Shaft
  The compression coil removes end float and keeps the auger flight engaged with the drive.

• H21X Cleaner Assembly Fit

  • Seats against the rear auger bush 6LJ54001000
  • Runs with the cleaner auger nozzle 6LJ54014100

• Spring Steel Construction
  The coil holds tension through repeated compression cycles inside the cleaning unit.

• Direct Drop-In Replacement
  The spring slides onto the auger shaft without modification to the housing.

• Broad Model Coverage
  One coil serves the 2505AC through 5015AC colour series and matching chassis variants.

Specifications

What’s in the Box

• One 6LJ54003000 SPG-AUGER-8-5_5-H21X coil spring

Why Choose This Cleaner Coil

• The printed part number removes doubt when matching a spring to a stripped cleaner unit.

• A fresh coil restores shaft preload and stops the auger from walking out of the coupling.

• The spring steel winding resists set under the continuous compression of daily output.

• Ordering alongside the bush and nozzle covers a full cleaner rebuild in one pass.

• The H21X code cross-references across the AC colour range for simpler stock holding.
