Toshiba 6LJ60501000 ATC Sensor for e-STUDIO 2555 3055 3555 4555 5055 Series

Auto Toner Control Sensor for e-STUDIO Copiers

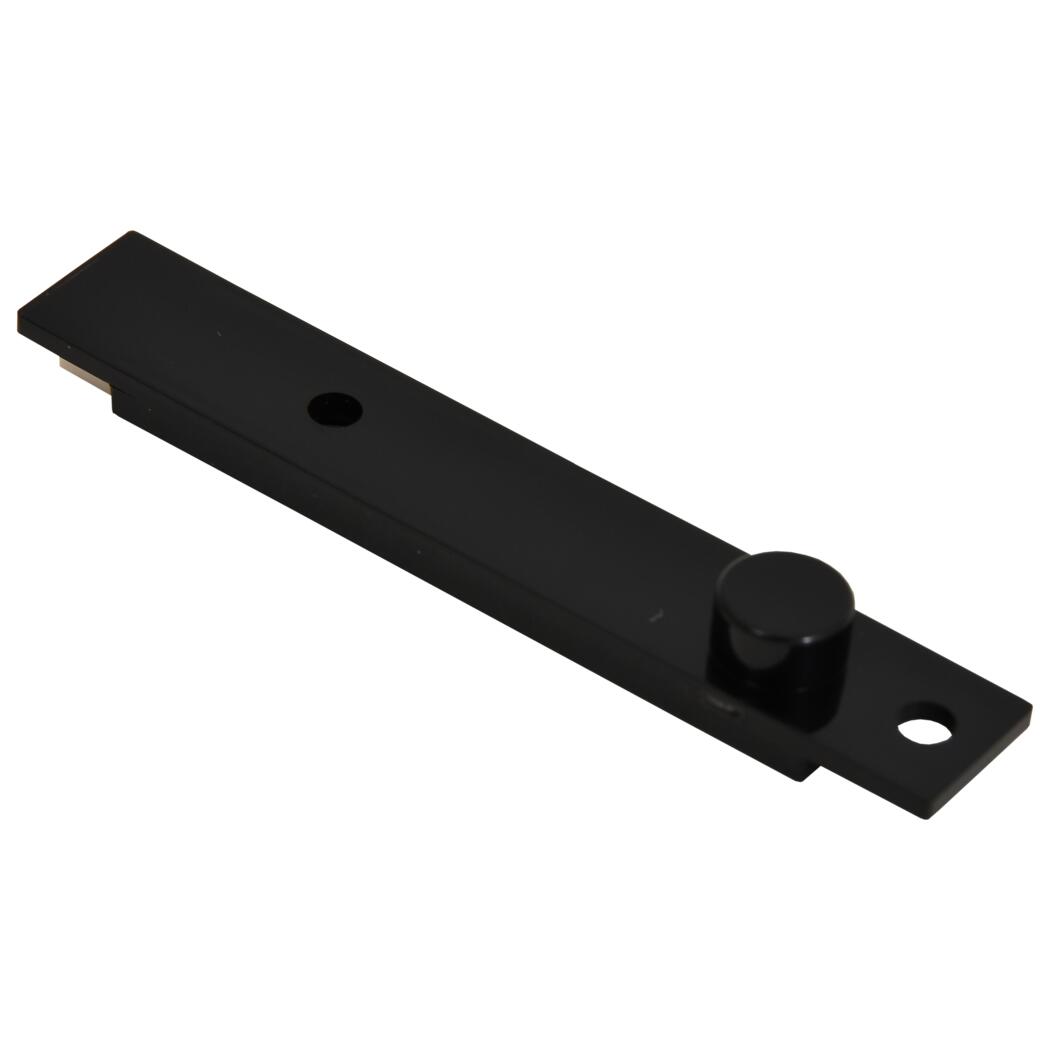

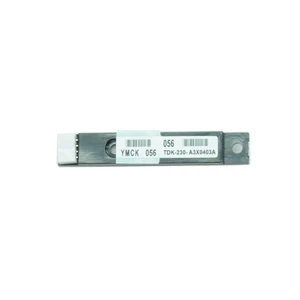

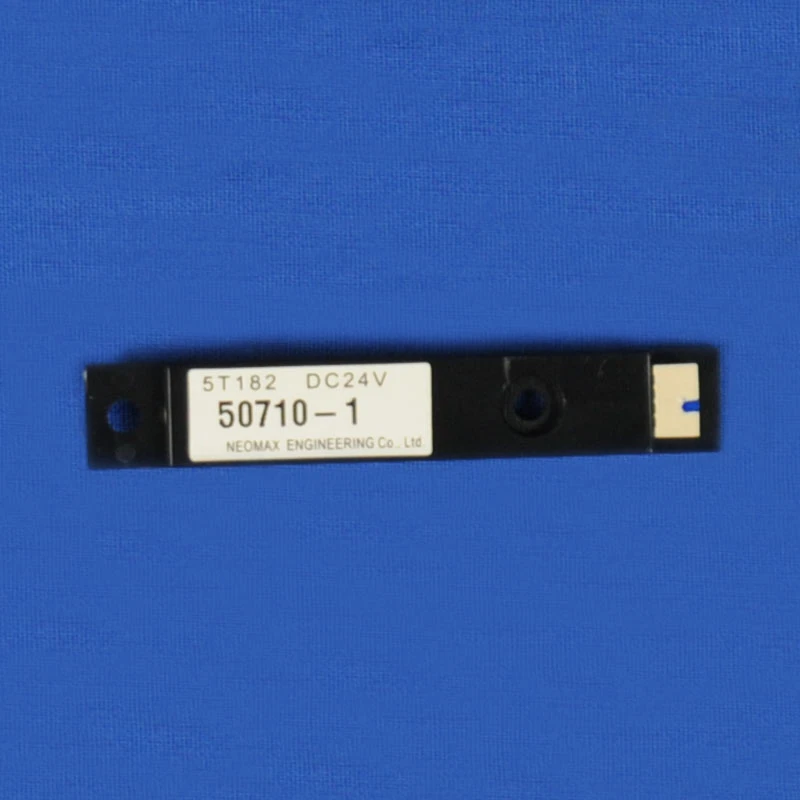

The Toshiba ATC sensor 6LJ60501000 measures toner concentration in the developer unit of e-STUDIO 2555C, 3055C, 3555C, 4555C and 5055C machines. It reports the toner-to-carrier ratio to the main board, which then controls toner supply from the cartridge. A contaminated or failed sensor causes faded prints, background shading and toner scatter.

The sensor mounts inside the developer unit and connects to the harness with a small plug. It works on the magnetic permeability principle: the coil inside the sensor detects changes in the carrier concentration as toner is consumed. The control board compares the reading against the target value stored in firmware and adjusts the supply motor duty cycle.

Replace the sensor when the copier logs an ATC error or when density control drifts outside the service range. Remove the developer unit, release the retaining clip and unplug the harness. Clean the sensor face with a dry lint-free swab before fitting the new part. Do not touch the sensing surface with bare fingers, because skin oils alter the magnetic reading.

After installation, run the automatic toner density setup from the service menu. The machine performs an initialisation cycle and stores a fresh reference value. Print a test pattern at mid-density and check for even coverage across the page. Repeat the setup if the density drifts or the error code returns. Keep the old sensor as a known-good spare only if it passes a bench test.

Compatibility covers the e-STUDIO2555C, 3055C, 3555C, 4555C and 5055C, plus the CSE variants of those models. Confirm the model code on the machine rating plate before ordering, because earlier e-STUDIO generations use a different ATC sensor. Store the replacement in its sealed bag until installation to protect the coil from dust and moisture.

Key Features

• Auto Toner Control Function
  The sensor reports toner concentration to the main board for closed-loop toner supply.

• Magnetic Permeability Sensing
  An internal coil detects carrier concentration changes as toner is consumed.

• Plug-In Harness Connection

  • Small connector plugs into the developer unit harness
  • Retaining clip secures the sensor body
  • No soldering or wire splicing required

• Service-Menu Calibration
  The copier runs an automatic density setup after replacement and stores a reference value.

• e-STUDIO 2555-5055 Compatibility
  The part fits the 2555C, 3055C, 3555C, 4555C and 5055C families, including CSE variants.

• Sealed Packaging
  The sensor ships in a protective bag to keep the coil free of dust before fitting.

Specifications

What’s in the Box

• 6LJ60501000 ATC sensor

• Protective packaging

Why Choose This ATC Sensor

• Restores closed-loop toner control and clears density-related error codes.

• The plug-in connector simplifies replacement during a service call.

• Sealed packaging protects the coil from dust before installation.

• Service-menu calibration confirms the new reference value after fitting.

• Model-specific fitment avoids incorrect parts on earlier e-STUDIO generations.

• Magnetic sensing stays stable across temperature swings inside the developer unit.
