Toshiba 6LJ56863000 Pickup Roller ASYS-ROL-CST-H21X for e-STUDIO 2000AC 2500AC Copiers

Cassette Feed Roller Assembly

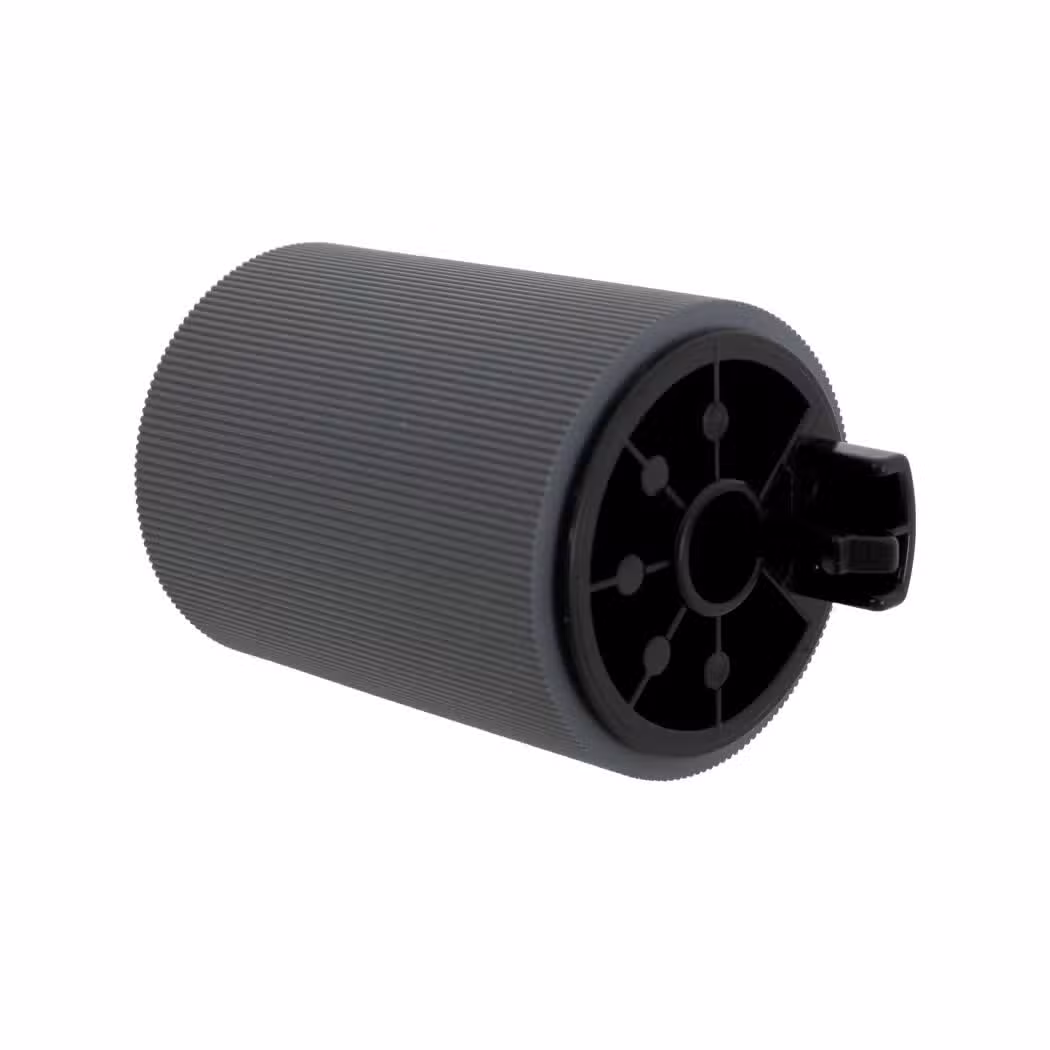

The Toshiba pickup roller is the feed assembly that lifts sheets from the paper cassette and hands them to the registration path on compatible e-STUDIO machines. Toshiba lists the part as 6LJ56863000 with the assembly code ASYS-ROL-CST-H21X. It sits in the cassette unit, below the separation sheet 6LJ66823000.

The assembly carries a rubber feed tyre on a driven shaft with a one-way clutch hub. The tyre grips the top sheet and rotates only in the feed direction, so multifeeds drop back into the stack. The shaft ends seat in the cassette frame and pick up drive from the tray lift motor through a gear train.

Worn tyres glaze over and lose grip, which shows up as misfeeds, skew and jam codes at the cassette. Replace the assembly when the tyre surface hardens or the clutch slips under load. The H21X code covers several tray variants, so confirm the part number against the model parts list before ordering.

Key Features

• Genuine Toshiba Part Number
  The 6LJ56863000 number matches the Toshiba parts listing for the cassette feed position.

• ASYS-ROL-CST-H21X Assembly Code

  • Covers the cassette roller assembly across the H21X platform
  • Cross-references against the tray parts breakdown

• Rubber Feed Tyre
  The tyre compound grips plain and recycled stock without marking the lead edge.

• One-Way Clutch Hub
  The hub drives in the feed direction only and blocks reverse rotation during multifeed recovery.

• Direct Shaft Fitment
  The roller slides onto the cassette shaft and locates in the original frame bearings.

• Service Replacement Item
  Treat the unit as a wear part and inspect the tyre at each preventive maintenance visit.

Specifications

What’s in the Box

• One 6LJ56863000 pickup roller assembly

Why Choose This Feed Assembly

• The published part number removes guesswork when a tray starts misfeeding mid-volume.

• A fresh tyre restores grip on recycled and pre-printed stock that glazed rollers handle poorly.

• The clutch hub prevents reverse drag and cuts double-feed jams at the cassette.

• Shaft-end fitment means no bracket modification during the swap.

• The 80,000-sheet reference helps planners schedule replacement ahead of failure.

• Ordering by code keeps spares stock aligned with the tray parts breakdown.
