Toshiba 6LJ56859000 Cassette Drive Shaft Bushing BUSH-DRV-CST-H21X_L

Lower Cassette Feed Shaft Guide

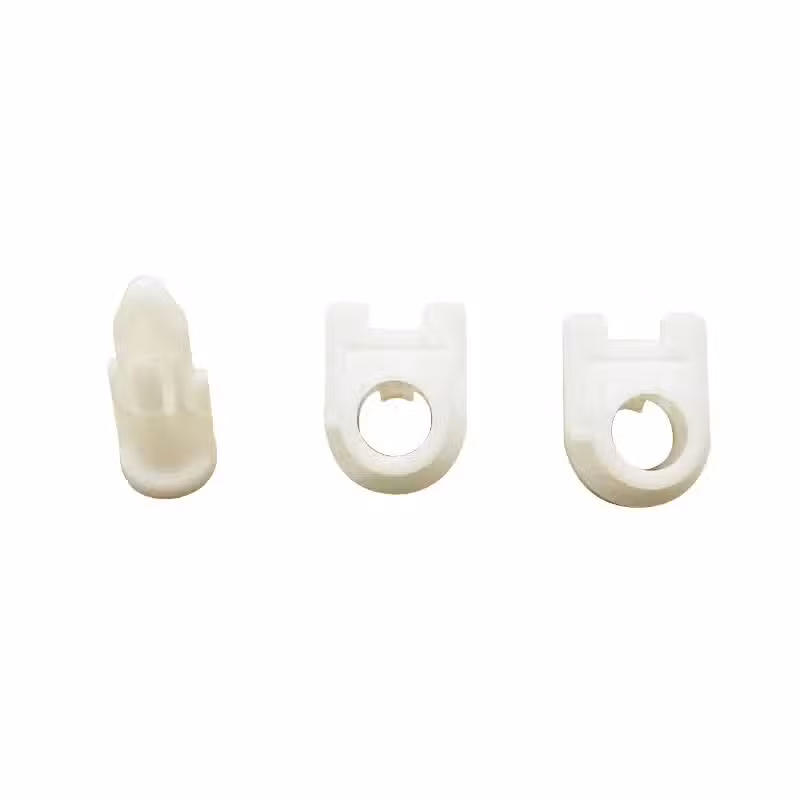

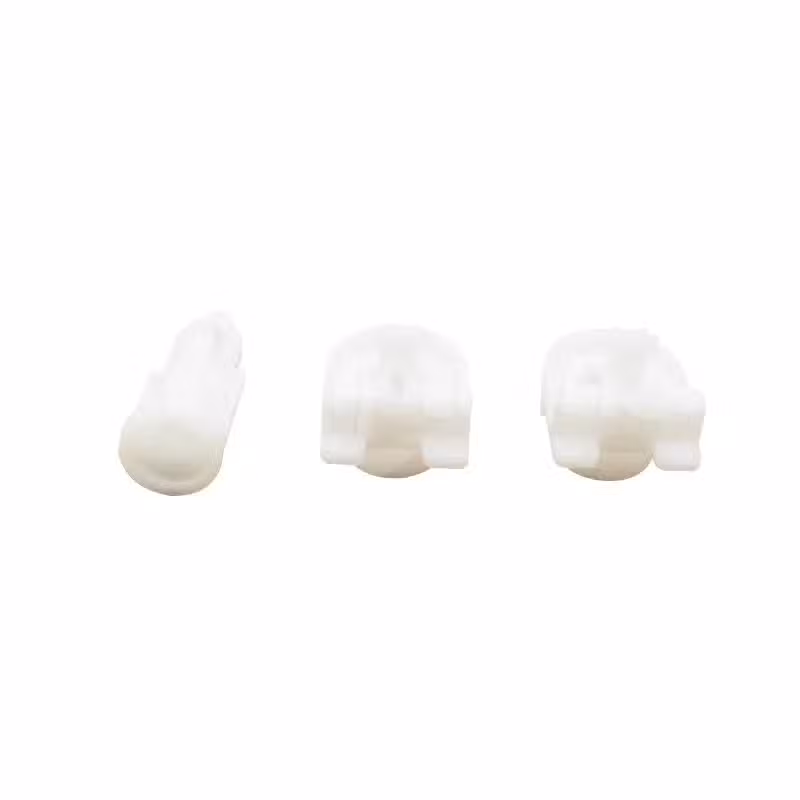

The Toshiba 6LJ56859000 bushing guides the paper feed drive shaft in the lower cassette of e-STUDIO machines. Toshiba codes the part BUSH-DRV-CST-H21X_L. The moulded sleeve seats the shaft end and holds it concentric with the drive gear.

A worn sleeve lets the shaft run off-centre. The cassette then lifts sheets unevenly, and misfeeds show up at the pickup roller. Replacing the guide restores shaft alignment without swapping the whole feed assembly.

Fit the part with the cassette drawn out of the machine. Press the bushing into its seat, slide the shaft through, then check that the gear meshes without lateral play. The Toshiba parts list shows the position for each model.

Inspect the sleeve when a tray starts skewing sheets or double-feeding from the lower cassette. Shaft float also produces a rhythmic click as the drive gear rocks against the frame. An oval bore or polished wear marks confirm the fault.

The moulded polymer sleeve carries shaft load across its full bore length. Fitment needs no bearing press, and the part seats under thumb pressure. One bushing per pack covers a single cassette position. Order the opposite side as well when both seats show wear.

Key Features

• Moulded Shaft Guide
  The sleeve holds the feed shaft end on centre so the drive gear keeps a clean mesh.

• Cassette Drive Fitment

  • Seats in the lower cassette feed frame
  • Locates the paper feed drive shaft
  • Carries shaft load through the moulded wall

• Wear Correction
  A fresh guide removes the shaft float that causes skewed pickup and repeat jams.

• Seated by Hand
  The bushing presses into its recess without a bearing press or heat.

• Model Coverage

  • Listed for e-STUDIO 2505, 2006 and 2007
  • Quoted against the lower cassette drive group
  • Confirm the position against the model parts list

• Service Kit Part
  One bushing per pack suits cassette overhaul and jam-recovery callouts.

Specifications

What’s in the Box

• One cassette drive shaft bushing, 6LJ56859000

Why Choose the 6LJ56859000

• A worn cassette shaft sleeve shows up as intermittent pickup, not as a clean fault code.

• Replacing the guide costs one part instead of a complete cassette feed assembly.

• The sleeve presses in by hand, so the cassette returns to service inside one visit.

• Restoring shaft concentricity cuts gear wear on the drive train.

• Genuine Toshiba moulding keeps the bore tolerance within the feed frame design.
