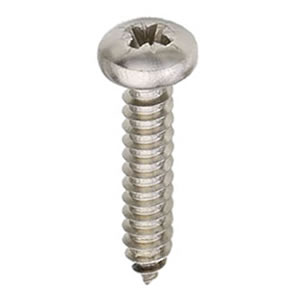

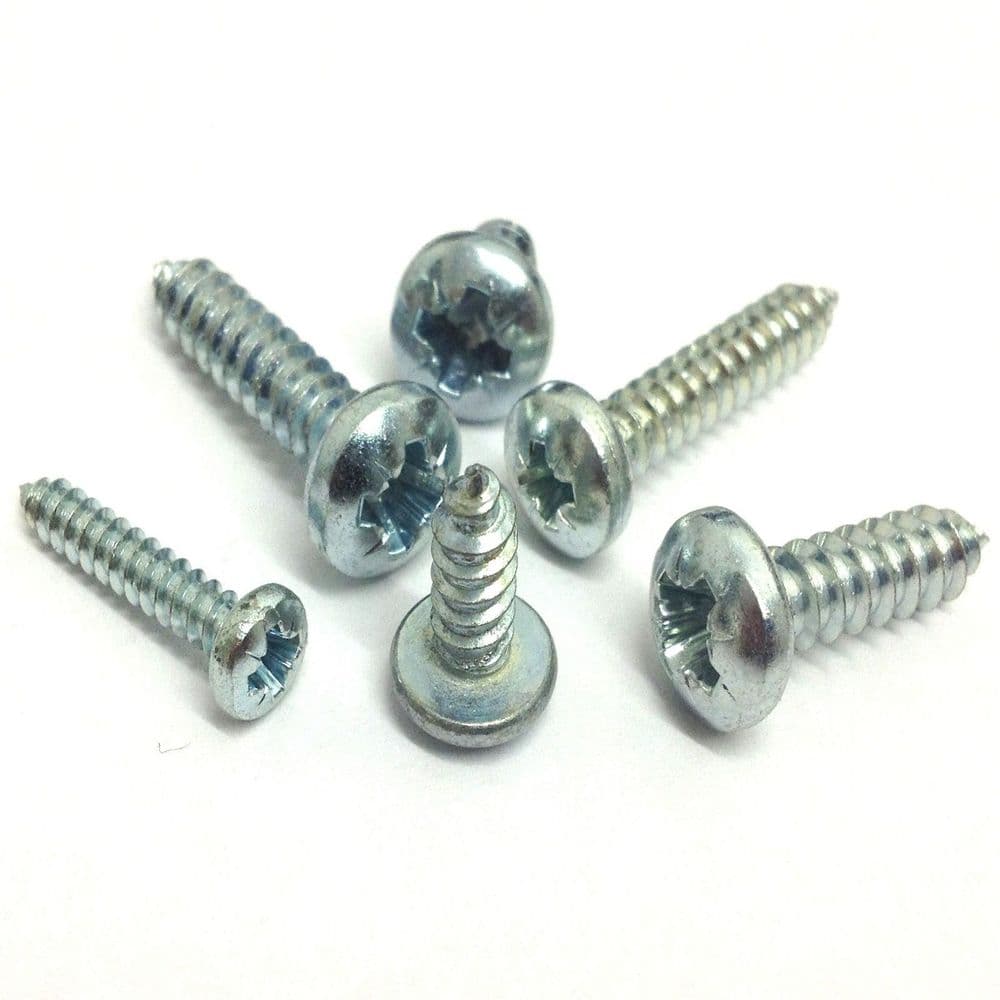

Self Tapping Screws No.8 x 1/2 Pan Head Pozi Zinc Plated DIN 7981

Pan Head Tapping Fasteners for Sheet Metal

The Self Tapping Screws No.8 pack contains 4.2 mm diameter pan head screws at 13 mm length, equivalent to the imperial 8 x 1/2 inch size. Each screw cuts its own thread into pre-drilled or punched sheet metal, plastic and soft wood. A Pozidriv PZ2 recess takes high torque without cam-out.

The nominal diameter measures 4.2 mm and the full thread runs at a 1.4 mm pitch. Head diameter is 8.2 mm with a 3.05 mm head height. The Type C point adds a 3.7 mm drill tip that locates the hole before the thread engages. Bright zinc plating provides a passivated barrier against indoor corrosion.

Case-hardened steel gives the thread enough hardness to form a mating thread in sheet steel up to roughly 3 mm thick. DIN 7981 C and ISO 7049 define the head and thread geometry. The pan head spreads clamping load over a wider area than a countersunk profile, which suits brackets, trunking and enclosure lids.

Key Features

• Pozidriv PZ2 Pan Head
  The cross recess transfers torque cleanly and reduces bit slip during high-load driving.

• Self-Tapping Thread

  • 1.4 mm pitch cuts a matching thread in the host material
  • Type C point locates the hole before threading begins
  • Full thread length supports thin-gauge assemblies

• Bright Zinc Plating
  The passivated zinc layer resists corrosion in indoor and sheltered outdoor installations.

• Case-Hardened Steel
  Surface hardening lets the thread bite into mild steel sheet without rolling over.

• DIN 7981 C Geometry
  Head diameter, height and thread pitch follow the published standard dimensions.

• Compact 13 mm Length
  The short body suits shallow enclosures, panels and bracket stacks.

Specifications

What’s in the Box

• Self tapping pan head screws, No.8 x 1/2 inch

• Retail pack

Why Choose These Fasteners

• The PZ2 recess accepts standard driver bits already held in most tool kits.

• Zinc plating keeps the fasteners presentable on indoor panel work.

• The 13 mm length clears shallow brackets without protruding through the far side.

• DIN 7981 dimensions allow substitution against existing stock lists.

• Pan heads clamp plastic covers and trunking lids without sinking into the surface.
