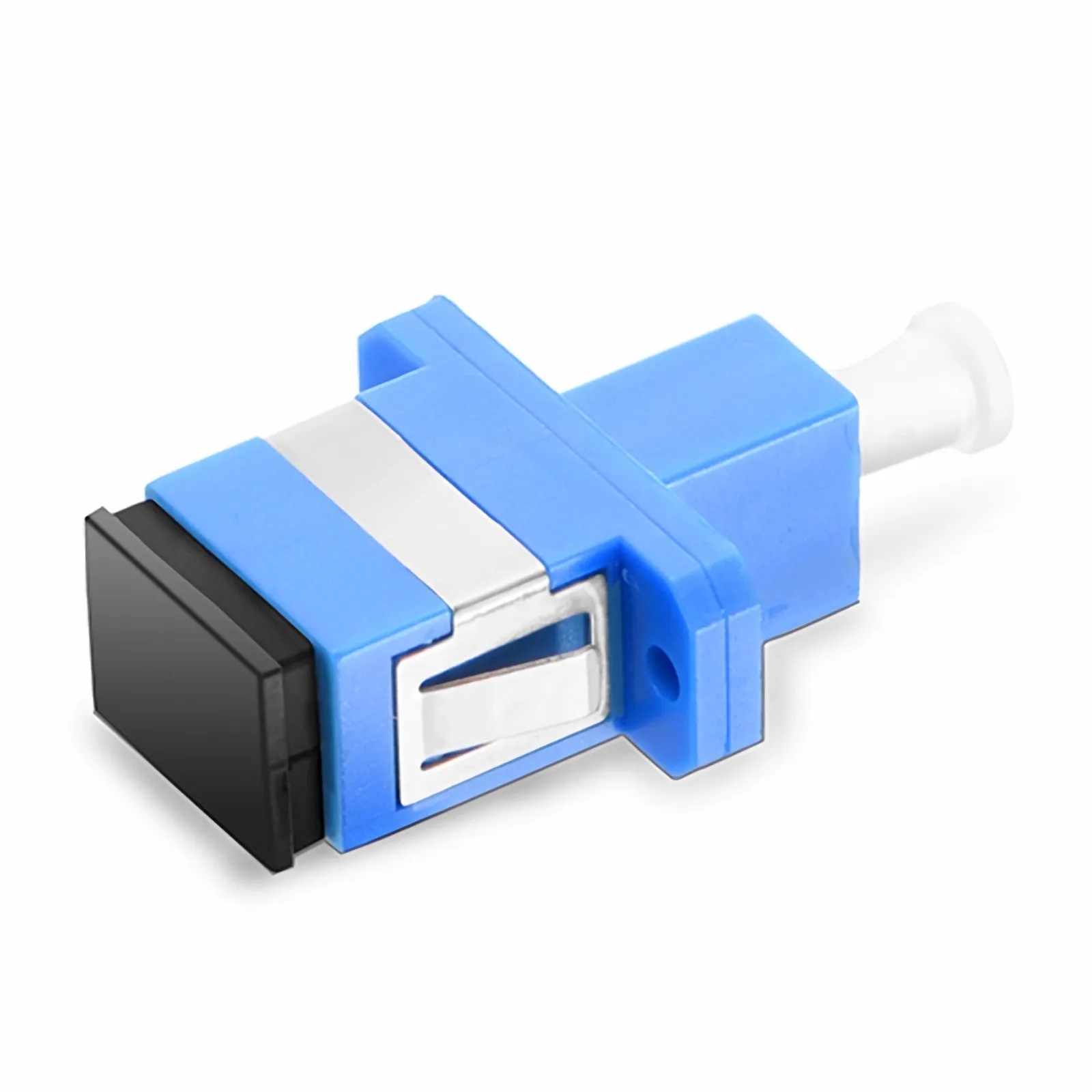

SC/UPC Simplex Adaptor SM Blue Fiber Optic Adapter
Limited Stock
SC/UPC Simplex Adaptor SM Blue Fiber Optic Adapter
| Connector type | SC/UPC |
| Body style | Simplex |
| Fibre mode | Single mode (SM) |
| Colour | Blue |
| Alignment sleeve | Ceramic (zirconia) |
| Insertion loss (max/typ) | 0.2 dB / 0.1 dB |
| Return loss | ≥ 50 dB |
| Mating cycles | 1000 |
| Housing material | LSZH |
| Operating temperature | -25°C to +70°C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Single Mode Fiber Coupler
The SC/UPC Simplex Adaptor joins two SC/UPC single mode connectors in patch panels and enclosures. A ceramic alignment sleeve centres the 2.5 mm ferrules for repeatable mating. The blue body marks the UPC polish and single mode fibre type.
Typical insertion loss sits at 0.1 dB with a 0.2 dB maximum across 1000 mating cycles. Return loss reaches 50 dB or better. The LSZH housing meets UL94-V0 flammability and RoHS limits. Operating temperature spans -25°C to +70°C, with storage from -40°C to +80°C.
The adaptor accepts flanged or flangeless mounting. Full-flange versions screw to a panel or snap into a cutout, while flangeless bodies suit tight enclosure walls. Technicians use it to couple simplex patch cords, extend a single mode run, or present a clean SC port on an ODF tray.
Key Features
Ceramic Alignment Sleeve
A 2.5 mm zirconia sleeve centres both ferrules for low-loss mating.UPC Single Mode Interface
The blue body identifies the 9/125 µm UPC polish used on single mode links.Panel and Enclosure Mounting
- Full-flange body screws or snaps into a standard SC cutout.
- Flangeless option fits narrow enclosure walls.
Low Insertion Loss
Typical loss measures 0.1 dB, with a 0.2 dB maximum at 1310 nm and 1550 nm.Repeatable Mating
Loss change stays within ±0.1 dB across 1000 matings.LSZH Housing
The low-smoke zero-halogen body meets UL94-V0 and RoHS requirements.Temperature Range
The adaptor operates from -25°C to +70°C and stores from -40°C to +80°C.
Specifications
| Feature | Specification |
|---|---|
| Connector type | SC/UPC |
| Body style | Simplex |
| Fibre mode | Single mode (SM) |
| Colour | Blue |
| Alignment sleeve | Ceramic (zirconia) |
| Ferrule diameter | 2.5 mm |
| Insertion loss (max/typ) | 0.2 dB / 0.1 dB |
| Return loss | ≥ 50 dB |
| Repeatability | ± 0.1 dB |
| Mating cycles | 1000 |
| Housing material | LSZH |
| Flammability | UL94-V0 |
| Mounting | Flanged or flangeless |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +80°C |
| RoHS | Compliant |
What’s in the Box
SC/UPC simplex single mode adaptor, blue
Dust cap
Why Choose the SC/UPC Coupler
Provides a clean SC interface on patch panels and ODF trays.
Ceramic sleeve keeps loss stable across repeated patch changes.
Blue body makes single mode UPC ports easy to identify in a dense frame.
Flange options cover both screw-fixed and snap-in panel cutouts.
LSZH housing suits indoor enclosures with strict fire requirements.
