SB6-Squ Exit Button Square No-Touch Infrared 12-24V DC NO/NC/COM
Original price was: KSh 1,500.00.KSh 1,200.00Current price is: KSh 1,200.00. ex VAT
SB6-Squ Exit Button Square No-Touch Infrared 12-24V DC NO/NC/COM
| Feature | Specification |
|---|---|
| Type | Infrared no-touch exit sensor |
| Faceplate | 304 stainless steel |
| Output contacts | NO / NC / COM |
| Operating voltage | 12–24 V DC |
| Rated current | Up to 3 A |
| Detection range | 5–15 cm |
| Dimensions | 86 x 86 x 29 mm |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Hygienic Door Release Sensor

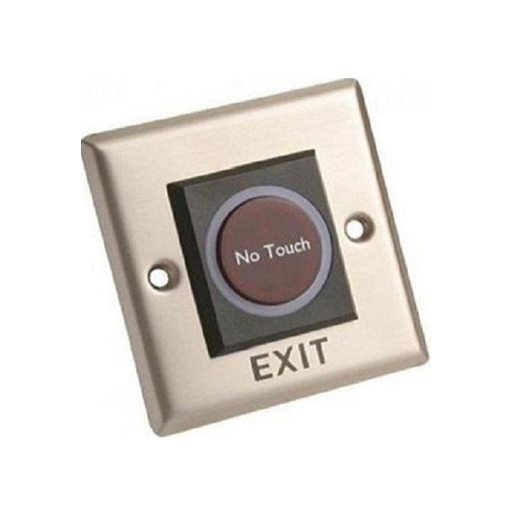

The SB6-Squ exit button triggers door release through infrared proximity sensing, so a hand wave within 5–15 cm opens the door without contact. It mounts on a standard single-gang box and sits flush to the wall.
The 304 stainless steel faceplate resists corrosion and repeated cleaning. A PC plastic rear housing handles high temperatures and insulates the electronics. Dual LEDs show power and activation status, and the sensor responds quickly to hand movement.
Output contacts are NO, NC and COM, which covers magnetic locks, electric strikes and most access controllers. The unit accepts 12–24 V DC and carries a rated current of up to 3 A. Operating range is −10 °C to +55 °C, and the sensor draws minimal standby current.
Key Features
Infrared Proximity Activation
Detects a hand at 5–15 cm without physical contact, which limits touchpoints on shared doors.Flexible Dry Contact Output
- NO, NC and COM terminals wire directly to locks, strikes and controllers
- Rated for up to 3 A at 12–24 V DC
304 Stainless Faceplate
The brushed panel resists corrosion and wipes clean with standard disinfectants.Dual Status LEDs
Separate power and activation indicators let installers confirm wiring at a glance.
Specifications
| Feature | Specification |
|---|---|
| Model | SB6-Squ |
| Type | Infrared no-touch exit sensor |
| Faceplate material | 304 stainless steel |
| Rear housing | PC plastic |
| Output contacts | NO / NC / COM |
| Operating voltage | 12–24 V DC |
| Rated current | Up to 3 A |
| Detection range | Approximately 5–15 cm |
| Indicators | Dual LED, power and activation |
| Dimensions | 86 x 86 x 29 mm |
| Weight | Approximately 0.1 kg |
| Mounting | Surface mount, standard single-gang box |
| Operating temperature | −10 °C to +55 °C |
What’s in the Box
SB6-Squ exit sensor unit
Mounting screws and fixings
Installation guide
Why Choose SB6-Squ
Hands-free release suits hospitals, clinics, laboratories and food handling areas.
The square 86 mm format drops onto standard back boxes and single-gang mounting points.
A wide 12–24 V DC input matches common access control power supplies.
Solid-state sensing has no moving parts to wear out under heavy traffic.
