R&M R513484 Freenet Adapter RJ45/u EL/ISO Module IP20 24-Pack
Limited Stock
R&M R513484 Freenet Adapter RJ45/u EL/ISO Module IP20 24-Pack
| Part Number | R513484 |
| Product Type | Freenet adapter for EL/ISO modules |
| Shielding | Unshielded (/u) |
| Connector Interface | RJ45/u |
| Channel Type | U/UTP |
| Protection Class | IP20 |
| Material | Polycarbonate (PC), transparent |
| Dimensions | 19.7 x 18.7 x 20.3 mm |
| Delivery Unit | 24 pieces |
| EAN / GTIN | 7611821047360 |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

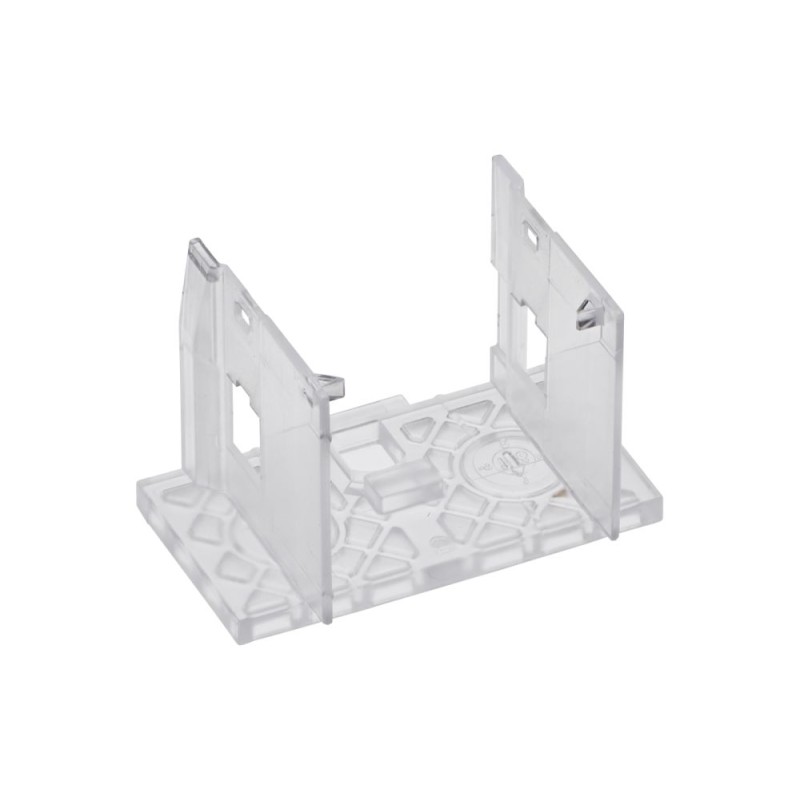

Unshielded Freenet Mounting Adapter
The R&M R513484 adapter seats EL and ISO modules into R&Mfreenet unshielded mounting systems. It uses the click-lock interface for tool-free latching and release. The IP20 part measures 19.7 x 18.7 x 20.3 mm and adds minimal depth behind the plate.
A transparent polycarbonate body houses the RJ45/u interface. The adapter carries a U/UTP channel rating and accepts Cat.6A ISO/EL modules. Each delivery unit holds 24 pieces, which suits bulk cabinet, floor-box and desk-outlet work.
Installers clip the adapter into existing R&Mfreenet mounting positions. The click system locks the module at 100 percent and releases with a simple lever action. IP20 protection suits indoor cabinets, patch panels and wall outlets in commercial buildings.
Key Features
Freenet Click-Lock Interface
The module latches fully into the mounting frame and releases without tools.EL/ISO Module Compatibility
- Accepts unshielded Cat.6A ISO and EL modules
- Fits all R&Mfreenet unshielded mounting systems
- RJ45/u jack interface on the connector side
Polycarbonate Housing
Transparent PC moulding resists impact and keeps module labelling visible.Compact Footprint
At 19.7 x 18.7 x 20.3 mm, the part clears tight back-box and trunking spaces.IP20 Protection Class
Rated for indoor use in cabinets, racks and enclosed outlet boxes.24-Piece Delivery Unit
Bulk packaging supports multi-port faceplate builds and stock replenishment.
Specifications
| Feature | Specification |
|---|---|
| Part Number | R513484 |
| Product Type | Freenet adapter for EL/ISO modules |
| Shielding | Unshielded (/u) |
| Connector Interface | RJ45/u |
| Channel Type | U/UTP |
| Module Compatibility | Cat.6A ISO/EL unshielded modules |
| Protection Class | IP20 |
| Material | Polycarbonate (PC), transparent |
| Dimensions (W x H x D) | 19.7 x 18.7 x 20.3 mm / 0.776 x 0.736 x 0.799 in |
| Delivery Unit | 24 pieces |
| EAN / GTIN | 7611821047360 |
| Mounting System | R&Mfreenet unshielded |
What’s in the Box
24 x R&M R513484 Freenet adapters
Manufacturer packaging
Why Choose R&M
The click-lock mechanism cuts termination time on multi-port faceplate builds because no screws or retaining clips are needed.
One adapter part covers both ISO and EL module variants, which simplifies spares holding for installers.
The unshielded design matches U/UTP cabling plans where continuity bonding is not required.
R&M has produced twisted-pair cabling hardware since 1964, and the Freenet range carries a long field record in commercial buildings.
A 24-piece pack maps cleanly to a standard 24-port patch panel or two 12-port outlet plates.
Kevin Barasa (verified owner) –
Exactly what the spec sheet says. RJ45/u shielded termination, ISO-fr marking, IP20. I verified continuity on a sample of six modules with a Fluke tester and all passed Cat 6 channel limits on our short runs. The 24-pack works out well for a floor plate layout. No complaints.
Caroline Muthoni (verified owner) –
Ordered the pack for our new server room fit-out. Arrived well packaged with each module individually bagged. Good quality plastic, no loose clips.
Anne Chebet (verified owner) –
The modules clip into the R&M frames properly, no gaps. One module had a slightly stiff shutter but it loosened after a few insertions. Decent buy.
Peter Njoroge (verified owner) –
We used these RJ45 modules on a structured cabling job in Upper Hill. The ISO-fr termination blocks are clearly marked and the snap-in fit on the R&M faceplates is solid. All 24 were consistent out of the pack. IP20 rating is fine for indoor office runs. Cabling test passed on first sweep, which is not always the case with adapter modules.
James Ochieng (verified owner) –
Good modules but do budget time for termination. The shutter mechanism on the EL version is tighter than the plain keystone types I am used to, so my first few terminations took longer than expected. Once you get the rhythm it is fine. They seat firmly in the panel and the latch does not rattle. Would buy again for structured cabling work.
Lydia Wairimu (verified owner) –
Bought a pack for a small office refit in Westlands. 24 pieces covered our 18 desks with spares left over. Neat finish on the faceplates.
Hassan Abdalla (verified owner) –
Installed these in a Mombasa office last month. Salt air is hard on metal contacts, so the shielding on the EL version gives some peace of mind. Time will tell on corrosion but the build looks durable. The 24-pack is a sensible quantity for a full floor.
