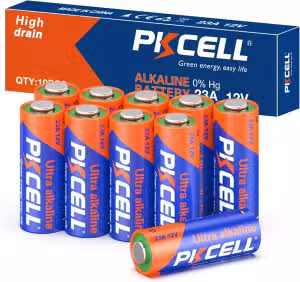

PKCELL 23A 12V Alkaline Battery A23 MN21 50mAh Cylindrical Cell

A23 Alkaline Cell for Remotes and Sensors

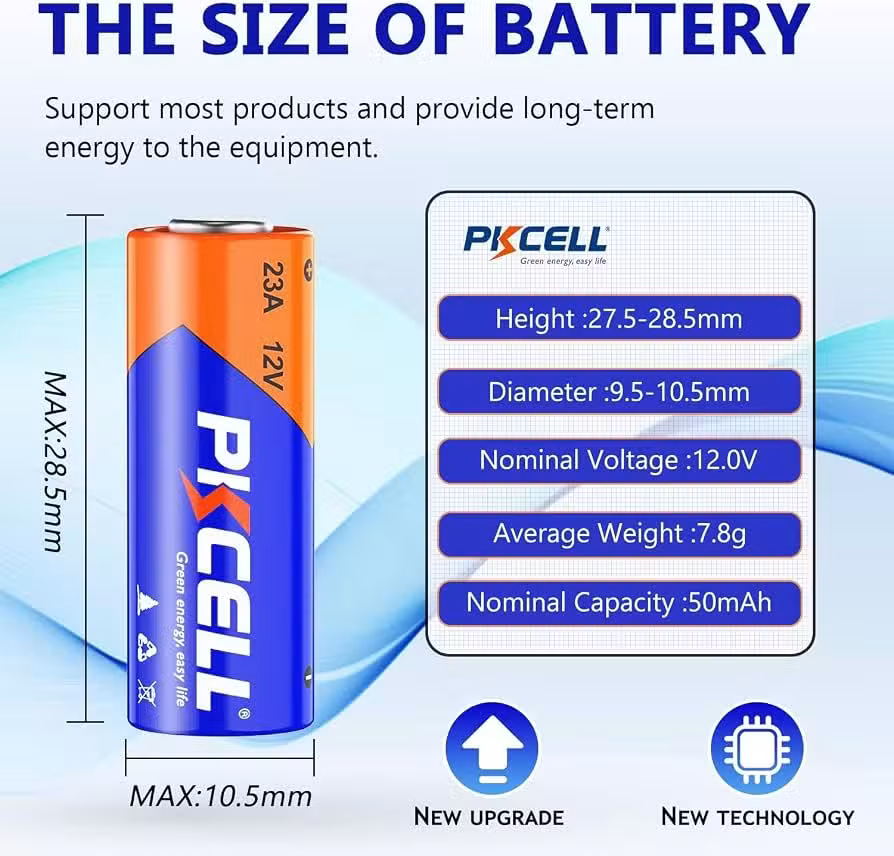

The PKCELL 23A 12V battery is a cylindrical alkaline manganese-dioxide cell for keyfobs, doorbells, and wireless sensors. It measures 27.5 to 28.5 mm in height with a 9.5 to 10.5 mm diameter. The stacked 12V construction delivers roughly 50 mAh when discharged through 20 kΩ to a 6.0V cutoff.

Discharge testing runs 24 hours per day at 20°C. Initial average duration reaches 105 hours, and cells stored 12 months still reach 94.5 hours. Open-circuit voltage reads 12.20V fresh and 12.0V after a year on the shelf. Closed-circuit voltage settles at 11.0V initially and 10.50V after storage.

Construction meets the IEC 60086-1 and IEC 60086-2 reference standards. The sealed jacket contains no mercury, cadmium, or lead, so spent cells go into general waste. Manufacturer shelf life reaches ten years under correct storage. A printed date code on each cell shows the production batch and stock age.

Key Features

• 12V Stacked Alkaline Construction
  Eight manganese-dioxide button cells in series produce a 12.0V nominal output.

• Measured Discharge Performance
  A 20 kΩ load held 105 hours initially and 94.5 hours after twelve months of storage.

• Terminal Voltage Profile

  • 12.20V open circuit at delivery
  • 12.0V open circuit after 12 months
  • 6.0V end-voltage cutoff for rated capacity

• Heavy-Metal-Free Chemistry
  The cell carries no mercury, cadmium, or lead and passes RoHS disposal requirements.

• Ten-Year Shelf Life
  Sealed construction limits self-discharge when cells sit in a drawer at room temperature.

• Compact 10 mm Barrel
  The 9.5 to 10.5 mm diameter fits remote battery bays and alarm sensor housings.

Specifications

What’s in the Box

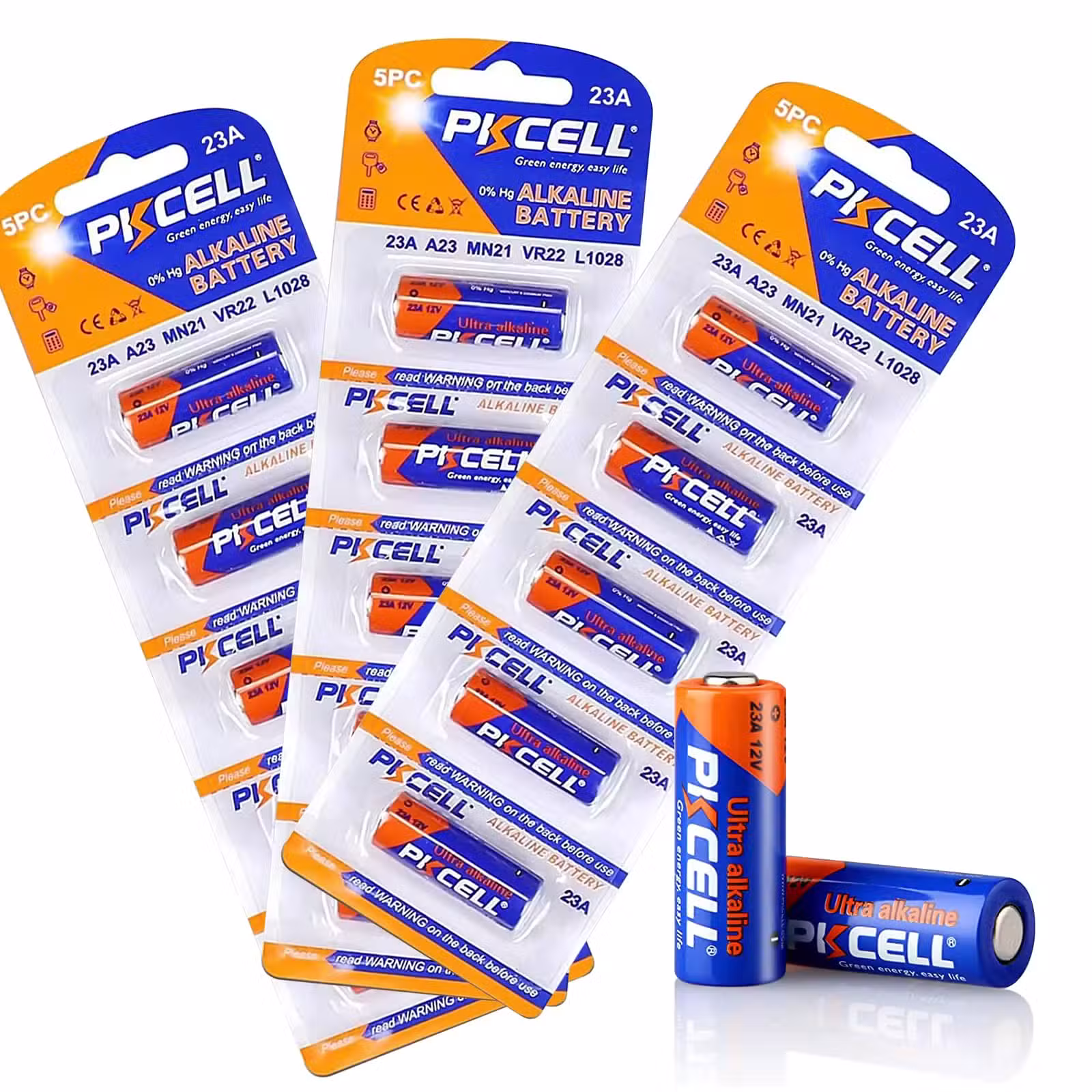

• PKCELL 23A 12V alkaline cell

• Individual blister or sealed pack as supplied

Why Choose the A23 Cell

• The 12V stack replaces the original cell in garage door openers, car keyfobs, and doorbell pushes without adapters.

• Dated stock lets procurement teams rotate inventory and keep the freshest cells in service.

• A 7.8 g mass keeps the cell stable inside small sensor housings that see vibration.

• Long storage tolerance suits spare-parts kits and maintenance spares held for years.

• Lead-free and cadmium-free construction simplifies disposal under regional e-waste rules.
