Paso PS806B Multi-purpose Wire Tracker RJ45 RJ11 BNC

Paso PS806B Wire Tracker

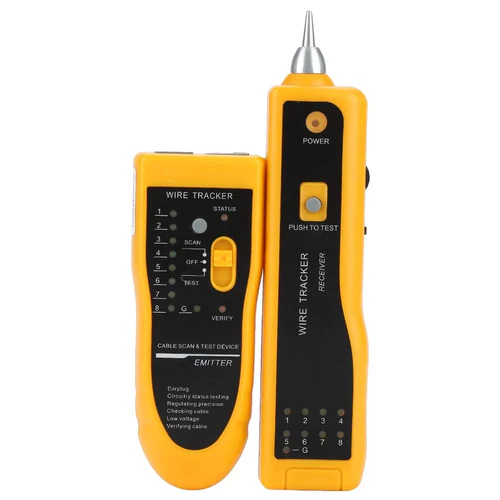

The Paso PS806B Wire Tracker serves as an essential diagnostic instrument for network engineers and telecommunications technicians requiring precise cable identification within complex infrastructures. This dual-unit system comprises a high-frequency signal transmitter and an inductive receiver probe designed to trace cables without physical contact with the conductor. Consequently, it enables the rapid location of specific wire pairs in high-density patch panels, conduits, and wall voids. The device supports a wide array of connectors including RJ45 for Ethernet, RJ11 for telephony, and BNC for coaxial video systems. Therefore, it provides a versatile solution for cross-platform network maintenance and troubleshooting.

Key Features

• Multi-Interface Compatibility
  The transmitter unit integrates native ports for RJ45, RJ11, and BNC connectors to facilitate testing across diverse cabling standards.
• Advanced Signal Processing
  • Utilizes digital pulse modulation to minimize interference from external electrical noise.
  • Supports signal transmission distances exceeding 3000 meters for large-scale facility tracing.
  • Adjustable sensitivity dial on the receiver allows for pinpoint accuracy in crowded cable looms.
• Integrated Continuity Testing
  The system includes a wire-mapping function to verify pin-to-pin continuity and detect open or short circuits in Ethernet cables.
• Environmental Adaptability
  • Built-in earphone jack enables signal detection in high-noise server room environments.
  • Integrated LED flashlight on the receiver probe assists in low-light cabinet inspections.

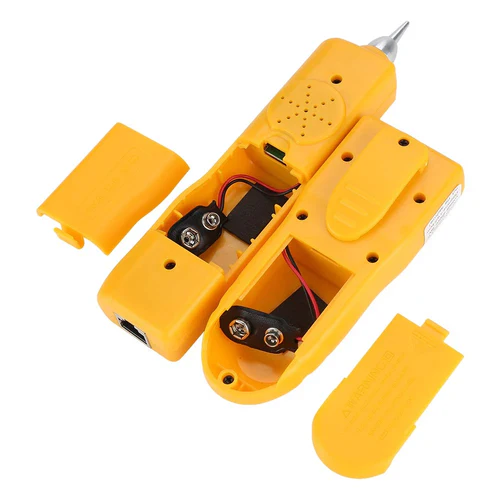

  • Low battery indicator prevents diagnostic errors caused by insufficient voltage levels.

Specifications

What’s in the Box

• PS806B Signal Emitter
• PS806B Receiver Probe
• RJ45 Patch Cable
• RJ11 Patch Cable
• Alligator Clip Adapter
• Headphones
• Protective Carry Pouch

Why Choose This Wire Tracer

• The inductive probe technology ensures non-destructive testing by detecting signals through PVC insulation.
• Technicians benefit from the multi-mode functionality that combines tracing, continuity testing, and polarity checking in one unit.
• High-gain amplification circuitry allows for the detection of faint signals even in shielded twisted pair (STP) environments.
• The rugged ABS plastic construction provides durability for field use in construction sites and industrial zones.
