OM2 LC-SC Patch Cord 1.5m Duplex 50/125 µm Multimode LSZH Orange
Limited Stock
OM2 LC-SC Patch Cord 1.5m Duplex 50/125 µm Multimode LSZH Orange
| Fiber Category | OM2 multimode |
| Core / Cladding | 50/125 µm |
| Connector A | LC/UPC duplex |
| Connector B | SC/UPC duplex |
| Fiber Count | 2 |
| Length | 1.5 m |
| Insertion Loss | 0.25 dB max |
| Return Loss | ≥30 dB |
| Jacket Material | LSZH, orange |
| Operating Temperature | -20 °C to 60 °C |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Duplex Multimode Fiber Jumper

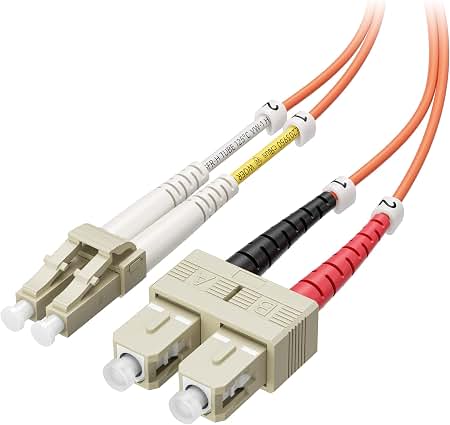

The OM2 LC-SC patch cord links LC-equipped switches and transceivers to SC patch panels across a 1.5 m run. Two 50/125 µm multimode fibers sit in a zipcord jacket with UPC-polished ceramic ferrules. The assembly arrives factory-tested for insertion loss and return loss.
LC connectors occupy half the footprint of SC, so the small-form end suits high-density line cards and SFP ports. The SC end latches into fixed panels, cassettes and media converters. Both ends use UPC polish with a maximum insertion loss of 0.25 dB and a minimum return loss of 30 dB.
OM2 fiber carries 1 Gigabit Ethernet to 550 m and 10GBASE-SR to roughly 82 m. A low smoke zero halogen sheath limits toxic emission in occupied rooms and risers. The orange jacket marks multimode 50/125 cable for quick identification in dense cabinets.
Key Features
LC to SC Duplex Configuration
Two fiber strands connect LC transceiver ports to SC panel adapters in one assembly.50/125 µm OM2 Fiber
The graded-index core supports 1G links to 550 m and short-reach 10G links.UPC Ceramic Ferrules
Zirconia ferrules hold concentricity and keep mating loss predictable across reconnects.Low Insertion Loss
- 0.25 dB maximum per mated pair
- 0.1 dB typical on factory assemblies
LSZH Orange Jacket
The halogen-free sheath suits risers, server rooms and public buildings.1.5 m Working Length
The short span suits top-of-rack patching and adjacent cabinet links.Strain Relief Boots
Moulded boots protect the fiber at the connector junction during pulls and bends.Polarity A Wiring
Straight-through duplex mapping matches standard LC and SC port orientation.
Specifications
| Feature | Specification |
|---|---|
| Fiber Category | OM2 multimode |
| Core / Cladding | 50/125 µm |
| Connector A | LC/UPC duplex |
| Connector B | SC/UPC duplex |
| Fiber Count | 2 |
| Length | 1.5 m |
| Insertion Loss | 0.25 dB max, 0.1 dB typical |
| Return Loss | ≥30 dB |
| Wavelengths | 850 nm and 1300 nm |
| OFL Bandwidth | ≥500 MHz·km at 1300 nm |
| Jacket Material | LSZH |
| Jacket Colour | Orange |
| Outer Diameter | 1.8 mm nominal |
| Ferrule Material | Ceramic zirconia |
| Operating Temperature | -20 °C to 60 °C |
| Polarity | A (straight) |
What’s in the Box
One 1.5 m duplex LC-SC multimode fiber jumper
Dust caps on all four connector ends
Test label showing measured insertion loss
Why Choose This Fiber Assembly
The mixed connector set bridges newer LC switching to legacy SC patching without extra adapters.
Factory polishing removes field termination work and the associated loss variance.
Zipcord construction separates transmit and receive paths for straightforward polarity checks.
The halogen-free sheath meets fire requirements in enclosed telecom rooms.
Short 1.5 m length keeps slack manageable inside wall-mount enclosures.
