OEM SM-280-S 280KG Magnetic Lock Signal Output
Original price was: KSh 2,800.00.KSh 2,200.00Current price is: KSh 2,200.00. ex VAT
WhatsApp for availability
OEM SM-280-S 280KG Magnetic Lock Signal Output
| Feature | Value |
|---|---|
| Holding Force | 280kg (600lbs) |
| Input Voltage | 12V/24V DC |
| Signal Output | NO/NC/COM |
| Status Indicator | LED Red/Green |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

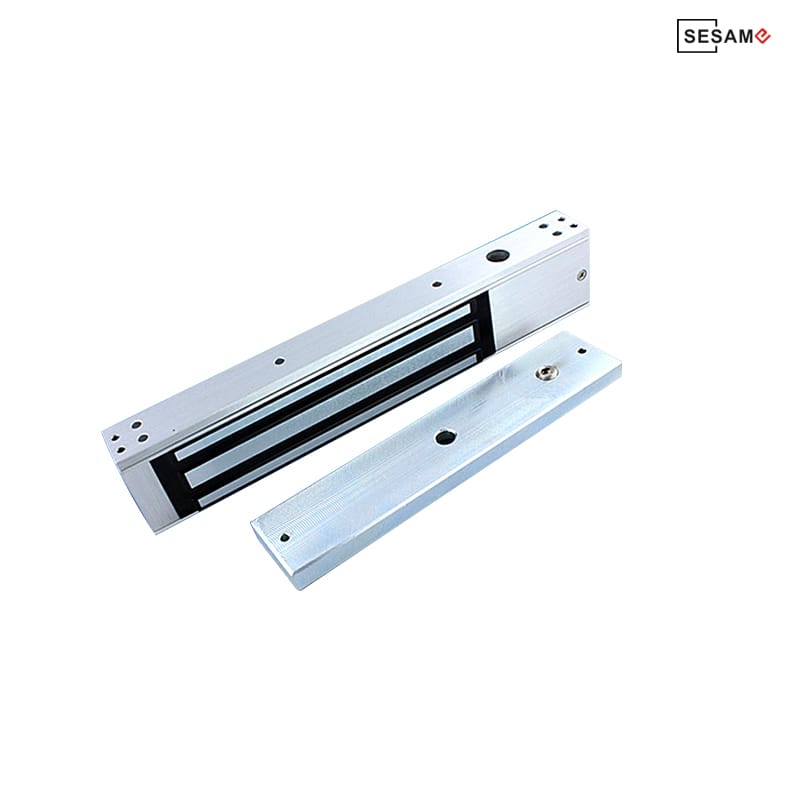

OEM SM-280-S Electromagnetic Lock
The OEM SM-280-S Magnetic Lock provides 280kg (600lbs) of holding force for high-security access control environments. This electromagnetic device operates on a fail-safe principle, ensuring doors remain unlocked during power loss for emergency egress. It utilizes a precision-wound copper coil to generate a consistent magnetic field. The unit supports dual-voltage inputs of 12VDC or 24VDC to accommodate various power supply architectures. It includes an integrated door position sensor for real-time monitoring. This feedback mechanism uses dry contacts to communicate with external security controllers or alarm systems. The anodized aluminum housing protects internal components from environmental degradation. It features an anti-residual magnetism design to prevent the armature plate from sticking after de-energization.
Key Features
High Holding Capacity
The assembly maintains a 280kg tensile strength rating to resist forced entry attempts on standard commercial doors.Integrated Status Monitoring
- Onboard LED indicates current lock status using red and green visual cues.
- Signal output via NO/NC/COM contacts enables remote door state verification.
Dual Voltage Operation
Internal jumpers allow field selection between 12VDC and 24VDC power inputs to match site specifications.Circuit Protection
- Built-in metal oxide varistor prevents reverse current damage to the access controller.
- Surge protection ensures longevity during electrical fluctuations in the facility.
Durable Construction
The high-strength aluminum alloy shell features a sandblasted finish for enhanced wear resistance.
Specifications
| Feature | Specification |
|---|---|
| Holding Force | 280kg (600lbs) |
| Input Voltage | 12VDC / 24VDC (Selectable) |
| Current Draw | 500mA @ 12V / 250mA @ 24V |
| Signal Output | Dry Contact (NO, NC, COM) |
| Lock Type | Fail-Safe (Power to Lock) |
| LED Indicator | Red (Locked), Green (Unlocked) |
| Body Dimensions | 250L x 48.5W x 25H (mm) |
| Armature Dimensions | 180L x 38W x 11H (mm) |
| Weight | 2.1kg |

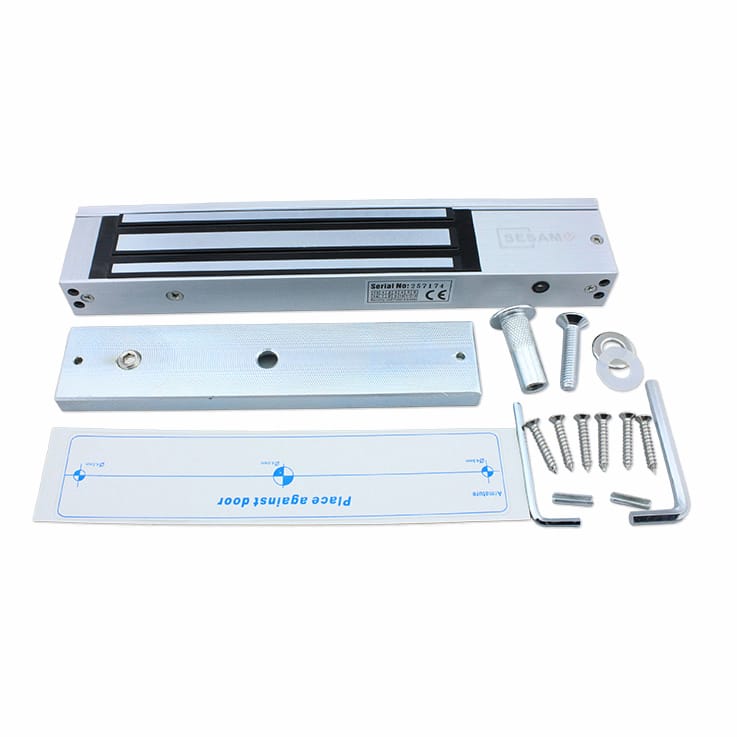

What’s in the Box
Electromagnetic Lock Body
Armature Plate
Mounting Template
Screw Kit and Allen Key
Instruction Manual
Why Choose SM-280-S
The anti-residual magnetism spring ensures immediate door release when the access control system cuts power.
Integrated feedback loops eliminate the need for separate door contact sensors on the frame.
The unit withstands extreme temperature ranges from -10 to 55 degrees Celsius for various climates.
