OEM OM2 LC-LC 3M Multimode Fiber Patchcord
WhatsApp for availability
OEM OM2 LC-LC 3M Multimode Fiber Patchcord
| Feature | Specification |
|---|---|
| Fiber Type | OM2 Multimode 50/125µm |
| Connectors | LC to LC Duplex |
| Length | 3 Meters |
| Jacket | LSZH |
| Insertion Loss | ≤ 0.3 dB |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

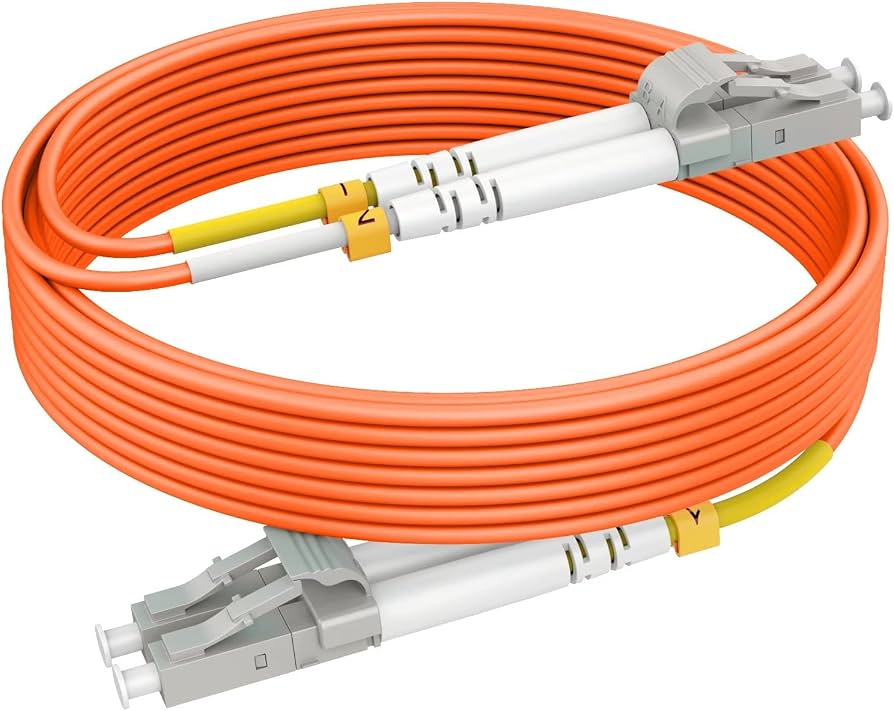

OEM OM2 Fiber Patchcord
The OEM OM2 LC-LC Patchcord facilitates high-speed data transmission in enterprise networking environments. This 3-meter optical assembly utilizes 50/125 micron multimode fiber to support Gigabit Ethernet and Fibre Channel applications. The duplex configuration allows simultaneous bidirectional communication between active network components. High-quality Zirconia ceramic ferrules ensure precise core alignment during mating cycles. This precision minimizes signal attenuation and maximizes network uptime in high-density patching environments. Each cable undergoes rigorous factory testing to meet international performance standards. The 3-meter length provides sufficient reach for intra-rack connections without excessive cable slack. This cable serves as a reliable link for backbone, horizontal, and riser applications.
Key Features
Zirconia Ceramic Ferrules
These components provide the necessary durability for repeated insertions while maintaining low insertion loss values.LSZH Jacket Construction
- Low smoke emission during combustion reduces toxicity.
- Zero halogen materials improve safety in poorly ventilated areas.
- Flame retardant properties comply with building safety codes.
Optical Performance Metrics
The cable maintains an insertion loss below 0.3dB to ensure signal integrity across the link.Duplex LC Connectors

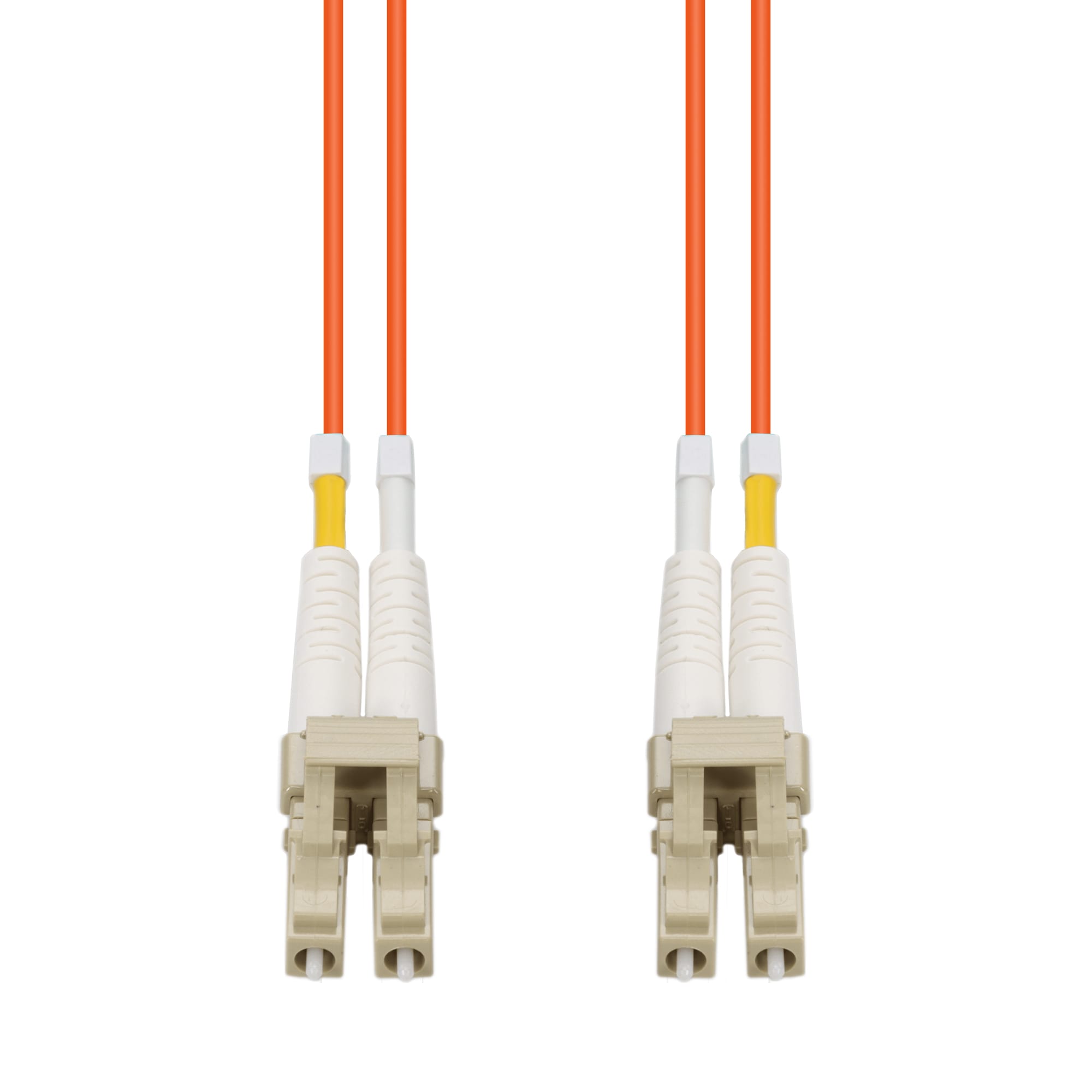

- Small form factor design increases port density on switches.
- Clip mechanism ensures secure locking and prevents accidental disconnection.
- Color-coded connectors simplify polarity identification during installation.
Standard Compliance
The assembly meets TIA-568-C.3 and ISO/IEC 11801 requirements for multimode optical fiber cabling.
Specifications
| Feature | Specification |
|---|---|
| Fiber Type | Multimode OM2 (50/125 µm) |
| Connector Type | LC to LC Duplex |
| Length | 3 Meters |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 30 dB |
| Operating Wavelength | 850 nm / 1300 nm |
| Operating Temperature | -20°C to +70°C |
What’s in the Box
1 x 3M OM2 Multimode Duplex Fiber Cable
Individual Test Report
Why Choose OEM OM2 Fiber Patchcord
Low signal attenuation limits light dispersion over the 3-meter span for consistent data throughput.
The 50 micron core provides higher bandwidth compared to older 62.5 micron OM1 legacy cables.
Additionally, the small form factor LC connectors allow for maximum port utilization on high-density switch blades.
The strain relief boot protects the internal glass fiber from damage during installation and maintenance tasks.
Each unit undergoes interferometer testing to verify ferrule end-face geometry and cleanliness.
