OEM LC-LC UPC OM3 Multimode Fiber 20m
Limited Stock

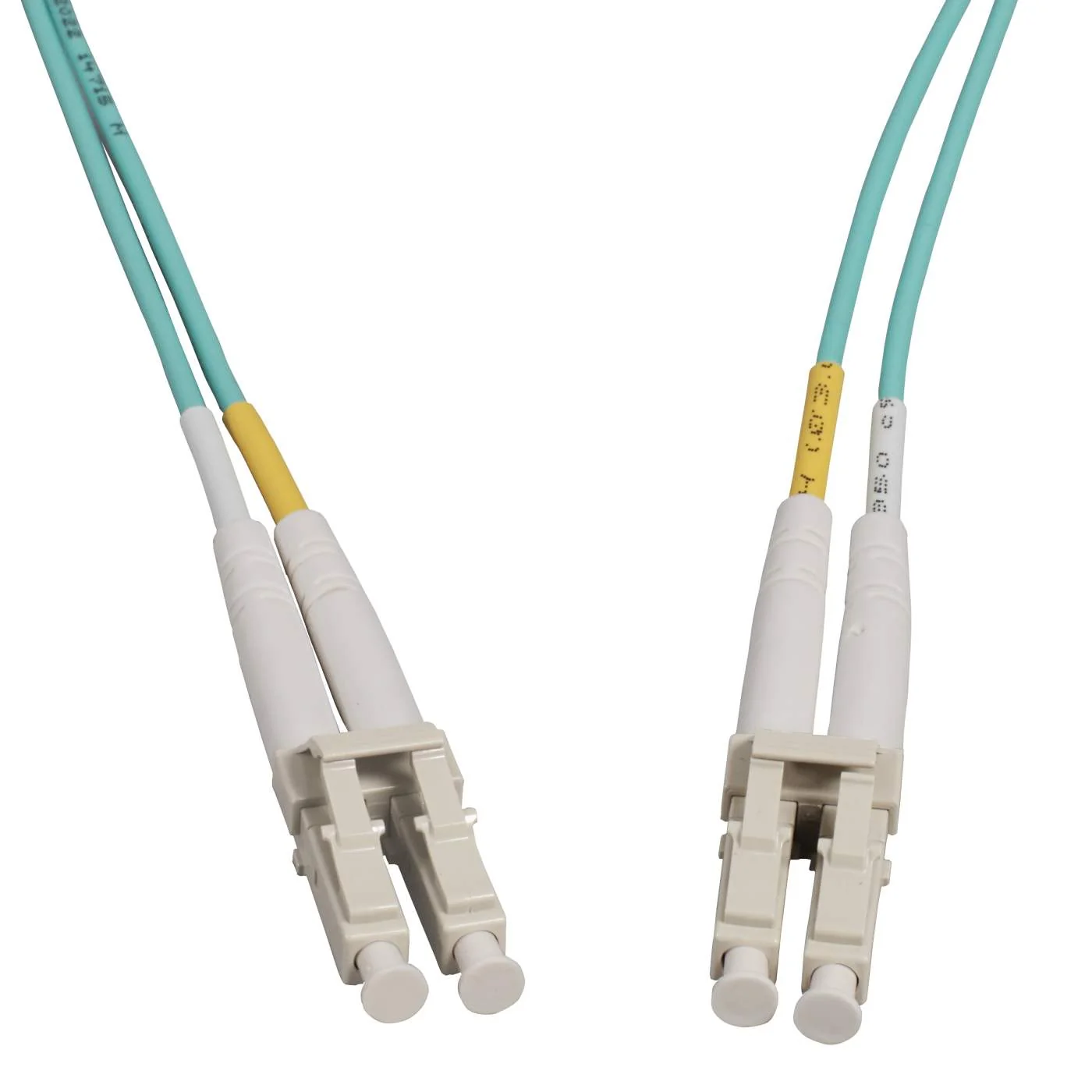

OEM LC-LC UPC OM3 Multimode Fiber 20m
| Feature | Specification |
|---|---|
| Fiber Type | OM3 Multimode |
| Connectors | LC-LC Duplex |
| Length | 20 Meters |
| Jacket | LSZH Aqua |
| Bandwidth | 10Gbps @ 300m |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
OEM OM3 20m Patch Lead
The OEM LC-LC OM3 Fiber assembly provides high-bandwidth data transmission across 20-meter network segments. This laser-optimized multimode fiber (LOMMF) supports 10 Gigabit Ethernet (10GbE) applications up to 300 meters. The duplex configuration utilizes Ultra Physical Contact (UPC) polished connectors to minimize back reflection. These components facilitate reliable signal transport in high-density data center environments. The 50/125 micron core architecture ensures compatibility with existing multimode infrastructure. Each 20-meter optical jumper undergoes rigorous testing for insertion loss and return loss. The aqua-colored jacket clearly identifies the OM3 classification according to industry standards. Network engineers utilize these cables for backbone, horizontal, and intra-building connections. The 20-meter length accommodates cross-cabinet connections; however, installers must maintain the minimum bend radius to prevent signal attenuation.
Key Features
Zirconia Ceramic Ferrules
The connectors utilize high-grade ceramic to ensure precise fiber alignment and durability over multiple mating cycles.Laser-Optimized Construction
- Effective Modal Bandwidth of 2000 MHz·km at 850nm
- Supports VCSEL laser sources for high-speed data rates
- Backward compatible with LED-based legacy systems
Safety-Rated Outer Jacket
The Low Smoke Zero Halogen (LSZH) material reduces toxic gas emissions during combustion in poorly ventilated areas.Mechanical Reliability
- Removable duplex clips allow for easy polarity reconfiguration
- Strain relief boots protect the fiber-to-connector junction
- Standard LC small form factor saves rack space
Specifications
| Feature | Specification |
|---|---|
| Fiber Type | OM3 Multimode 50/125µm |
| Connector Type | LC to LC Duplex |
| Polish Type | UPC (Ultra Physical Contact) |
| Length | 20 Meters (65.6 ft) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 30 dB |
| Operating Wavelength | 850nm / 1300nm |
What’s in the Box
1 x 20m LC-LC UPC OM3 Multimode Duplex Fiber Patch Cable
Protective Dust Caps
Why Choose OEM OM3 Interconnect
Low insertion loss ratings improve the overall optical link budget for critical network paths.
The LSZH jacket meets stringent building codes for fire safety and environmental protection.
Standardized LC connectors provide a secure latching mechanism to prevent accidental disconnections in high-traffic racks.
Factory-terminated assemblies eliminate the need for field splicing and reduce deployment time for IT professionals.
