OEM 1U Brush Panel Cable Management

OEM 1U Brush Cable Panel

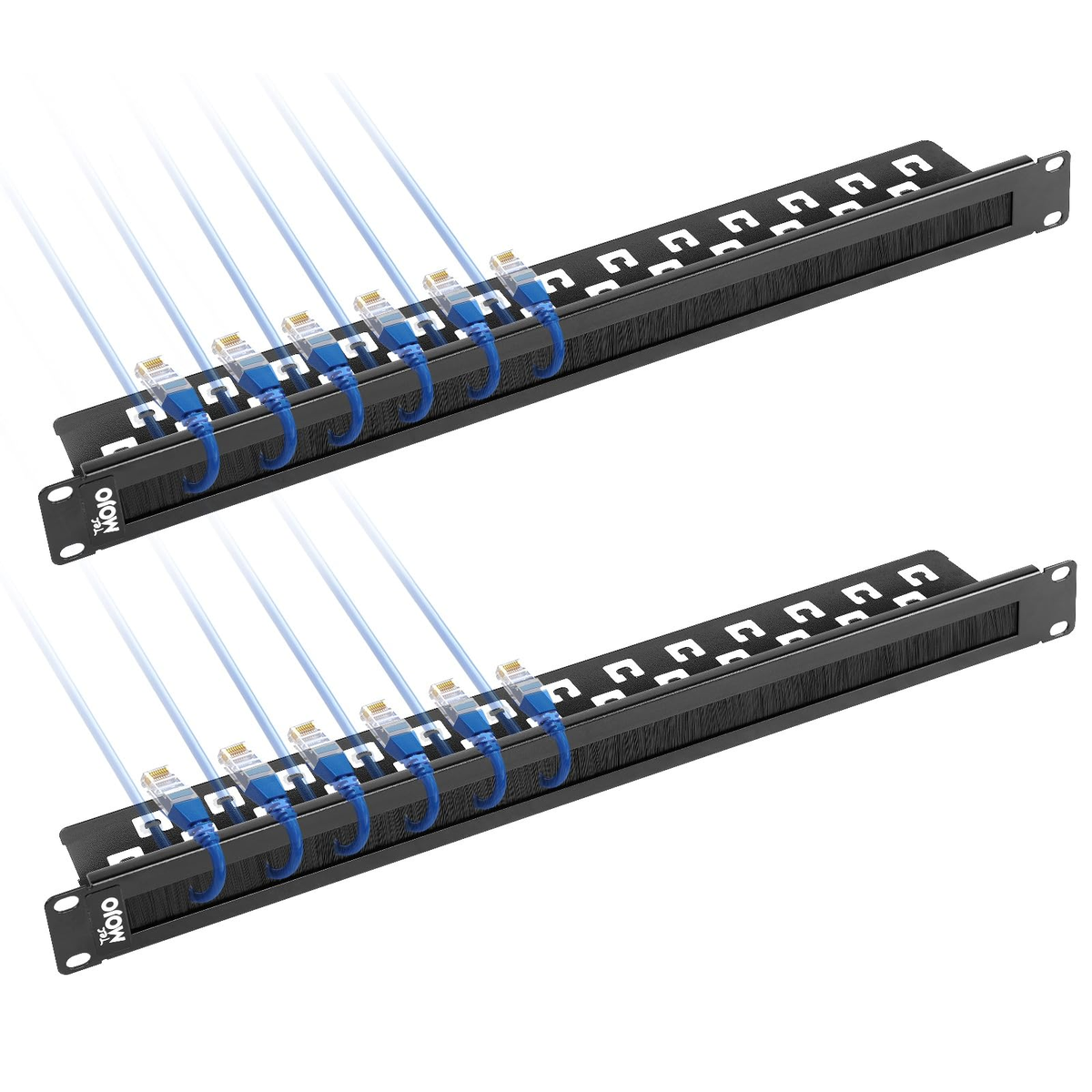

The OEM 1U Brush Panel mounts in a standard 19-inch rack to route patch cables through a closed cabinet wall. Dense nylon bristles flex around each lead while blocking airflow gaps that pull dust into switch bays. Installers use this panel at the rear of distribution frames, between hot and cold aisles, and at demarcation points where structured cabling enters an enclosure. The 1U height preserves vertical rack space for active gear. Brush strips accept mixed cable diameters from thin fiber jumpers to shielded Cat6A patch cords without pinching insulation. Technicians feed cables from inside the rack through the bristle field and terminate on patch panels or switches mounted behind the opening. The rigid steel frame aligns with EIA-310-D hole patterns on four-post and two-post racks. Cage nuts and screws secure the panel at the same elevation as adjacent blanking plates or cable managers. Data center teams pair brush panels with vertical managers to keep bend radius compliant on high-density links. The bristle block also dampens cable movement during rack slides and reduces snag risk on sharp metal edges. Facilities managers specify brush panels when HVAC containment requires sealed rack rows but still need flexible cable pass-through. Network engineers document brush panel locations on rack elevation drawings so future moves stay organized. The panel supports mixed media runs including copper, fiber, and KVM extensions through one opening. Brush wear remains low under normal data hall temperatures and does not shed fibers that could contaminate optics. Procurement teams stock brush panels as rack build-out consumables alongside blanking plates and horizontal managers. The unit ships ready for field installation without special tools beyond a screwdriver and cage nut driver. Cable labeling stays visible because leads exit the bristle field in predictable vertical paths. Grounding follows facility bonding practice through the rack frame rather than the panel body. Regular inspection involves checking bristle density and confirming no cables bind at the exit plane. Replacement follows standard rack hardware lifecycle during cabinet refreshes. The panel tolerates repeated cable adds and removes during MAC work without frame deformation. Brush panels reduce the need for oversized cutouts that weaken cabinet skins. They also limit electromagnetic leakage compared with open holes when paired with grounded racks. Install crews align multiple brush panels across a row to create wide cable highways between enclosures. The 1U form factor matches horizontal lacer bars and PDU mounting heights for clean front-to-back alignment. Cable slack management improves because leads enter the rack at a controlled point rather than random knockout locations. This hardware suits server rooms, telecom closets, and edge micro-data cabinets that use standard rack depth. The bristle aperture accepts bundled ties when installers group runs by VLAN or service type. Cold aisle containment designs often place brush panels at the rear door plane to pass monitoring and out-of-band cables. Hot aisle setups route power whip pass-through on separate panels to keep separation between power and data paths. The steel frame receives a corrosion-resistant finish suited to conditioned indoor environments. Brush panels do not require powered components and carry no firmware maintenance burden. They integrate with existing cable management policies without protocol changes. Rack audit teams verify brush panels remain seated after transport and seismic events per site standards. The product supports high-density switching projects where cable count exceeds knockout capacity on factory panels. Technicians trim excess bristle length only when manufacturer guidance allows custom apertures. Document cable fill ratios to maintain airflow targets defined by ASHRAE guidelines for enclosed racks. The panel aids compliance with cable bend radius requirements by providing a wide, soft exit plane. Mixed vendor patch cords route without adapter changes because the opening is media agnostic. Brush panels complement vertical finger ducts on the same rack unit stack for end-to-end pathway control. Stock spare panels to accelerate turnup when new switch generations increase port density. The rigid frame maintains square alignment even when installers torque mounting hardware to rack vendor specs. Cable grooming becomes faster because all pass-through leads share one labeled exit point on rack diagrams.

Key Features

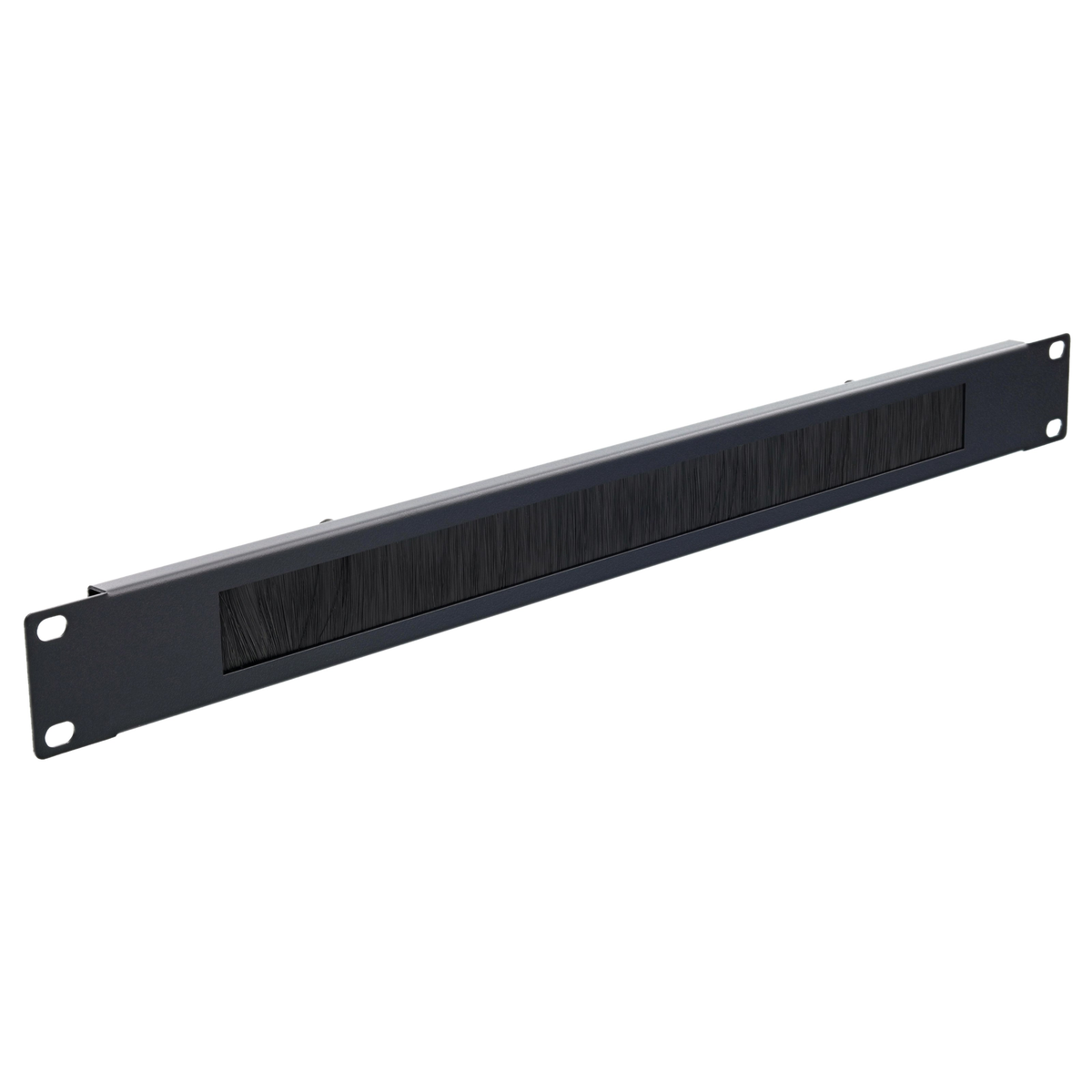

• 1U Rack-Mount Frame
  Steel chassis fits standard 19-inch posts with EIA-310-D mounting holes.

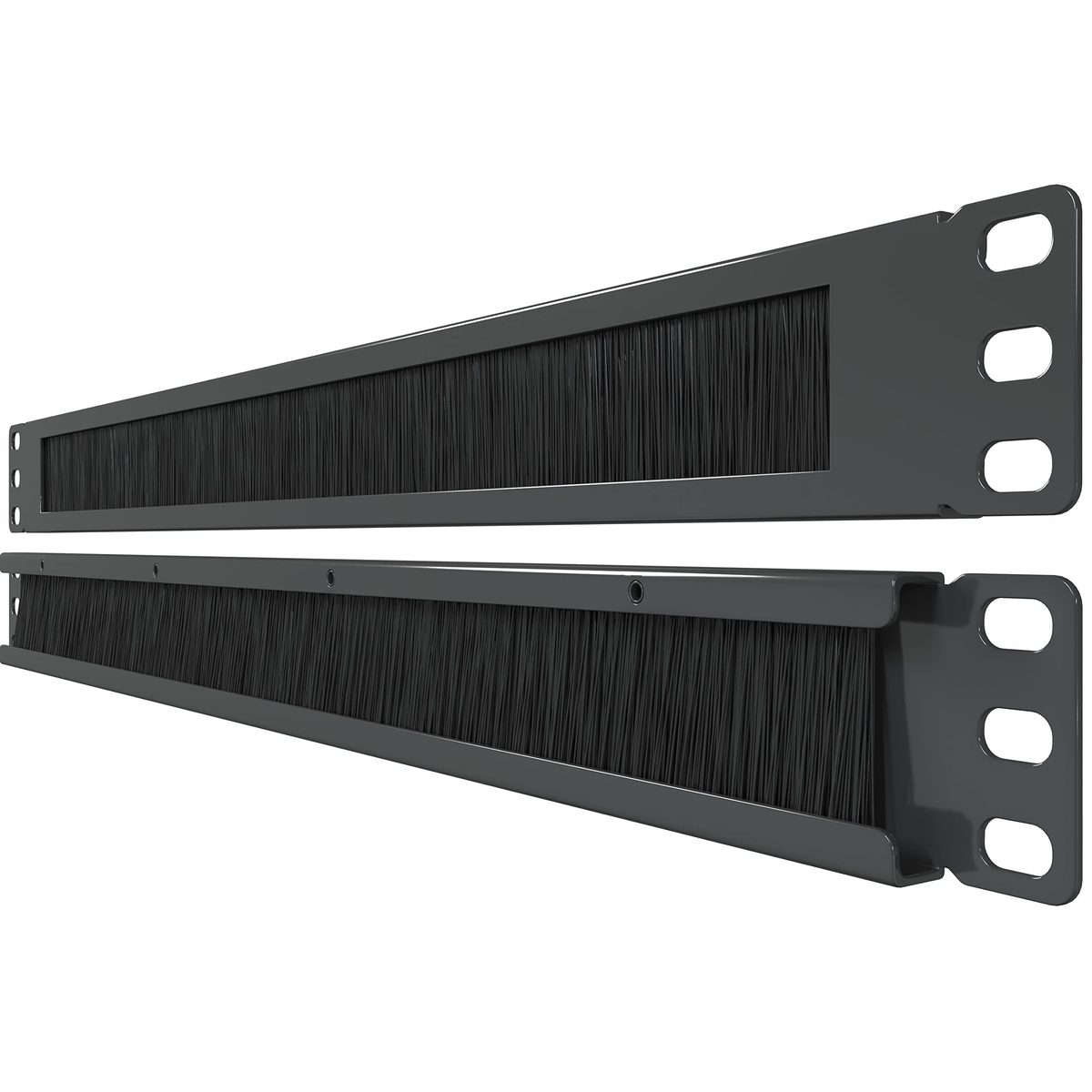

• Dense Nylon Brush Strip
  Flexible bristles seal the opening while allowing repeated cable insertion and removal.

• Mixed Cable Diameter Support

  • Accepts thin fiber jumpers and thick shielded copper patch cords
  • Reduces pinching on cable jackets during high-density routing

• Dust and Airflow Control
  Bristle field limits particulate ingress into enclosed switch bays.

Specifications

What’s in the Box

• 1U brush cable pass-through panel with steel frame

• Mounting hardware for 19-inch rack installation

Why Choose Brush Cable Panel

• Sealed pass-through preserves containment while supporting dense patch cable counts.

• Standard 1U height integrates with horizontal managers and blanking plates on the same rack.

• Media-agnostic opening routes copper, fiber, and KVM without separate knockout plates.
