Giganet 1U Cable Manager Closed GN-290009, 19-Inch Rackmount, ABS Cover
Original price was: KSh 3,100.00.KSh 2,400.00Current price is: KSh 2,400.00. ex VAT
Giganet 1U Cable Manager Closed GN-290009, 19-Inch Rackmount, ABS Cover
| Model | GN-290009 |
| Type | Horizontal closed cable manager |
| Rack height | 1U (44.45 mm) |
| Rack width | 19-inch (482.6 mm) |
| Material | High-impact ABS plastic |
| Cover | Snap-on front cover |
| Cable capacity | Up to 50 Cat6/Cat6A cables |
| Colour | Matte black |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

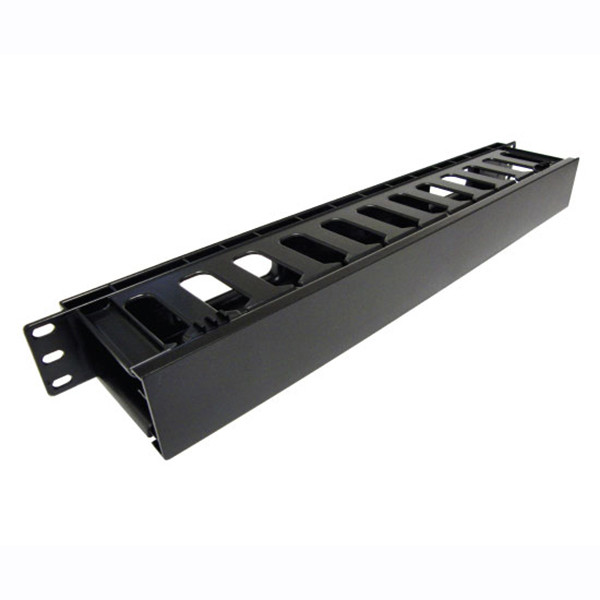

Closed Horizontal Cable Routing Panel
The Giganet 1U cable manager is a closed horizontal panel that routes patch cords across a standard 19-inch rack. A snap-on ABS cover conceals the bundle and keeps bends inside the duct. The unit occupies 1U of vertical space and ships with pre-drilled mounting holes for cage nuts or threaded rails.
Slotted finger ducts separate incoming and outgoing patch leads and hold bend radius above the minimum for Cat6 and Cat6A. The panel carries up to 50 cables depending on jacket diameter. A matte black finish matches patch panels, switches and PDU hardware mounted in the same cabinet.
Cold-rolled steel and high-impact ABS variants share the same mounting footprint. The 44.45 mm height aligns with standard rack unit spacing, so installers fit the panel between switches without moving rail positions. Remove the front cover for adds, moves and changes, then snap it back into place.
Key Features
Closed Front Cover
The snap-on ABS cover hides the cable bundle and shields patch leads from dust and accidental snags.Slotted Finger Duct
- Separates incoming and outgoing patch leads
- Maintains bend radius for Cat6 and Cat6A jackets
- Holds up to 50 cables by diameter
19-Inch Rack Mounting
Pre-drilled ears align with standard 482.6 mm rack rails and accept M6 cage nuts or threaded fixings.44.45 mm Height
The panel occupies exactly one rack unit so it sits flush between switches and patch panels.Tool-Free Cover Removal
Technicians lift the front cover by hand during MAC work and clip it back without tools.Matte Black Finish
Powder-coated or moulded black surfaces match nearby 19-inch equipment and resist fingerprints in service cabinets.
Specifications
| Feature | Specification |
|---|---|
| Model | GN-290009 |
| Type | Horizontal closed cable manager |
| Rack height | 1U (44.45 mm) |
| Rack width | 19-inch (482.6 mm) |
| Material | High-impact ABS plastic; steel base on metal variant |
| Cover | Snap-on front cover |
| Duct design | Slotted fingers |
| Cable capacity | Up to 50 Cat6/Cat6A cables |
| Colour | Matte black |
| Mounting | Pre-drilled 19-inch ears |
| Compliance | ISO 9001, RoHS, CE |
| Application | Data centres, server rooms, telecom closets |
What’s in the Box
Giganet 1U closed cable management panel
Front cover
Cage nuts and mounting screws
Why Choose the Closed Cable Duct
A covered horizontal duct keeps patch leads out of sight and reduces airflow obstruction in dense cabinets.
Finger slots hold bend radius above the minimum for copper patch cords, which limits return loss and crosstalk drift.
The one-rack-unit footprint fits between switches and panels without re-spacing rail hardware.
Tool-free cover removal speeds up adds, moves and changes during maintenance windows.
Black moulded housing and steel reinforcement options suit both light distribution frames and heavy patch bundles.
