Mecer Astro 2.2kW 380V 3-Phase VFD

Astro 2.2kW VFD

The Mecer Astro 2.2kW variable frequency drive delivers precise AC motor speed control for industrial pumps, fans, conveyors, and general machinery. This 2.2 kW unit operates on three-phase 380V input and converts fixed-line frequency into adjustable output for energy-efficient motor operation. The Astro series architecture supports vector control principles that maintain torque across a wide speed range while reducing mechanical stress on driven equipment.

Engineers specify this drive when retrofitting constant-speed motors that benefit from variable output. Reducing motor speed during partial load conditions lowers power consumption compared with throttling valves or dampers. The 380V three-phase input aligns with standard industrial distribution panels found in factories, workshops, and process plants across East Africa and similar markets.

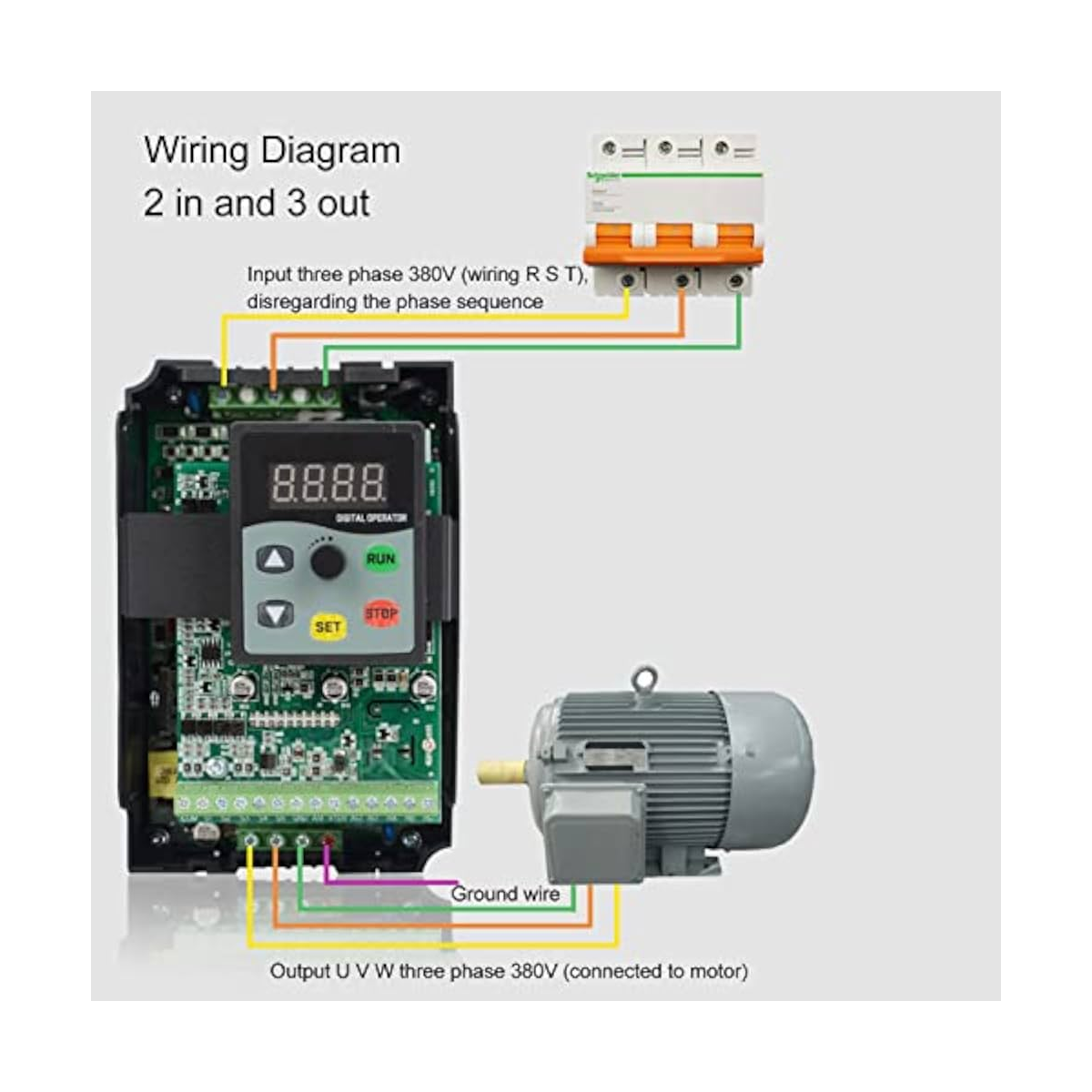

Install the drive inside a ventilated electrical enclosure with adequate clearance for heat dissipation. Input wiring requires appropriately rated circuit breakers or fuses sized for motor inrush and drive continuous current draw. Output terminals connect to the motor leads; use shielded cable when routing near sensitive instrumentation to limit electromagnetic interference from switching frequencies.

Parameter groups control acceleration time, deceleration time, maximum frequency ceiling, and minimum operating speed. Set the motor nameplate voltage and rated current during initial commissioning so the drive matches protection curves to the connected load. Overcurrent, overvoltage, and undervoltage trip thresholds guard the inverter stage and motor windings during grid disturbances or mechanical jams.

Maintenance involves periodic inspection of terminal tightness, enclosure filters, and heat sink cleanliness. Log fault codes from the front panel display during service calls to identify recurring issues such as phase loss or DC bus anomalies. Stock a spare unit for critical pump or fan circuits where downtime affects production continuity or environmental control.

Key Features

• 2.2 kW Rated Output
  Delivers 2.2 kilowatts of continuous motor power for small to medium industrial loads.

• Three-Phase 380V Input
  Accepts standard industrial three-phase supply voltage for direct panel integration.

• Variable Frequency Control

  • Adjustable output frequency for precise motor speed regulation
  • Soft-start ramping reduces inrush current and mechanical shock at startup

• Industrial Motor Applications

  • Suitable for centrifugal pumps, axial fans, and belt conveyors
  • Supports HVAC blower retrofits and water treatment pump control

• Astro Series Platform
  Shares common programming interface and parameter structure with other Mecer Astro drives.

Specifications

What’s in the Box

• Mecer Astro 2.2G-T4 variable frequency drive unit

• Installation and operation documentation

Why Choose Astro 2.2kW VFD

• Matches common 2.2 kW motor ratings used in industrial auxiliary equipment

• 380V three-phase input eliminates need for step-down transformers in standard plants

• Variable speed operation cuts energy use on fan and pump applications with variable demand

• Soft-start capability extends bearing and coupling life on frequently cycled motors

• Compact drive footprint suits control cabinet retrofits with limited panel space
