Logitech Tap Table Mount 939-001811 Grommet Mount with 180° Swivel and Cable Routing

Grommet Bracket for Meeting Room Controllers

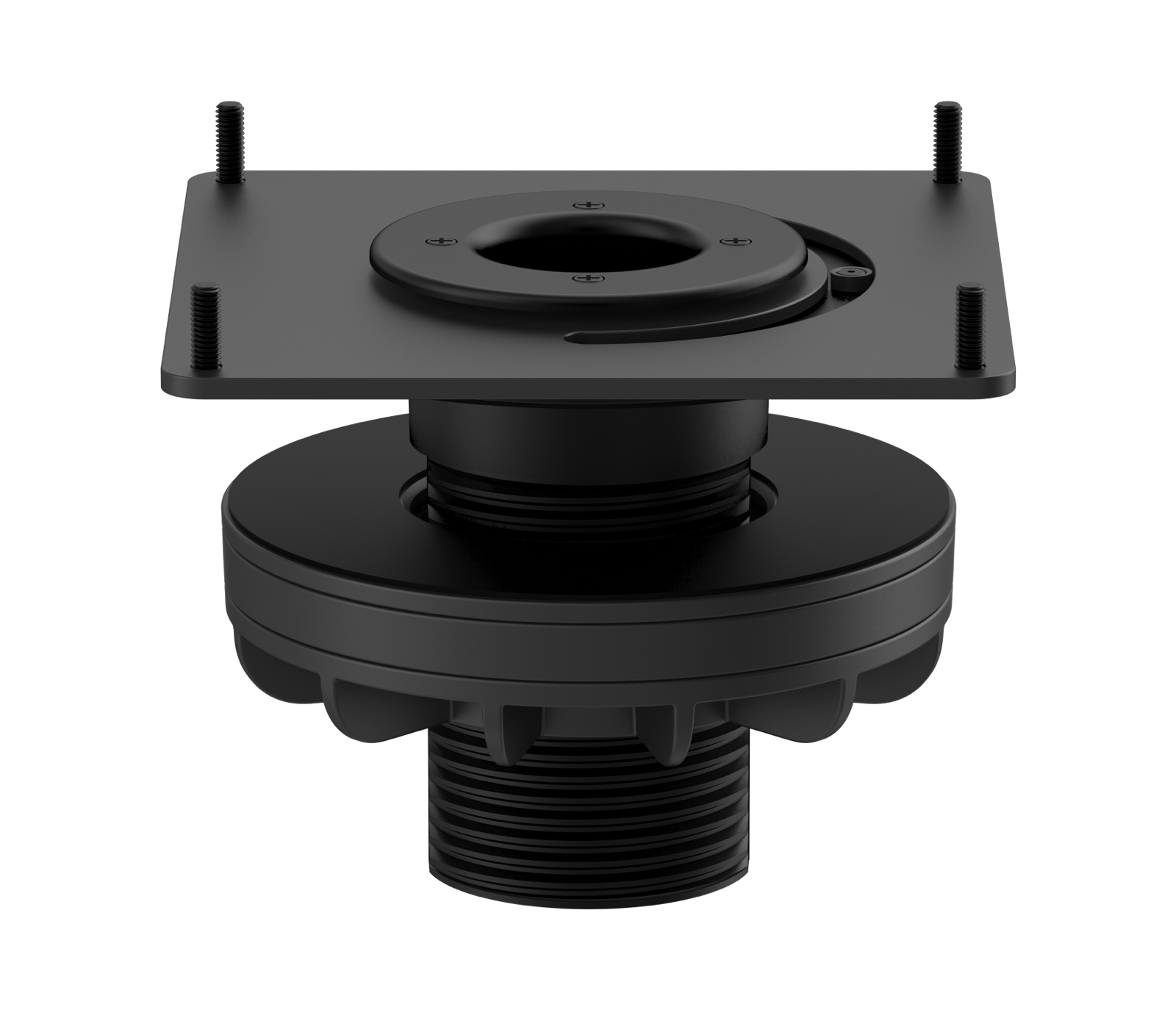

The Logitech Tap table mount anchors a Tap or Tap IP touch controller to a conference table through a standard grommet cut-out. The assembly holds the controller at a fixed 14° screen angle and adds 180° of rotation for shared use across the table.

Two clamping plates adjust to table thickness between 20 mm and 50 mm. The stem passes through grommet holes measuring 51 mm to 89 mm in diameter. Once tightened, the plate grips the tabletop from above and below while the controller stays flush with the surface.

Cables route down through the hollow stem and out of sight below the desk. A cable cinch relieves strain on the USB, HDMI and power leads. Installers can pair the bracket with a Cat5e kit for Tap or a PoE drop for Tap IP.

Key Features

• Fixed 14° Viewing Angle
  The plate reproduces the stock screen tilt of the standalone controller, so interface layout and reach stay predictable for every user.

• 180° Pivot for Two-Sided Access
  A seated user on either side of the table can rotate the controller to face them without lifting the unit out of the bracket.

• Table and Grommet Sizing Range

  • Table thickness: 20 mm to 50 mm (0.75 in to 2.0 in).
  • Grommet hole diameter: 51 mm to 89 mm (2.0 in to 3.5 in).
  • Down-routing channel accepts the controller’s USB, HDMI and power runs.

• Integrated Cable Cinch
  The supplied cinch clamps the lead bundle under the plate and stops pull forces from reaching the rear connector of the controller.

• Pre-Assembled Mounting Hardware
  The kit arrives as one assembly with documentation, which shortens on-site install time in occupied meeting rooms.

• Black Finish to Match the Controller
  The bracket ships in black so it blends with the Tap housing and with most laminate and veneer table finishes.

Specifications

What’s in the Box

• Table mount assembly

• Cable cinch

• Documentation

Why Choose the Logitech Tap Grommet Bracket

• The grommet hole mount retrofits existing table cut-outs, so a room does not need new drilling or a replacement worktop.

• Rotation keeps a single controller usable from both seating rows in narrow or long rooms.

• Hidden cable runs remove trip hazards and stop loose leads from sliding across the work surface during meetings.

• The controller mount ships with a two-year limited hardware warranty, which suits multi-room commercial rollouts.

• Logitech publishes the accessory alongside Tap and Tap IP room documentation, so engineers can verify fit before ordering.
