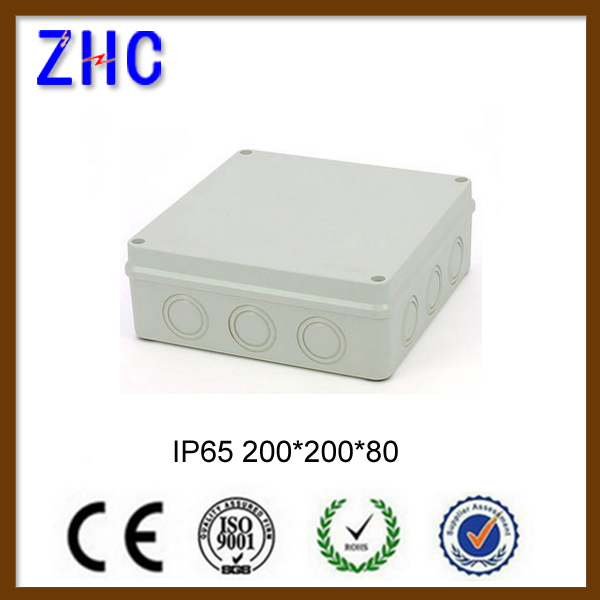

OEM 200x200x80mm IP66 PVC Adapter Box

200x200x80mm Adapter Box

The OEM 200x200x80 Adapter Box serves as a primary junction point for industrial electrical systems and network terminations. This enclosure utilizes high-density PVC to maintain structural integrity under physical stress. It provides an internal volume of 3,200 cubic centimeters for housing sensitive components. The IP66 rating ensures total protection against dust ingress and high-pressure water jets. Engineers deploy this unit in environments requiring reliable moisture barriers for outdoor sensor arrays. The 80mm depth allows for the installation of deeper components like switching power supplies or large terminal blocks.

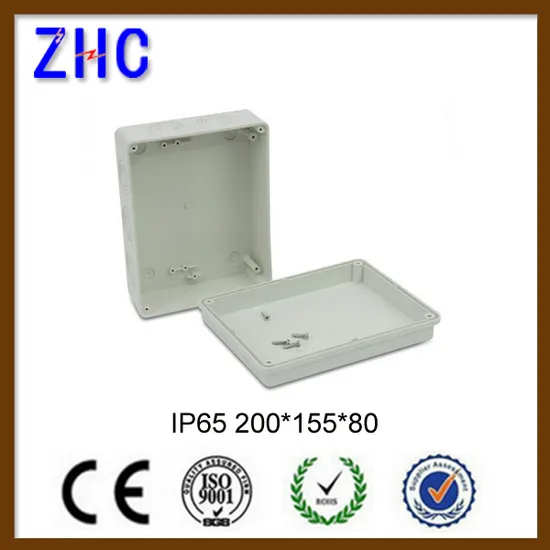

The lid attaches via four stainless steel screws located at the corners of the housing. These screws thread into reinforced plastic pillars to prevent stripping during high-torque installation. A pre-fitted rubber gasket sits within a dedicated channel on the lid underside. This design ensures a uniform seal when the technician applies the recommended fastening force. The flat surface of the enclosure walls simplifies the drilling of entry holes for custom wiring. You can install standard cable glands or conduit fittings without compromising the structural wall strength. The grey RAL 7035 finish provides neutral aesthetics for modern industrial facilities.

Internal mounting bosses facilitate the secure attachment of DIN rails or customized mounting plates. These bosses accept standard self-tapping screws for rapid hardware placement. The UV-stabilized material prevents brittleness when the unit is exposed to direct sunlight for extended periods. This makes the housing suitable for rooftop or external wall installations in harsh climates. The enclosure resists common industrial chemicals and oils found in manufacturing zones. This chemical resistance extends the service life in factory settings where airborne contaminants are present.

The unit functions across a wide temperature range for diverse regional deployments. It maintains its impact resistance even in sub-zero conditions. The non-conductive nature of the PVC housing enhances safety during routine maintenance. It eliminates the risk of short circuits against the enclosure body during wiring maneuvers. The compact footprint permits installation in tight spaces where larger cabinets cannot fit. This adapter unit streamlines cable management in complex network architectures without adding excessive weight to mounting structures.

Key Features

• High-Impact PVC Construction
  Rigid material prevents deformation during high-torque screw installation or external physical impact.

• Environmental Protection

  • IP66 Ingress Protection rating against water and dust
  • UV-stabilized material for outdoor exposure
  • Integrated rubber gasket seal for airtight closure

• Versatile Mounting Options
  Internal bosses support DIN rail segments and PCB mounting plates for varied hardware configurations.

Specifications

What’s in the Box

• 1x 200x200x80mm Enclosure Base

• 1x Gasketed Screw-down Lid

• 4x Stainless Steel Fixing Screws

Why Choose 200x200x80mm Adapter Box

• High-grade environmental protection for sensitive industrial electronics.

• Easily modified surface for PG11, PG16, or PG21 cable glands.

• Non-corrosive construction ensures longevity in high-humidity coastal environments.
