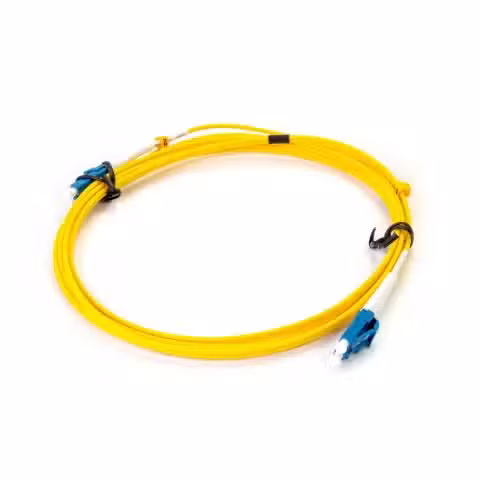

Lightwave LW-PT-LCU-SM LC UPC Single Mode Fiber Pigtail 2m
KSh 100.00 ex VAT
Lightwave LW-PT-LCU-SM LC UPC Single Mode Fiber Pigtail 2m
| Connector | LC UPC |
| Fiber Type | Single Mode OS2 |
| Length | 2 Meters |
| Core/Cladding | 9/125μm |
Shipping & Delivery
Delivery
We deliver to the address you provide. Nairobi CBD is often same-day on business days.
Nairobi CBD or Kenya-wide
Free CBD ≥ KES 20,000; else from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Lightwave LW-PT-LCU-SM Fiber Pigtail

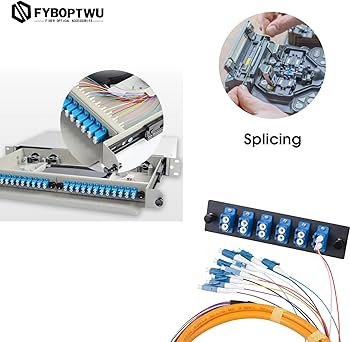

The Lightwave LC Fiber Pigtail provides a high-performance termination solution for optical fiber networks requiring single-mode precision. This 2-meter assembly features a factory-polished LC UPC connector on one end, with the opposite end prepared for fusion or mechanical splicing. It utilizes a 9/125μm core and cladding architecture, ensuring compatibility with standard OS2 infrastructure. Network engineers deploy this component within optical distribution frames (ODF) and termination boxes to bridge incoming outside plant cables with active networking hardware. Consequently, it maintains signal integrity across long-haul and metro-area network spans.
Key Features
Precision LC UPC Connector
The 1.25mm ceramic ferrule provides high-density connectivity while the Ultra Physical Contact polish ensures a return loss of ≥50dB.OS2 Single Mode Performance
Optimized for 1310nm and 1550nm wavelengths, this assembly supports high-bandwidth data transmission with minimal attenuation.900μ-micron Tight Buffer Coating
- Protects the glass fiber during splicing and routing.
- Facilitates easy stripping for rapid field termination.
Specifications
| Feature | Specification |
|---|---|
| Connector Type | LC UPC |
| Fiber Mode | Single Mode (9/125μm) |
| Length | 2 Meters |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Jacket Material | PVC / LSZH (900μm Buffer) |
| Operating Temperature | -40°C to +75°C |
What’s in the Box
- 1 x Lightwave LW-PT-LCU-SM LC UPC Single Mode Fiber Pigtail (2m)
- Factory Test Report Data
Why Choose Lightwave Splicing Solutions
- Standardized LC geometry increases port density in congested rack environments by 50% compared to SC connectors.
- Low insertion loss characteristics minimize the total link loss budget for long-distance transmission.
- Factory-terminated ends eliminate the need for complex field polishing, reducing installation time and potential for error.
- The 2-meter length provides ample slack for multiple fusion splice attempts within standard splice trays.
- Compliance with TIA/EIA-568-C.3 ensures interoperability with multi-vendor patch panels and adapters.
