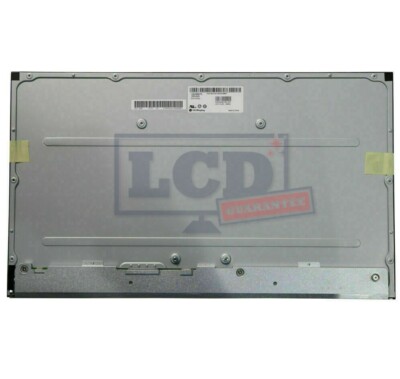

LG LM238WF5-SSA1 23.8″ FHD Touch Screen LCD Panel IPS 30-Pin LVDS
Original price was: KSh 42,600.00.KSh 31,800.00Current price is: KSh 31,800.00. ex VAT
LG LM238WF5-SSA1 23.8″ FHD Touch Screen LCD Panel IPS 30-Pin LVDS
| Model | LM238WF5-SSA1 |
| Diagonal Size | 23.8 inches |
| Resolution | 1920 x 1080 (FHD) |
| Panel Type | a-Si TFT-LCD, IPS mode |
| Touch | Integrated touch sensor |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Viewing Angles | 89/89/89/89 |
| Interface | LVDS, 2 ch, 8-bit, 30 pins |
| Backlight | WLED, no integrated driver |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
23.8-Inch Touch LCD Module for AIO Systems
The LG LM238WF5-SSA1 is a 23.8-inch a-Si TFT-LCD module with an integrated touch sensor, built as a replacement panel for all-in-one desktop systems. It delivers 1920 x 1080 resolution at 60 Hz over a 30-pin LVDS interface. The IPS cell provides 89/89/89/89 viewing angles and 250 cd/m² typical brightness.
The panel carries a 1000:1 contrast ratio and reproduces 16.7 million colours at 72% of the CIE1931 gamut. A WLED backlight without an integrated driver supplies illumination, and the module rates 30,000 hours of backlight life. The touch layer bonds to the cell, so the assembly includes the digitizer and cover glass.
Physical wiring uses a 2-channel, 8-bit LVDS connector with 30 pins. The module operates from a standard LCD supply rail and requires an external LED driver for the backlight. Pixel density reaches 92 PPI. The panel targets service replacement in AIO chassis such as the Dell OptiPlex 7400 and 7460 series, where the original LG panel carries the same part number.
Key Features
- Full HD IPS Touch Cell
The 1920 x 1080 IPS panel includes an on-cell touch sensor and delivers 250 cd/m² typical luminance. - 30-Pin LVDS Interface
- 2-channel, 8-bit LVDS signalling at 60 Hz.
- 30-pin connector matches the standard AIO panel pinout.
- WLED Backlight Without Driver
The white LED string requires an external driver board, which keeps the module thickness low. - Wide Viewing Angles
The IPS mode maintains 89-degree viewing symmetry on all four axes with a 1000:1 contrast ratio. - Service Replacement Form Factor
The 23.8-inch diagonal and mounting pattern suit AIO chassis that accept the LM238WF5 family. - Touch Digitizer Integration
The bonded touch layer removes the need for a separate overlay during panel replacement.
Specifications
| Feature | Specification |
|---|---|
| Model | LM238WF5-SSA1 |
| Diagonal Size | 23.8 inches |
| Resolution | 1920 x 1080 (FHD) |
| Pixel Density | 92 PPI |
| Panel Type | a-Si TFT-LCD, IPS mode |
| Touch | Integrated touch sensor |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Viewing Angles | 89/89/89/89 (CR≥10) |
| Colours | 16.7M, 72% CIE1931 |
| Refresh Rate | 60 Hz |
| Interface | LVDS, 2 channels, 8-bit, 30 pins |
| Backlight | WLED, no integrated driver |
| Backlight Life | 30,000 hours |
| Supply | External LCD and LED driver rails |
| Application | AIO desktop replacement panel |
What’s in the Box
- LM238WF5-SSA1 23.8-inch touch LCD module
Why Choose the LM238WF5-SSA1
- The bonded touch layer reduces the number of parts a technician handles during an AIO screen swap.
- The 30-pin LVDS connector matches the standard pinout used across the LM238WF5 family.
- IPS viewing symmetry keeps colours consistent when the AIO sits at an angle on a reception desk.
- A 250 cd/m² output suits indoor office and retail lighting without an extra brightness boost.
- 92 PPI text rendering remains legible at normal desktop viewing distance.
