LG LM215WF9-SSA1 21.5-Inch AIO LCD Panel – 1920×1080 IPS, 30-Pin LVDS, 250 Nits
Original price was: KSh 38,300.00.KSh 28,800.00Current price is: KSh 28,800.00. ex VAT
LG LM215WF9-SSA1 21.5-Inch AIO LCD Panel – 1920×1080 IPS, 30-Pin LVDS, 250 Nits
| Model | LM215WF9-SSA1 |
| Size | 21.5 inches |
| Resolution | 1920 x 1080 (FHD) |
| Panel type | IPS, a-Si TFT-LCD |
| Brightness | 250 cd/m² |
| Contrast | 1000:1 |
| Viewing angles | 89/89/89/89 |
| Colour gamut | 72% CIE1931, 16.7M colours |
| Interface | 30-pin LVDS, 2 ch, 8-bit |
| Input voltage | 5.0 V |
| Surface | Matte, 25% haze, 3H |
| Refresh rate | 60 Hz |
| Response time | 14 ms (g to g) |
| Backlight | WLED, 30,000 hours |
| Outline | 484.5 x 284.4 x 12.7 mm |
| Weight | 1.59 kg typical |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description

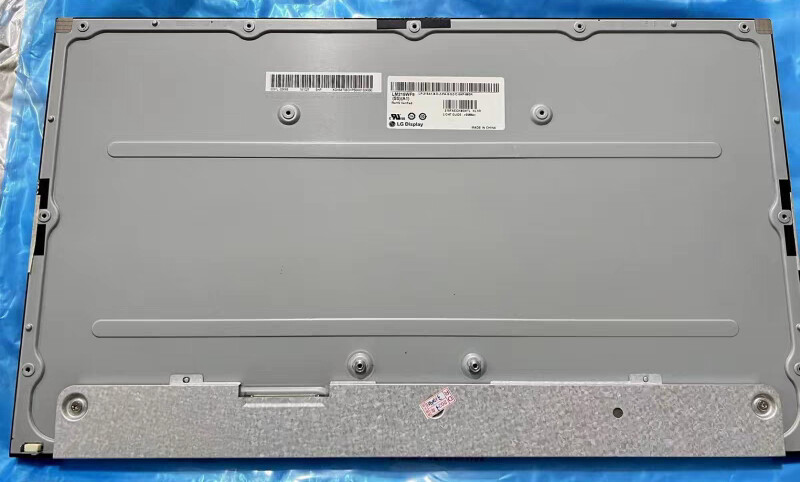

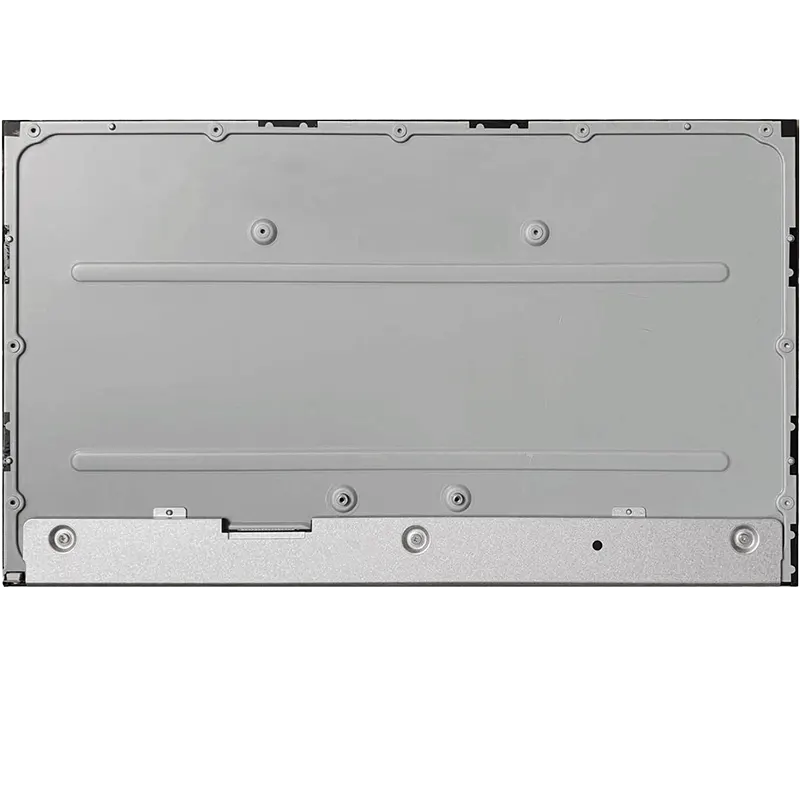

21.5-Inch AIO Panel Replacement
The LG LM215WF9 AIO panel is a 21.5-inch a-Si TFT-LCD module with a native 1920 x 1080 resolution. It uses IPS technology for 89-degree viewing angles on all four axes. The matte surface treatment carries a 25% haze and 3H hard coating.
The panel delivers 250 cd/m² typical brightness and a 1000:1 contrast ratio. It reproduces 16.7 million colours across 72% of the CIE1931 gamut. Pixel density sits at 102 PPI. A WLED backlight rated for 30,000 hours illuminates the display.
A 30-pin LVDS interface carries two channels of 8-bit data at 5.0 V. The outline measures 484.5 x 284.4 x 12.7 mm and the module weighs 1.59 kg typical. Operating temperature spans 0 to 50°C, with storage from -20 to 60°C.
Key Features
Full HD IPS Panel
The 1920 x 1080 resolution across 21.5 inches yields 102 PPI for sharp text and clear spreadsheet rendering.30-Pin LVDS Interface
- Two channels of 8-bit data at 5.0 V typical
- Matches the connector layout on many all-in-one PC mainboards
- No additional driver board required for compatible hosts
Wide Viewing Angles
IPS technology holds 89/89/89/89 degree viewing angles at a 10:1 contrast threshold.Matte Surface Treatment
A 25% haze anti-glare finish with 3H hard coating reduces reflections and resists scratches.1000:1 Contrast Ratio
The panel separates dark and light tones for document review and video playback.WLED Backlight
A 13s4p white LED array rated for 30,000 hours provides the illumination source.
Specifications
| Feature | Specification |
|---|---|
| Model | LM215WF9-SSA1 |
| Panel size | 21.5 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel technology | a-Si TFT-LCD, IPS |
| Brightness | 250 cd/m² typical |
| Contrast ratio | 1000:1 typical |
| Viewing angles | 89/89/89/89 degrees (CR≥10) |
| Colour depth | 16.7 million colours |
| Colour gamut | 72% CIE1931 |
| Pixel density | 102 PPI |
| Display area | 476.064 x 267.786 mm |
| Outline dimensions | 484.5 x 284.4 x 12.7 mm |
| Surface treatment | Matte, haze 25%, 3H hard coating |
| Response time | 14 ms (typical, grey to grey) |
| Refresh rate | 60 Hz |
| Interface | LVDS, 2 channels, 8-bit, 30 pins |
| Input voltage | 5.0 V typical |
| Backlight | WLED, 13s4p, 30,000 hours |
| Weight | 1.59 kg typical, 1.67 kg maximum |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
What’s in the Box
LM215WF9-SSA1 21.5-inch LCD panel
Protective packaging
Why Choose This AIO Panel
The 30-pin LVDS interface matches common AIO mainboards, which shortens repair bench time.
The 1920 x 1080 resolution and 102 PPI density suit document work and point-of-sale applications.
IPS viewing angles keep the screen readable when staff view it from an angle.
The 25% haze matte finish cuts reflections under overhead office lighting.
A 30,000-hour backlight rating supports continuous operation in retail and reception settings.
The 3H hard coating resists scratches during cleaning and daily use.
