Lenovo ThinkPad X1 Yoga 3rd Gen 14-Inch FHD Touch Screen Assembly 30-Pin eDP

14-Inch Convertible Display Module

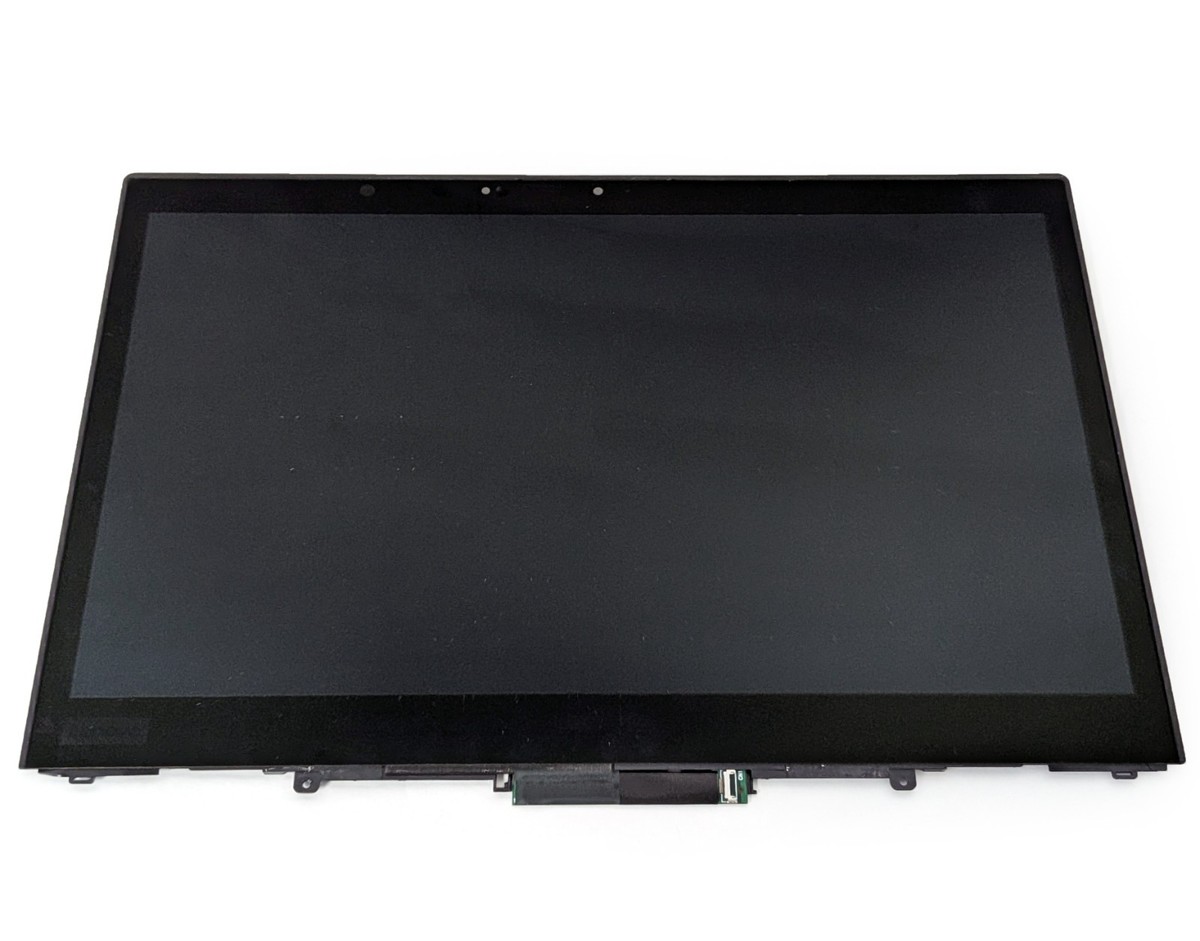

The Lenovo X1 Yoga screen assembly replaces a cracked or unresponsive 14-inch panel in the third-generation ThinkPad convertible. It arrives as a sealed unit with the LCD, capacitive digitizer and bezel frame already bonded. The 30-pin eDP tail and touch ribbon follow the factory routing points.

The 14.0-inch IPS panel runs 1920 × 1080 at 60 Hz with 250 cd/m² typical brightness and 178° viewing angles on both axes. Two eDP 1.2 lanes reach a 30-pin connector at the bottom right. Ten-point capacitive touch accepts finger and active pen input.

Fitment covers ThinkPad types 20LD, 20LE, 20LF and 20LG in FHD touch configurations. WQHD variants use a different pin count and will not seat on this connector. Technicians should read the part number on the rear of the original panel before ordering.

Key Features

• 14-Inch FHD IPS Panel
  The panel resolves 1920 × 1080 at 157 PPI, which matches the factory pixel density of the FHD touch configuration.

• 30-Pin eDP Interface
  A 30-pin eDP 1.2 connector sits at the bottom right, and a separate ribbon carries touch signals to the mainboard.

• Bonded Touch Digitizer

  • Ten-point capacitive multi-touch layer laminated to the LCD
  • Active pen input supported across the full panel area
  • Integrated touch controller board on the assembly

• Sealed Module with Bezel Frame
  The LCD, digitizer and frame ship as one part, which removes glass separation from the repair procedure.

• Surface and Brightness
  A glossy finish and 250 cd/m² typical output suit indoor office and meeting-room use.

• Chassis Compatibility Boundaries

  • Fits ThinkPad X1 Yoga 3rd Gen types 20LD, 20LE, 20LF and 20LG
  • FHD touch variants only; WQHD panels use a 40-pin connector
  • Bezel camera cut-out varies between revisions

• Workshop Handling
  The unit ships in rigid foam-lined packaging, and handlers should support the assembly by its edges during fitting.

Specifications

What’s in the Box

• 14-inch FHD touch display assembly with bezel frame

• Pre-routed 30-pin eDP tail

• Touch ribbon cable

• Protective film and anti-static packaging

• Handling documentation

Why Choose This Assembly

• A single part restores both image output and finger input, so technicians avoid a two-stage glass swap.

• The 30-pin eDP signal path matches the original mainboard connector without an adapter board.

• IPS technology keeps colour and contrast stable across the convertible’s tent, stand and tablet positions.

• The pre-routed ribbon and frame shorten bench time on fleet repairs where units must return to service quickly.

• Confirming the original part number against the listed FRUs prevents a wrong-revision purchase.
