Lenovo Flex 5 14IAU7 14-Inch WUXGA Touch Screen Assembly 30-Pin

Replacement WUXGA Touch Display Module

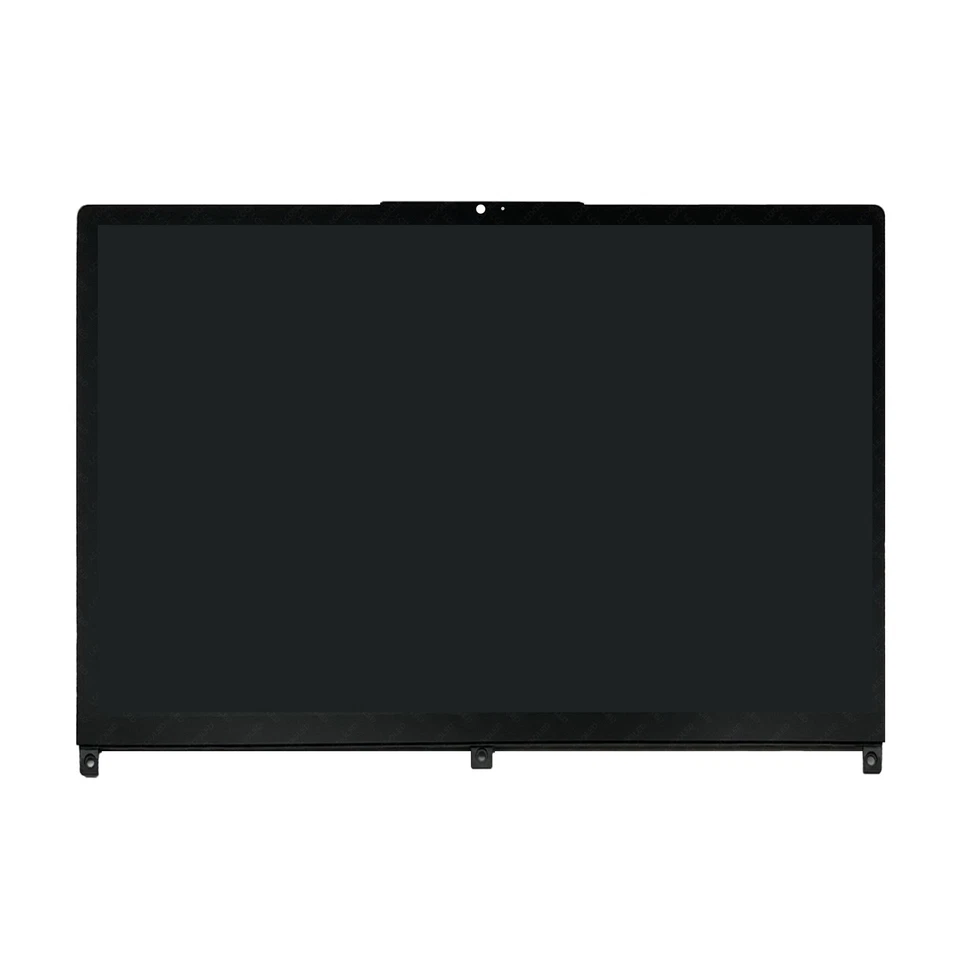

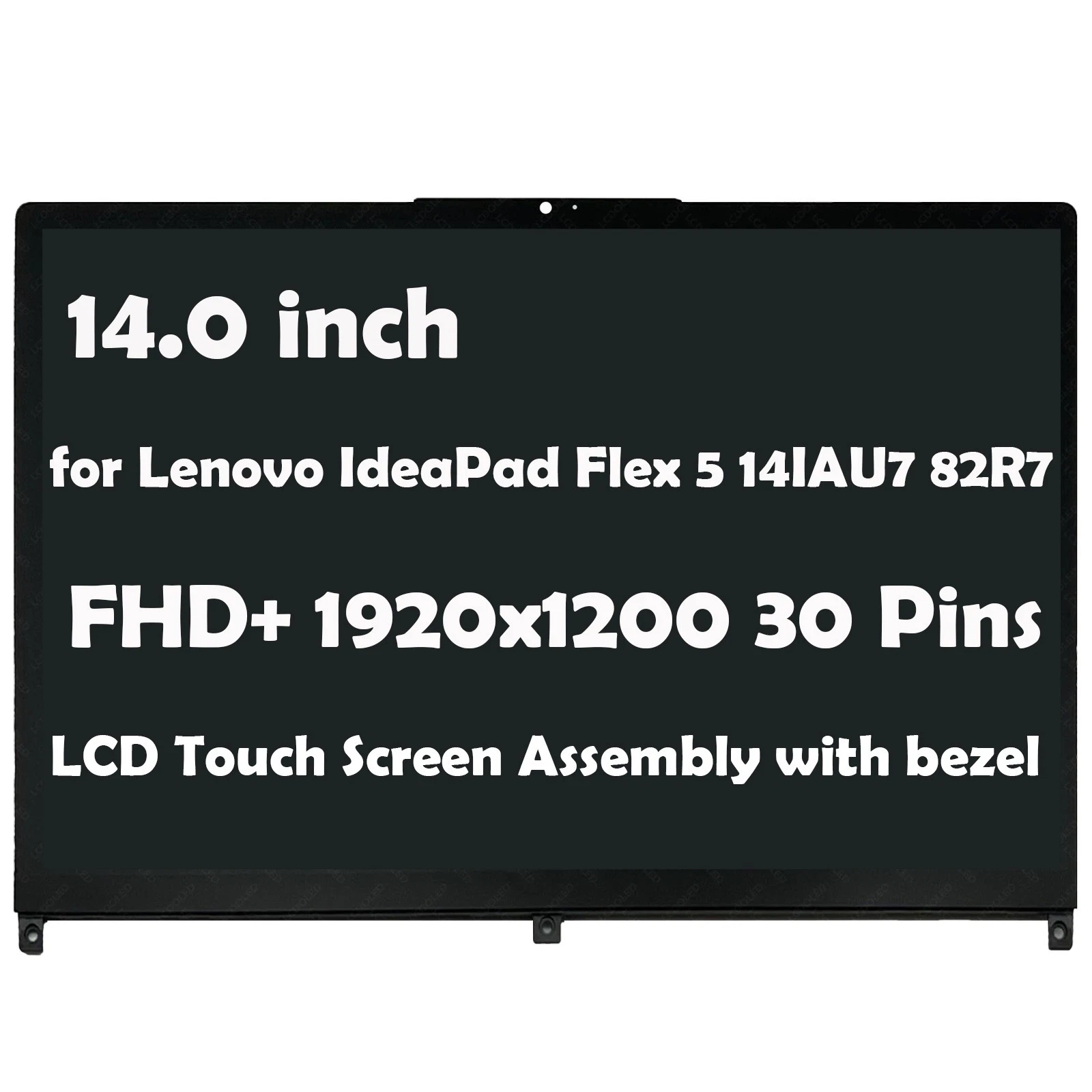

The Lenovo Flex 5 14IAU7 touch assembly supplies the LCD panel, digitizer glass and frame as one sealed module. It fits IdeaPad Flex 5 14IAU7 chassis revisions sold under machine types 82R7 and 82TA. The native panel resolution is 1920 x 1200 WUXGA on a 14-inch diagonal.

The IPS panel reaches 300 nits typical brightness and covers 45% NTSC. A 60 Hz refresh rate and LED backlight match the factory display behaviour. The glossy glass surface carries a 10-point multi-touch digitizer and supports an active pen on configurations that shipped with pen support.

One 30-pin eDP ribbon runs from the bottom-right of the panel to the mainboard, with a separate touch connector on the same side. TÜV Low Blue Light certification reduces short-wavelength output during long sessions. Technicians should compare the original panel label before ordering because 40-pin variants exist in the same chassis family.

Key Features

• 1920 x 1200 WUXGA Panel
  The 16:10 IPS matrix runs at 60 Hz and displays 1920 x 1200 pixels without scaling.
• 300-Nit Glossy Finish
  The LED backlight reaches 300 cd/m² for indoor use under office lighting.
• 10-Point Multi-Touch Digitizer
  • Capacitive touch layer supports Windows gestures
  • Active pen input works on pen-upgradable configurations
  • Bonded glass removes parallax between the touch layer and LCD
• 30-Pin eDP Interface
  The bottom-right ribbon carries video and backlight power; a separate touch connector sits beside it.
• TÜV Low Blue Light
  The panel reduces blue-light emission without shifting the on-screen colour balance.
• Complete Frame Assembly
  The module arrives with bezel and frame fitted, so repairers transfer cables instead of bonding glass.

Specifications

What’s in the Box

• 14-inch WUXGA touch display assembly with frame
• Protective packaging

Why Choose This Display Module

• One part replaces cracked glass, a failed digitizer and a dim backlight at the same time.
• The 1920 x 1200 panel preserves the factory 16:10 workspace used by the Flex 5 chassis.
• Part references 5D10S39785, 5D10S39787 and 5D10S39788 simplify matching against the original label.
• The 30-pin ribbon removes the need to adapt a 40-pin mainboard connector.
• The sealed frame reduces dust ingress during reassembly and speeds bench turnaround.
