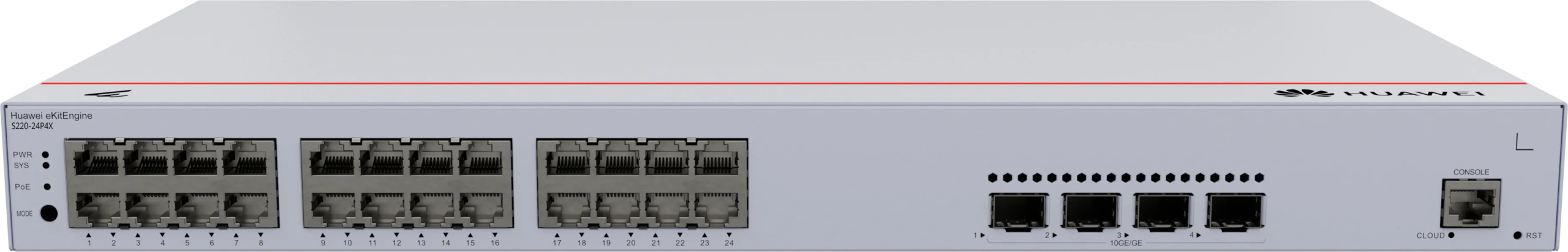

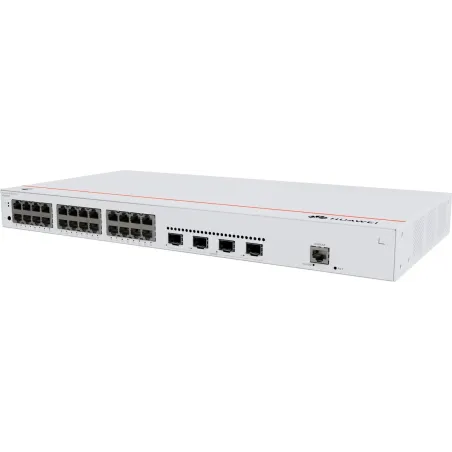

Huawei S220-24T4X 24-Port Gigabit L2 Managed Switch with 4x 10GE SFP+
Original price was: KSh 66,200.00.KSh 49,800.00Current price is: KSh 49,800.00. ex VAT
Huawei S220-24T4X 24-Port Gigabit L2 Managed Switch with 4x 10GE SFP+
| Ports | 24 x 10/100/1000BASE-T RJ45 |
| Uplinks | 4 x 10GE SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Performance | 95 Mpps |
| Power | Built-in AC, 100–240 V |
| Form Factor | 1U rack-mount |
| PoE | Not supported |
Same day Delivery
Delivery
We deliver to the address you provide. Nairobi is often same-day on business days.
Across the country
Delivery outside CBD starts from KES 300
Warranty 1 year
72-hour (3-day) returns
Description
Gigabit Access Switching with 10GE Uplinks
The Huawei S220-24T4X is a Layer 2 managed access switch for enterprise edge deployments. It provides 24 Gigabit Ethernet downlink ports and four 10GE SFP+ uplink ports in a 1U rack-mount chassis.
The unit delivers 128 Gbps switching capacity and 95 Mpps forwarding throughput. A built-in AC power supply removes the need for external adapters and accepts 100–240 V AC input.
The fan-cooled metal chassis operates from -5°C to 50°C at altitudes up to 1800 m. It supports desktop, wall, or rack installation and suits wiring closets, branch offices, and campus floors.
Key Features
24 Gigabit downlinks and 4x 10GE uplinks
Twenty-four RJ45 ports run at 10/100/1000 Mbit/s, while four SFP+ cages accept 10GE or 1GE optical transceivers and direct attach cables.Layer 2 resilience and traffic control
- 16K MAC address table and 4K VLANs support segmented access networks.
- STP, RSTP, MSTP, and ERPS provide loop prevention and fast ring recovery.
- Link aggregation, DHCP snooping, IGMP snooping, ACLs, and QoS manage multicast and traffic policy.
Built-in AC power and intelligent cooling
The internal AC supply accepts 90–264 V AC and 45–65 Hz input, while the single fan adjusts speed to balance thermal load and acoustic output.Compact 1U metal enclosure
The 43.6 x 442.0 x 220.0 mm chassis weighs 2.32 kg and fits standard 19-inch racks, wall mounts, or desktop placement.Management and cloud onboarding
Operators can use the RJ45 console port, web interface, and cloud connection indicator for local or centralized configuration.
Specifications
| Feature | Specification |
|---|---|
| Ports | 24 x 10/100/1000BASE-T RJ45 |
| Uplink Ports | 4 x 10GE SFP+ (1GE compatible) |
| Switching Capacity | 128 Gbps |
| Forwarding Performance | 95 Mpps |
| MAC Address Table | 16K entries |
| VLANs | 4K |
| Layer 2 Features | STP, RSTP, MSTP, ERPS, link aggregation |
| Traffic Management | ACL, QoS, DHCP snooping, IGMP snooping |
| Management | RJ45 console, web interface, cloud onboarding |
| Power Supply | Built-in AC |
| Rated Input | 100–240 V AC, 50/60 Hz |
| Input Range | 90–264 V AC, 45–65 Hz |
| Maximum Power Consumption | 35.04 W |
| Form Factor | 1U rack-mount |
| Dimensions | 43.6 x 442.0 x 220.0 mm |
| Weight | 2.32 kg |
| Operating Temperature | -5°C to 50°C at 0–1800 m |
| Cooling | Built-in fan, intelligent speed adjustment |
| PoE | Not supported |
What’s in the Box
S220-24T4X access switch
AC power cable
Console cable
Rack mounting kit
Quick start documentation
Why Choose the S220-24T4X
28 physical ports in a 1U footprint give dense copper access with 10GE aggregation.
128 Gbps switching capacity and 95 Mpps forwarding support line-rate Gigabit access.
Built-in AC power, front-to-side airflow, and a wide operating temperature range simplify closet deployment.
Layer 2 resilience features and cloud onboarding reduce configuration and recovery time.
