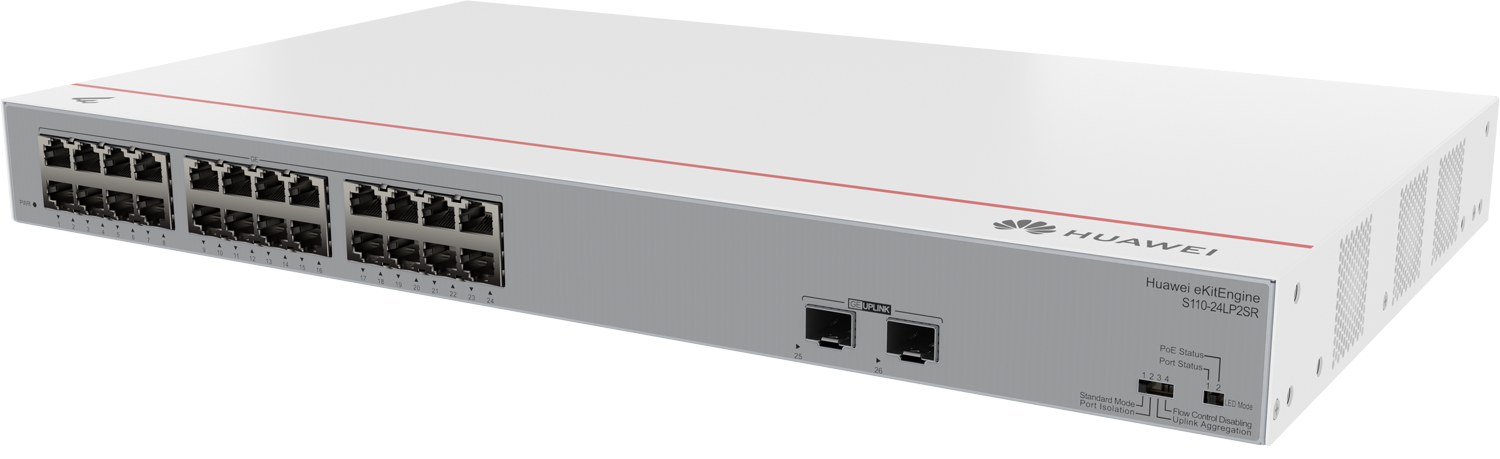

Huawei S110-24LP2SR 24-Port Gigabit PoE+ Switch with 2x GE SFP Uplinks

Gigabit PoE+ Access Switching for SMB Networks

The Huawei S110-24LP2SR is a Layer 2 unmanaged switch that carries data and DC power to endpoints over standard twisted-pair cabling. It provides 24 gigabit copper downlinks and two gigabit SFP uplink slots inside a 1U metal enclosure built for rack, desk or wall installation.

Each copper port runs 10/100/1000BASE-T and supplies IEEE 802.3at PoE+ from a shared 124 W budget, enough to feed IP cameras, access points and VoIP handsets across a single cable pull. Two GE SFP cages accept optical transceivers for fibre runs to a distribution switch or core uplink.

A built-in AC power supply accepts 90 V to 300 V AC input and draws 24 W with no powered devices attached. Full PoE load peaks at 165 W. Natural convection cooling removes the fans entirely, so the unit operates without acoustic noise in occupied workspaces.

Hardware and Deployment Detail

The chassis measures 43.6 x 442.0 x 260.0 mm and weighs 3.2 kg, with surge protection rated at 6 kV in both differential and common mode. A front-panel DIP switch selects operating behaviour without any console session, which keeps commissioning to a physical inspection and a cable test.

Forwarding follows a fixed Layer 2 pipeline: 52 Gbit/s switching capacity, 38.69 Mpps packet rate and an 8K-entry MAC table. The switch stores and forwards frames at line rate on all 24 gigabit ports simultaneously, so uplink oversubscription stays the only design constraint.

Key Features

• 24 Gigabit PoE+ Downlinks
  RJ45 ports negotiate 10/100/1000 Mbps and deliver IEEE 802.3af or 802.3at power, with up to 30 W available on a single port.

• Two GE SFP Uplinks
  Fibre cages accept 1000BASE-SX, LX or EX transceivers for links that exceed copper distance limits or cross electrically noisy plant rooms.

• Fanless 1U Metal Chassis
  Convection cooling supports silent operation in retail floors, classrooms and small wiring closets.

• Selectable Operating Modes

  • Standard forwarding for normal access traffic
  • Port isolation to block peer-to-peer traffic between downlinks
  • Port aggregation to bundle uplink capacity
  • Flow control disabled for latency-sensitive voice and video

• Zero-Touch Commissioning
  No CLI, no management IP and no firmware policy to configure; the unit begins forwarding frames on power-up.

Specifications

What’s in the Box

• Huawei eKitEngine S110-24LP2SR switch unit

• AC power cord

• Quick start guide

Why Choose the S110-24LP2SR

• Fixed-configuration Layer 2 forwarding removes the configuration drift and firmware churn that managed access switches introduce at branch sites.

• A 124 W power pool covers mixed endpoint loads such as four to six dome cameras, several ceiling access points or a full desk-phone rollout.

• Fibre uplink cages give a direct path to a distribution layer without adding a media converter at each closet.

• Wide-range AC input and 6 kV surge immunity suit unstable mains feeds in retail parks and light industrial sites.

• Fanless metal construction means no intake filters, no bearing wear and no scheduled cleaning task.
