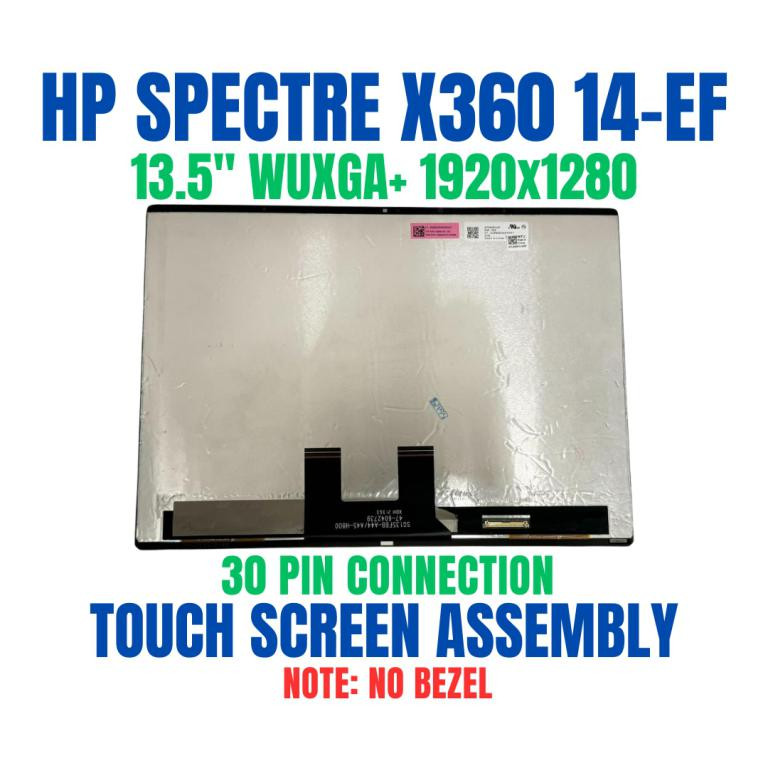

HP Spectre x360 14-EF 13.5-Inch WUXGA+ Touch Screen Assembly 30-Pin eDP 400-Nit IPS

13.5-Inch 3:2 Touch Assembly for Spectre x360 Convertibles

The HP Spectre 14-EF screen is a 13.5-inch touch assembly for the Spectre x360 convertible family. It pairs a 1920 x 1280 IPS panel with a bonded capacitive digitizer on a 30-pin eDP harness. The 3:2 canvas yields 171 pixels per inch and full sRGB coverage.

Resolution stops at 1920 x 1280, so this part replaces the standard 400-nit non-OLED lid only. HP also shipped a 1000-nit Sure View variant and a 3000 x 2000 OLED panel on a 40-pin cable. The connector count separates them at the bench.

The bonded stack removes the air gap between cover glass and LCD, which cuts internal reflections under office lighting. A 1500:1 static contrast ratio holds dark text against white spreadsheet cells. The panel renders 16.7 million colours and measures 89 degrees on all four viewing axes.

Key Features

• 1920 x 1280 WUXGA+ Panel
  The 3:2 active area gives 171 PPI across a 13.5-inch diagonal.

• Bonded Capacitive Digitizer
  Glass and image layer arrive as one sheet, restoring tap and pen input in a single fitting.

• 30-Pin eDP 1.4 Interface
  Two-lane embedded DisplayPort carries video and touch signalling over the original harness.

• 400-Nit IPS Backlight
  The standard-brightness panel suits indoor desks and lecture halls without Sure View privacy filtering.

• Variant Identification Points

  • 30-pin harness plus 1920 x 1280 output confirms the non-OLED 400-nit lid
  • 40-pin harness and 3000 x 2000 output identify the OLED build
  • 1000-nit Sure View units share the 30-pin count but differ by part suffix

• Bezel and Board Transfer
  The plastic bezel casing and digitizer board are not supplied, so technicians move them across from the damaged lid.

Specifications

What’s in the Box

• 13.5-inch 1920 x 1280 touch display assembly, 30-pin

• Protective foam and anti-static packaging

Why Choose the 14-EF Panel

• A matched 400-nit assembly clears cracked glass and dead touch in one service visit rather than two.

• The 3:2 ratio shows 20 percent more vertical rows than 16:9 at the same width, which helps ledger and PDF review.

• sRGB coverage keeps colour consistent for design review without a calibration pass.

• Two-lane eDP at 1.4 revision matches the factory harness, so no adapter or firmware change is required.

• Converting a convertible back to full tablet mode restores the hinge-and-pen workflow staff depend on.

• Spare lids kept on the shelf shorten turnaround for fleet units under accidental damage cover.
