HP Spectre 14-EA Upper Set Gold Complete Top Lid Assembly 13.5-inch 3:2 Touch

Complete Top Lid Module for Spectre x360 14 Convertibles

The HP Spectre 14-EA upper set is a pre-assembled replacement lid for the 14-ea and 14t-ea convertible series. HP supplies the module as a single bolt-on unit that carries the 13.5-inch 3:2 touch display, the front bezel, the gold-accented aluminium rear lid, both hinges, the webcam module, antenna wires and the display ribbon cable. Technicians replace the entire top clamshell instead of separating bonded OLED layers.

The display measures 13.5 inches diagonal in a 3:2 aspect ratio at 3000 × 2000 resolution. The assembly fits 14-ea0xxx, 14-ea1xxx, 14t-ea000 and 14t-ea100 sub-models launched from late 2020 with 11th and 12th generation Intel processors. The gold finish matches the Gem-Cut chassis colourway.

Both left and right hinges arrive pre-fitted and torqued to the lid. The webcam module, dual-array microphones and antenna cables sit in their factory positions. The internal display ribbon terminates at the correct connector for the 14-ea mainboard. The complete module weighs approximately 720 g and ships in protective foam packaging.

Key Features

• Complete Pre-Assembled Lid
  The unit includes the touch panel, digitizer glass, bezel, gold rear cover, hinges, webcam, antennas and display cable.

• 13.5-Inch 3:2 Touch Display

  • 3000 × 2000 resolution at 3:2 aspect ratio
  • OLED and IPS panel options across the range
  • Multi-touch digitizer bonded to the glass

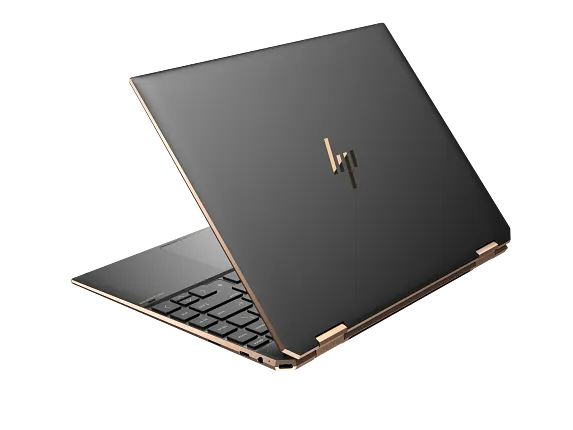

• Gem-Cut Gold Finish
  The anodised aluminium rear lid matches the copper-and-gold Spectre chassis colourway.

• Factory-Fitted Hinges
  Left and right hinges arrive attached and aligned, which removes the need to transfer and re-torque brackets.

• Webcam and Microphone Module
  The HD camera and dual-array microphones sit in their original bezel positions with cables routed.

• Direct Mainboard Connector
  The display ribbon terminates at the native 14-ea connector footprint without adapters.

• Bolt-On Service Procedure
  Four hinge screws and one display connector release the old lid, which cuts fitting time to minutes.

Specifications

What’s in the Box

• Complete 13.5-inch upper set lid assembly in gold

• Pre-fitted left and right hinges

• Webcam module and antenna cables

• Display ribbon cable

• Protective foam packaging

Why Choose the Spectre 14-EA Upper Set

• A complete clamshell removes the risk of cracking a bonded OLED during panel separation.

• Pre-fitted hinges and routed cables shorten repair turnaround at the bench.

• The gold finish matches the original Gem-Cut chassis without respray or wrap.

• Native 3:2 resolution and touch digitizer restore the original convertible behaviour.

• One part number covers 14-ea0xxx, 14-ea1xxx and 14t-ea variants, which simplifies spares stocking.
