HP EliteBook x360 1030 G3 13.3-Inch FHD Touch Display Assembly – 32-Pin eDP, 1920×1080 IPS, Silver

Complete 13.3-Inch Touch Module for the x360 Convertible

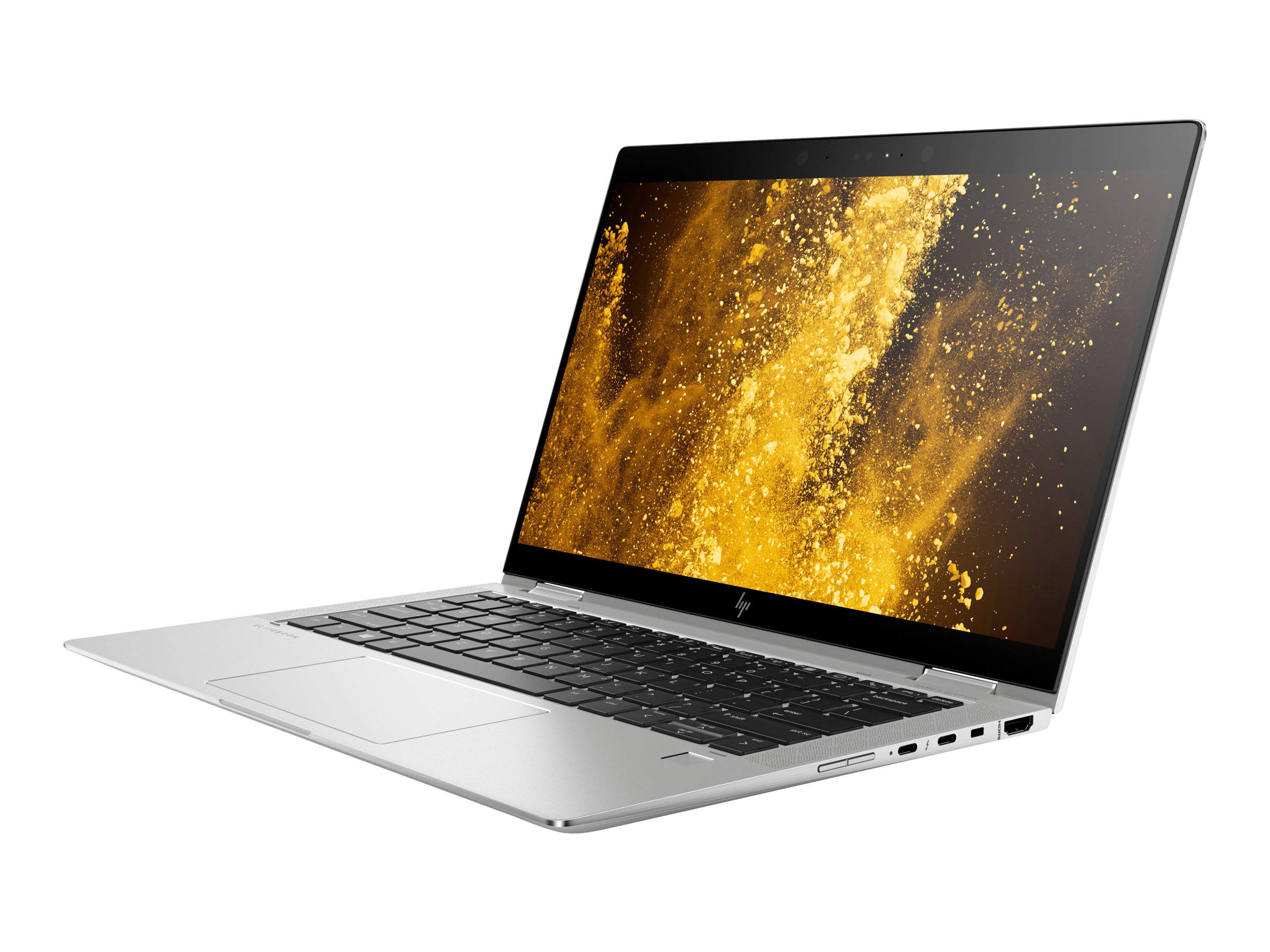

The HP EliteBook x360 1030 display assembly is a complete 13.3-inch replacement module for the convertible chassis. It ships as a bonded unit with the capacitive digitizer, bezel frame and 32-pin eDP cable. Technicians replace the whole upper half rather than separating glass from the LCD.

The panel runs 1920 x 1080 across a 16:9 aspect ratio at 166 PPI. The IPS layer holds 178-degree viewing angles horizontally and vertically, and the backlight reaches approximately 400 nits. Ten-point capacitive touch handles finger and active stylus input across the direct-bonded glass.

The assembly carries the integrated touch controller board and mates with the factory 32-pin eDP connector. Fitment covers units built with the 32-pin touchscreen configuration, including 8th Gen Intel builds. Common replacement part numbers include L31869-001, L31870-001 and L31871-001. The hinge-up module restores laptop, tent, stand and tablet modes after impact damage.

Key Features

• Full HD 1920 x 1080 IPS Panel
  The 13.3-inch panel delivers 166 PPI and 178-degree viewing angles on both axes for document, spreadsheet and presentation work.

• Complete Hinge-Up Assembly

  • LCD panel bonded with the capacitive touch digitizer
  • Bezel frame and hinge brackets pre-fitted
  • 32-pin eDP display cable included

• Ten-Point Multi-Touch Digitizer
  The capacitive layer registers ten simultaneous contact points for pinch, swipe, zoom and rotate gestures.

• 32-Pin eDP Interface
  The 32-pin connector matches the specific FHD touchscreen configuration used in this chassis variant.

• Approximately 400-Nit Backlight
  LED backlighting reaches roughly 400 nits, which keeps text legible under office lighting and in travel use.

• Direct-Bonded Glass Surface
  The touch layer bonds directly to the panel, which reduces internal reflections and improves contrast at off-axis angles.

Specifications

What’s in the Box

• 13.3-inch FHD touch display assembly

• Pre-fitted bezel frame and 32-pin eDP cable

• Protective packaging

Why Choose This Replacement Module

• Replacing the full hinge-up unit avoids glass separation and adhesive rework on a bonded panel.

• The 32-pin connector matches the specific FHD touch configuration and removes adapter guesswork.

• Pre-fitted bezel and cable cut repair time for depot and field technicians.

• Ten-point touch and stylus support restore annotation, signature capture and tablet-mode use.

• Roughly 400 nits of brightness keeps the screen readable in brightly lit meeting rooms.

• 178-degree viewing angles support shared-screen review without colour shift across the desk.
