HP EliteBook 1030 G2 FHD Touch Screen Assembly 13.3-inch IPS 30-Pin eDP

13.3-Inch Convertible Panel Replacement

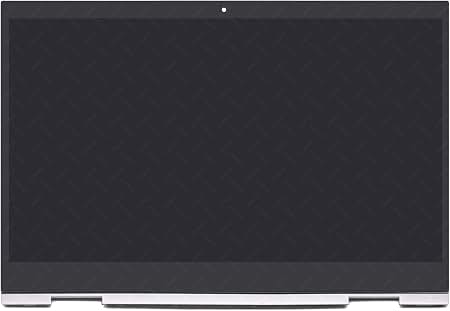

The HP EliteBook 1030 screen assembly is a complete 13.3-inch touch display module for the EliteBook x360 1030 G2 convertible. It ships as one sealed unit with the LCD, digitizer, bezel, and touch ribbon pre-fitted. Technicians replace the whole top half instead of separating bonded glass.

The Full HD panel runs 1920 x 1080 at 60 Hz across a 16:9 aspect ratio. IPS UWVA technology holds 85-degree viewing on all four axes, with 300 cd/m² brightness and an 800:1 typical contrast ratio. Pixel density sits at 166 PPI, and the panel renders 262K colours at 72% NTSC coverage.

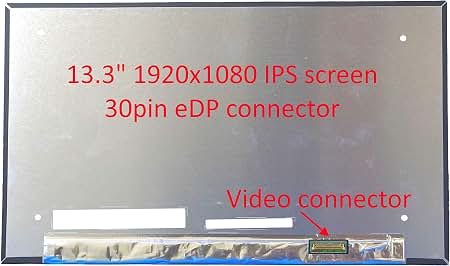

A 30-pin eDP connector sits at the bottom right of the panel and carries two eDP 1.3 lanes. A separate touch ribbon runs alongside it. Corning Gorilla Glass covers the 10-point capacitive digitizer, and the anti-glare surface cuts reflections in bright rooms. The module weighs approximately 350 g and measures 306 x 209 mm.

Key Features

• Complete Sealed Module
  The LCD and touch glass arrive bonded as one unit, so the repair avoids glass separation and adhesive rework.

• 30-Pin eDP Interface

  • Two eDP 1.3 lanes at the bottom right of the panel
  • Separate touch ribbon for digitizer signals
  • Matches the factory connector layout on the 1030 G2 chassis

• Full HD IPS Panel
  The 1920 x 1080 panel delivers 300 nits, 800:1 contrast and 85/85/85/85 viewing angles.

• Gorilla Glass Digitizer
  Corning Gorilla Glass protects a 10-point capacitive touch layer that supports pen input and tablet mode.

• Pre-Fitted Bezel and Touch Ribbon
  The frame and touch cable arrive installed, which shortens bench time during depot or field replacement.

• Anti-Glare Surface Treatment
  The anti-glare finish reduces reflections from overhead lighting and window glare on shared desks.

• Colour and Brightness Consistency
  The 262K colour panel and 300 cd/m² backlight maintain readable output across meeting rooms and travel use.

• Convertible Hinge Compatibility
  The assembly aligns with the x360 hinge covers and supports laptop, tent, stand and tablet positions after fitting.

Specifications

What’s in the Box

• EliteBook x360 1030 G2 touchscreen assembly

• Pre-fitted bezel and touch ribbon

• Protective packaging

Why Choose This Screen Assembly

• Replacing the full top half avoids the risk of cracking a good LCD while prying off bonded glass.

• The 1920 x 1080 IPS panel suits document review, spreadsheets and video calls without scaling artefacts.

• 30-pin eDP routing matches the original harness, so no adapter or firmware change is needed.

• 300-nit brightness keeps the screen readable near windows and under office lighting.

• Pre-fitted bezel and touch cable reduce turnaround time for repair desks handling multiple units.

• The anti-glare coating and 10-point digitizer support annotation, signatures and tablet-mode workflows.
