HP EliteBook 1030 G3 13.3 Inch FHD Touch Screen Assembly, 40-Pin eDP, 400 Nits, Anti-Glare

13.3-Inch Convertible Display Assembly

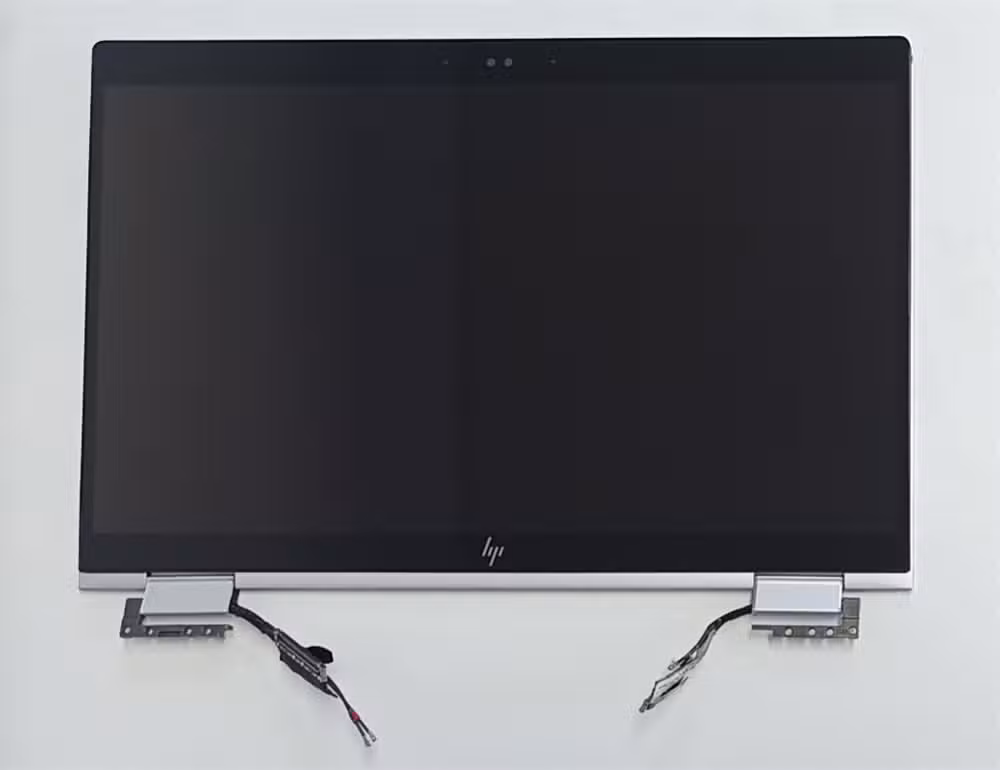

The HP 1030 G3 screen is a complete hinge-up display unit for the EliteBook x360 1030 G3 convertible. HP supplies touch displays only as full hinge-ups, so the part includes the LCD panel, digitizer glass, bezel and hinge covers. The 13.3-inch panel resolves 1920 x 1080 pixels across a 16:9 aspect ratio.

The UWVA panel delivers 400 nits brightness with anti-glare treatment, matching the L31868-001 factory specification. Corning Gorilla Glass 4 protects the direct-bonded touch layer, which supports ten-point capacitive input. The assembly connects over a 40-pin eDP interface with a separate touch connector.

HP lists five hinge-up variants for this chassis, spanning 400, 500 and 700 nits with anti-glare or BrightView surfaces. Technicians must match the original panel label before ordering, because pin count and surface treatment differ between configurations. The 700-nit privacy variants use Sure View and carry different part numbers.

Key Features

• 13.3-Inch FHD IPS Panel
  UWVA technology delivers 1920 x 1080 resolution at 166 pixels per inch with wide viewing angles.

• 400-Nit Anti-Glare Surface
  The matte finish suppresses reflections in bright offices, and 400 nits supports outdoor use under shade.

• 40-Pin eDP Interface

  • 40-pin eDP signal connector plus a separate touch connector
  • Matches L31868-001 and related hinge-up part numbers
  • Confirm the original panel label before ordering

• Direct-Bonded Touch Digitizer
  Ten-point capacitive input bonds directly to the panel, and Corning Gorilla Glass 4 resists scratches and impact.

• Full Hinge-Up Assembly
  The unit ships with LCD, digitizer, bezel and hinge covers fitted, removing glass bonding from the repair procedure.

• Part Number Coverage

  • L31868-001: 400 nits, anti-glare
  • L31869-001 and L31871-001: 700 nits privacy
  • L31870-001: 400 nits BrightView
  • L31872-001: 500 nits BrightView

Specifications

What’s in the Box

• 13.3-inch FHD touch hinge-up assembly

• Protective foam packaging

Why Choose This Assembly

• The hinge-up format delivers panel, digitizer and bezel as one unit, cutting repair labour and glass bonding risk.

• 400 nits and anti-glare treatment suit field engineers and meeting rooms with strong overhead lighting.

• A 40-pin eDP tail matches the 1030 G3 mainboard header, avoiding adapter boards and cable swaps.

• Gorilla Glass 4 protection withstands daily hinge movement in convertible tablet mode.

• The part number list covers standard, privacy and BrightView configurations for accurate matching.
