Hikvision DS-K1T804AMF Fingerprint Access Control Terminal with Wi-Fi
WhatsApp for availability
Hikvision Fingerprint Access Control Terminal with Wi-Fi
| Feature | Specification |
|---|---|
| Biometrics | 3,000 Fingerprints |
| Card Type | Mifare 1 (13.56MHz) |
| Connectivity | TCP/IP & Wi-Fi |
| Event Log | 100,000 Records |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

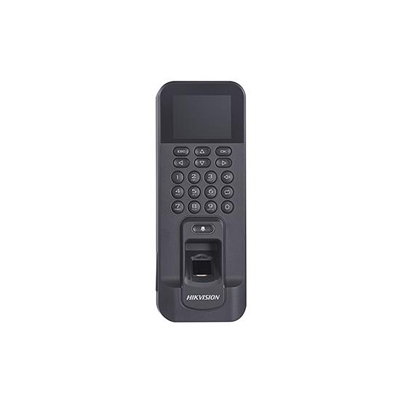

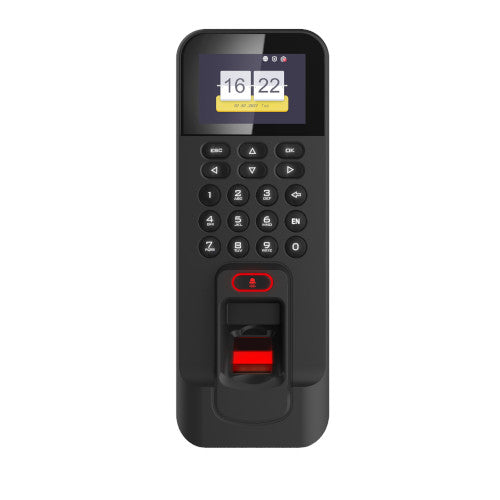

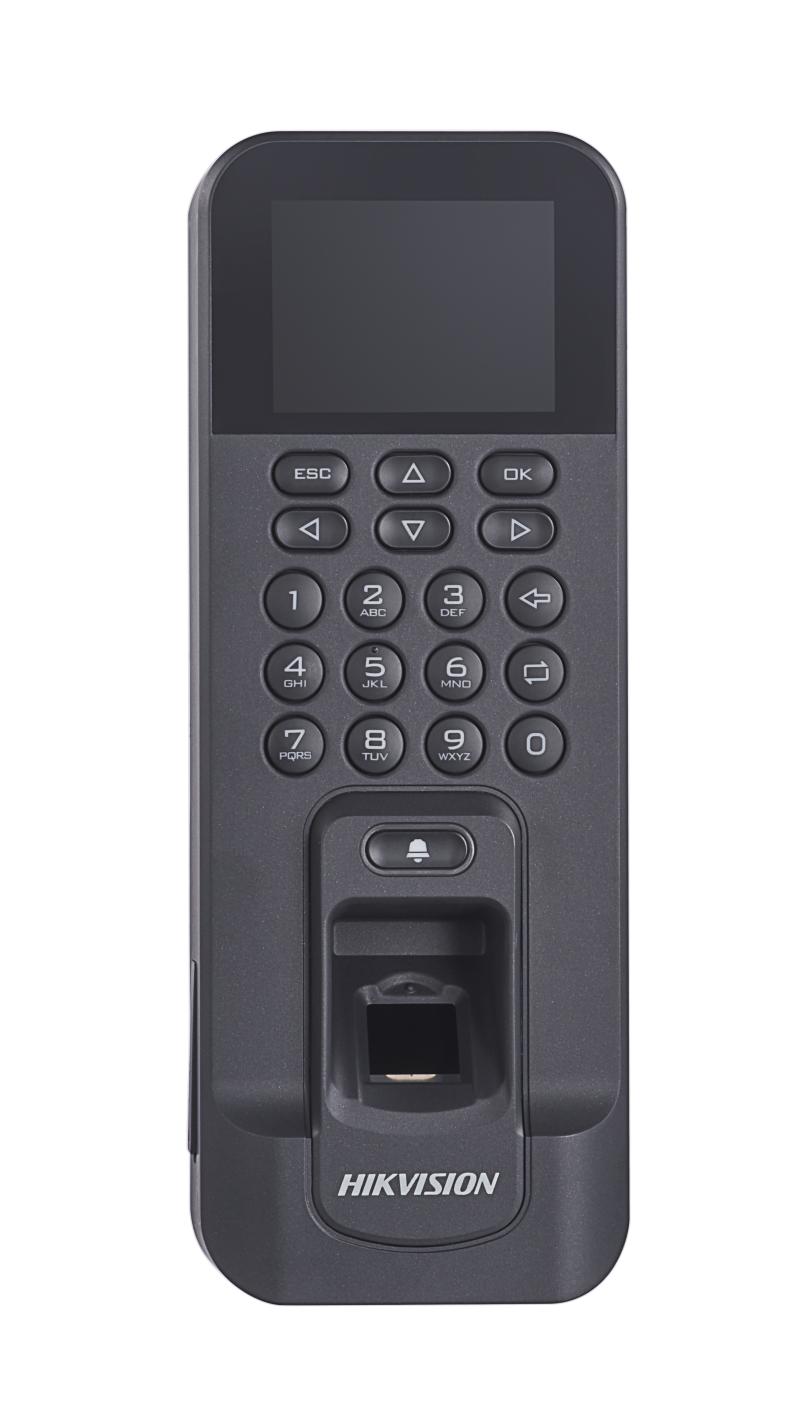

Hikvision DS-K1T804AMF
The Hikvision Fingerprint Access Terminal provides high-security biometric authentication for restricted areas and workforce management. This hardware integrates an optical recognition module with a Mifare card reader to provide multi-factor authentication. It supports up to 3,000 unique biometric templates and 3,000 proximity cards. The device stores 100,000 local event records within its internal memory. Network connectivity occurs via a standard RJ45 Ethernet port or integrated 2.4 GHz Wi-Fi. This dual-path communication ensures data synchronization with management software even in locations without physical cabling. The terminal operates as a standalone unit without requiring a separate access controller. It supports the ISUP 5.0 protocol for secure communication across wide area networks.
Key Features
Optical Sensor Precision
The high-performance optical module captures 500 DPI images for rapid identification in under one second.Communication Protocols
- TCP/IP interface for standard local area network integration.
- Built-in Wi-Fi module for wireless data transmission to the central server.
- RS-485 and Wiegand 26/34 support for peripheral reader connections.
- EHome and ISUP 5.0 compatibility for remote management over public networks.
Time and Attendance Functions
- Records six distinct status types including check-in, check-out, and overtime.
- Generates automated reports compatible with common payroll and HR software.
- Allows administrators to set shift schedules and holiday exceptions directly.
Tamper Protection
An integrated mechanical switch triggers an alarm if the device is forcibly removed from its mounting bracket.
Specifications
| Feature | Specification |
|---|---|
| Fingerprint Capacity | 3,000 Templates |
| Card Capacity | 3,000 Mifare 1 Cards |
| Event Capacity | 100,000 Logs |
| Display | 2.4-inch LCD-TFT Screen |
| Communication | TCP/IP, Wi-Fi, RS-485, Wiegand |
| Input Interfaces | Door Contact, Exit Button, Alarm Input |
| Power Supply | 12 VDC / 2 A |
| Operating Temp | -10 °C to +55 °C |
What’s in the Box
Hikvision DS-K1T804AMF Terminal
Wall Mounting Bracket
Installation Screw Kit
Interface Cables
Quick Start Guide
Why Choose Hikvision DS-K1T804AMF
Network engineers benefit from the flexible communication options that simplify installations where running new CAT6 cable is cost-prohibitive.
However, the inclusion of Wi-Fi allows for rapid deployment in existing structures without compromising data integrity.
The standalone design reduces the total cost of ownership by eliminating the need for external door controllers or complex wiring hubs.
Security managers can rely on the multi-factor logic to prevent unauthorized card sharing and ensure accurate workforce time tracking.
Local storage ensures that access logs remain intact during network outages and sync automatically once connectivity is restored.
