Hikvision DS-K7P01 Aluminum Alloy Exit Button

DS-K7P01 Aluminum Button

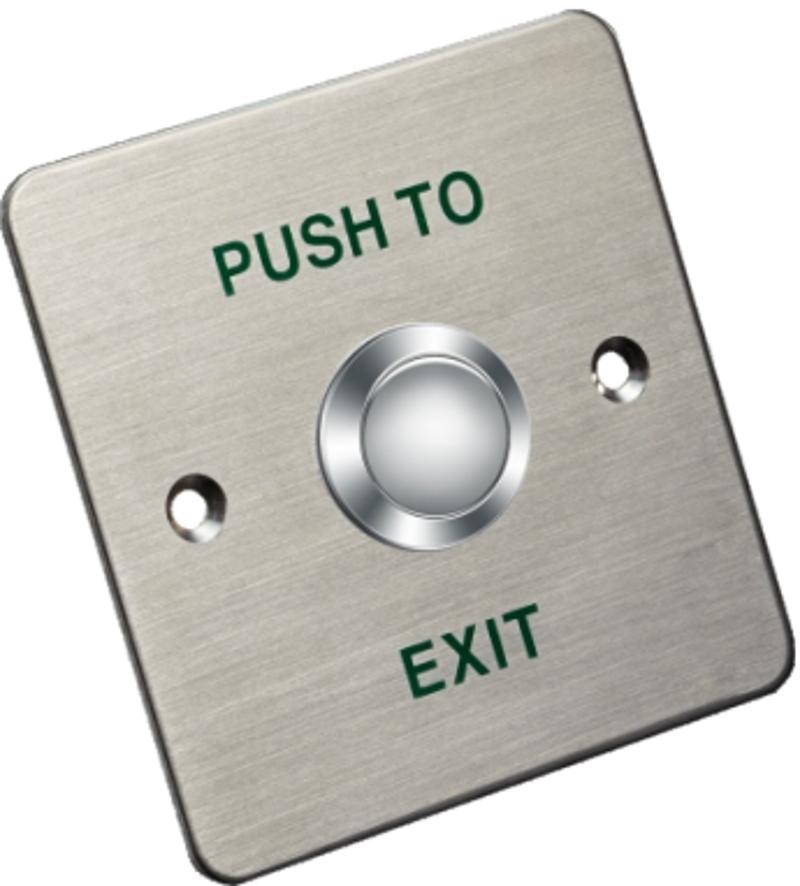

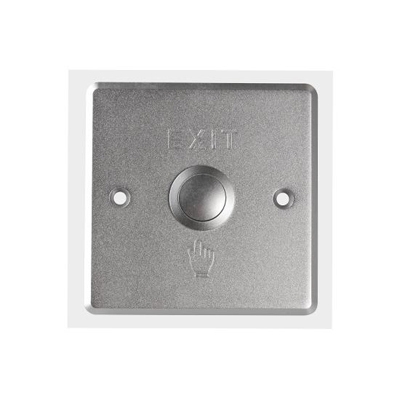

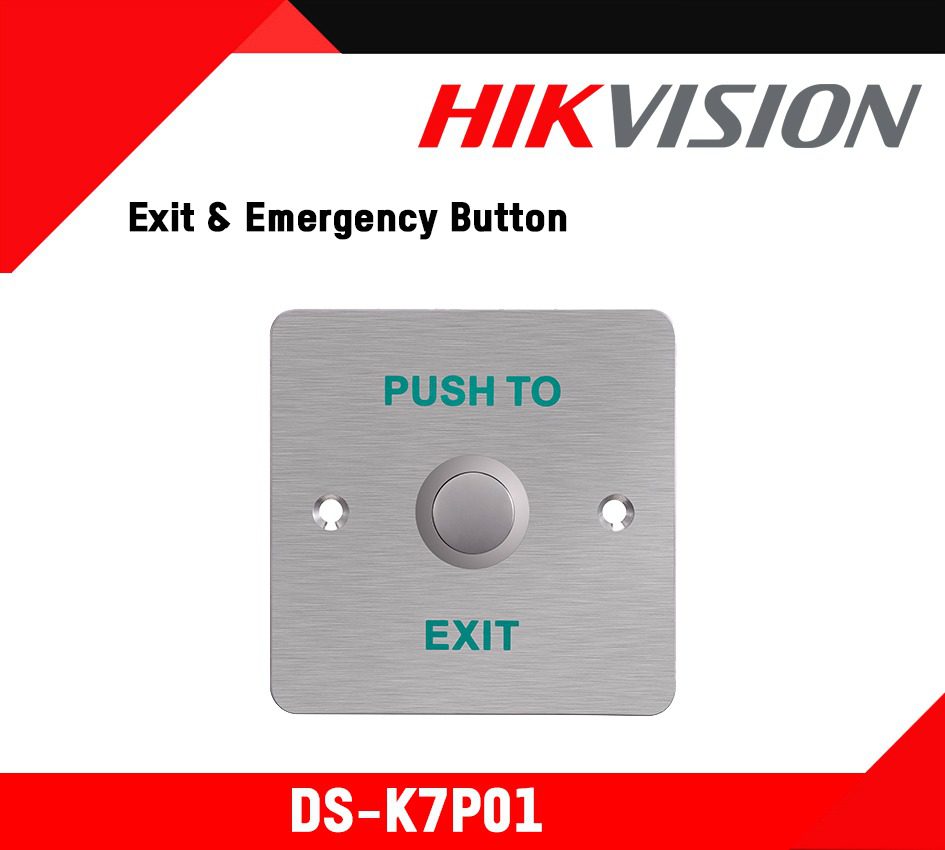

The Hikvision DS-K7P01 Exit Button serves as a critical hardware component in professional access control deployments. This egress device facilitates manual door release by sending a signal to the central controller. The 86mm square faceplate consists of sandblasted aluminum alloy. This material choice prevents corrosion and maintains structural integrity over long-term use. A metal button resides in the center of the panel to provide tactile feedback to the user.

System integrators utilize the Normally Open (NO) and Common (COM) contacts for wiring. These contacts support a maximum current of 3A at 36VDC. This specification allows for compatibility with a wide range of electronic locks and security controllers. The internal switching mechanism undergoes rigorous factory testing to ensure operational reliability. It survives over 500,000 presses without failure.

Environmental resilience remains a priority for this hardware. The component operates within a temperature range of -10°C to 55°C. It functions in non-condensing humidity levels up to 95%. These parameters make the unit suitable for various indoor commercial settings. The physical dimensions measure 86mm by 86mm with a depth of 28.9mm. This standard size simplifies the procurement of compatible backboxes and mounting hardware.

Key Features

• Panel Construction
  The 86mm square faceplate utilizes a sandblasted aluminum alloy for high durability.

• Electrical Specifications

  • NO and COM contact outputs
  • 3A current rating at 36VDC
  • Passive operation requiring no input power

• Mechanical Reliability
  The internal switch mechanism supports up to 500,000 operation cycles.

The wiring interface uses screw terminals for secure connections. This prevents accidental disconnection during vibration or impact. The aluminum panel thickness provides sufficient rigidity to prevent bending during forceful operation. This product adheres to global engineering standards for low-voltage access control peripherals. It integrates seamlessly with various door controllers and third-party security infrastructure.

The mechanical action of the button utilizes a spring-loaded reset system. This ensures the circuit returns to its default state immediately after release. Contact resistance remains low to prevent signal degradation across long cable runs. Installers typically use 18AWG to 22AWG wiring for these connections. The unit weighs approximately 0.25kg, providing a solid feel once mounted.

The exit release hardware accommodates surface mounting when used with compatible conduit boxes. It also supports flush mounting for a lower profile on drywall or masonry surfaces. The lack of electronic components like LEDs or sensors reduces power consumption to zero for the button itself. This passive operation increases overall system MTBF (Mean Time Between Failures).

Specifications

What’s in the Box

• DS-K7P01 Exit Button

• Mounting Screws

• Installation Template

Why Choose DS-K7P01 Aluminum Button

• High-cycle mechanical switch ensures long-term operational availability in busy corridors.

• Standardized 86mm dimensions allow for easy replacement of existing egress hardware.

• Aluminum alloy housing provides superior resistance to physical wear and environmental oxidation.
