HID DigitalPersona 4500 USB Fingerprint Reader Module
Original price was: KSh 13,500.00.KSh 11,000.00Current price is: KSh 11,000.00.
HID DigitalPersona 4500 USB Fingerprint Reader Module
| Sensor Type | Optical Fingerprint Reader |
| Resolution | 500 dpi |
| Interface | USB 2.0 Full-Speed |
| Scan Data | 8-bit Grayscale |
| Power Supply | 5.0V ±5% |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
HID DigitalPersona 4500 USB Fingerprint Reader Module
The HID DigitalPersona 4500 Module is a compact optical fingerprint reader engineered for seamless OEM integration. Designed for fast and accurate biometric authentication, it delivers high-quality fingerprint capture with advanced optical scanning and secure encrypted data transfer over USB.
Key Features
High-Precision Optical Fingerprint Scanning
500 dpi optical sensor captures detailed fingerprint images for fast and accurate verification, even with difficult fingerprints.OEM-Ready Compact Design
Miniature, self-contained module sealed against dust with integrated mounting features for easy hardware integration.Multiple Module Variants
Available in standard coated, standard non-coated, and small PCB coated versions to suit durability and space-constrained applications.Secure Encrypted Data Transfer
Built-in electronics manage image capture, encryption, and USB data transmission using proprietary rolling-key encryption.Low Power Consumption
Efficient power usage with ultra-low current in suspend mode, ideal for embedded and always-on systems.
Specifications
| Feature | Specification |
|---|---|
| Sensor Technology | Optical |
| Pixel Resolution | 500 dpi (average X, Y) |
| Scan Data | 8-bit grayscale (256 levels) |
| Scan Area | 14.6 mm (width) × 18.1 mm (length) |
| Image Distortion | < 1% (Typical) |
| Image Transfer Speed | < 0.17 seconds |
| Interface | USB 2.0 Full-Speed (USB 1.0/1.1/2.0 compatible) |
| Supply Voltage | 5.0V ±5% |
| Current (Scanning) | < 100 mA (Typical) |
| Current (Idle) | 120 mA (Typical) |
| Current (Suspend) | < 0.5 mA (Maximum) |
| Encryption | Proprietary 32-bit polynomial with rolling key |
| ESD Protection | > 15 kV |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% – 80% non-condensing |
| Storage Temperature | -30°C to 70°C |
| Storage Humidity | 10% – 90% non-condensing |
| Compliance | RoHS, UL, USB, WHQL |

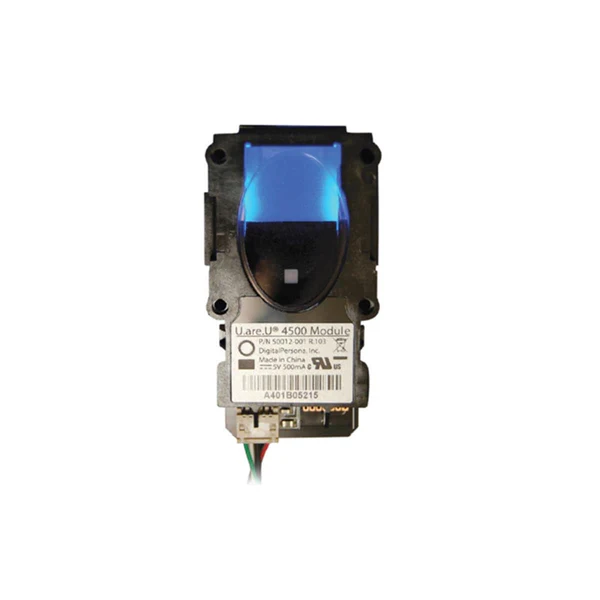

Available Module Versions
| Version | Part Number | Dimensions | Weight | Connector |
|---|---|---|---|---|
| Standard Size (Coated) | 50012-001-103 | 60.2 × 32.4 × 11 mm | 14.5 g | Top Mount Hirose DF13-5P-1.25DS |
| Standard Size (No Coating) | 50012-NC1-103 | 60.2 × 32.4 × 11 mm | 14.27 g | Top Mount Hirose DF13-5P-1.25DS |
| Small PCB (Coated) | 50012-F01-103 | 54.6 × 32.4 × 13.2 mm | 14.25 g | Bottom Mount Hirose DF13-5P-1.25DSA |
Why Choose HID DigitalPersona 4500 Module
High-quality optical fingerprint capture at 500 dpi
Designed for fast, reliable biometric authentication
Compact, dust-sealed design for OEM integration
Secure encrypted USB communication
Multiple form factors for flexible hardware designs
ved user workflow efficiency.
