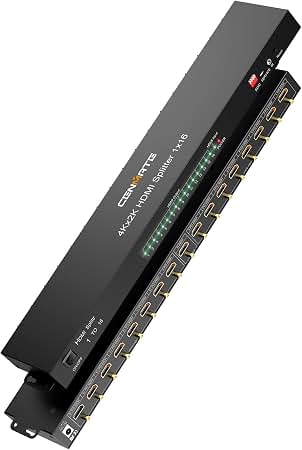

HDMI Splitter 1×16 Port 4K 30Hz 1080p 3D EDID HDCP 1.4 Rack Mount

Sixteen-Output HDMI Distribution Amplifier

The HDMI Splitter 1×16 duplicates a single HDMI source across sixteen displays without signal degradation. It supports 4K at 30Hz, 1080p at 60Hz and 3D frame packing. The metal chassis mounts in a standard 19-inch rack with the included 1U ears.

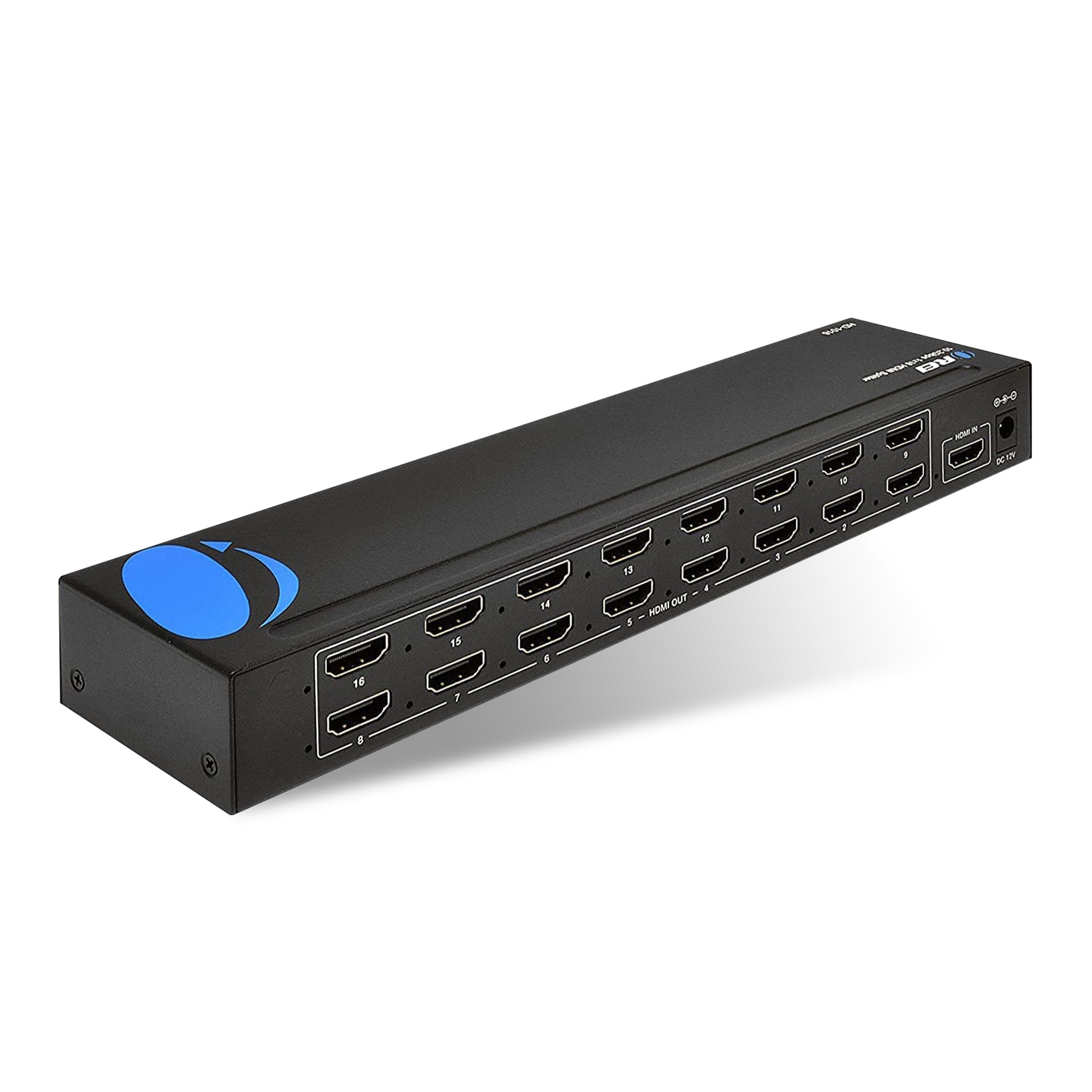

One HDMI Type-A input feeds sixteen HDMI Type-A outputs. The unit supports HDMI 1.4 and HDCP 1.4, with 10.2Gbps aggregate bandwidth across the TMDS lanes. EDID management copies the sink capabilities to the source, which prevents resolution drops on mixed panel fleets. Deep colour reaches 12-bit on compatible displays.

A 5V DC 2A adapter powers the splitter, and front-panel LEDs report input link and per-output status. Audio passes through as LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio. Operating temperature spans 0°C to 40°C. The chassis measures 440 x 200 x 44 mm and weighs approximately 1.6 kg.

Key Features

• Sixteen Simultaneous Outputs
  One input feeds sixteen displays without cascading additional distribution hardware.

• EDID Management

  • Copies the display EDID to the source for stable negotiation
  • Supports manual EDID selection when panels differ
  • Prevents blank screens after source reboots

• 4K 30Hz and 1080p 60Hz
  The signal path carries UHD at 30Hz and Full HD at 60Hz with 12-bit deep colour.

• HDCP 1.4 Compliance
  Handles protected content from set-top boxes, media players and commercial players.

• 10.2Gbps TMDS Bandwidth
  The HDMI 1.4 circuit moves high-bitrate video and HD audio without compression.

• 1U Rack Mount Chassis
  The metal enclosure fits standard 19-inch racks with the supplied mounting ears.

• Front-Panel Diagnostics
  LED indicators show input link status and the state of each output channel.

Specifications

What’s in the Box

• 1×16 HDMI distribution splitter

• 5V 2A power adapter

• Rack mounting ears

• User guide

Why Choose This Distribution Unit

• Sixteen outputs remove cascaded splitters from signage walls and control rooms.

• EDID handling keeps resolution stable when display models differ across a site.

• HDCP 1.4 support covers commercial media players and set-top receivers.

• The 10.2Gbps path carries 4K 30Hz and 12-bit colour without downsampling.

• Metal housing and rack ears simplify installation in AV cabinets.

• Front LEDs shorten fault finding during maintenance rounds.
