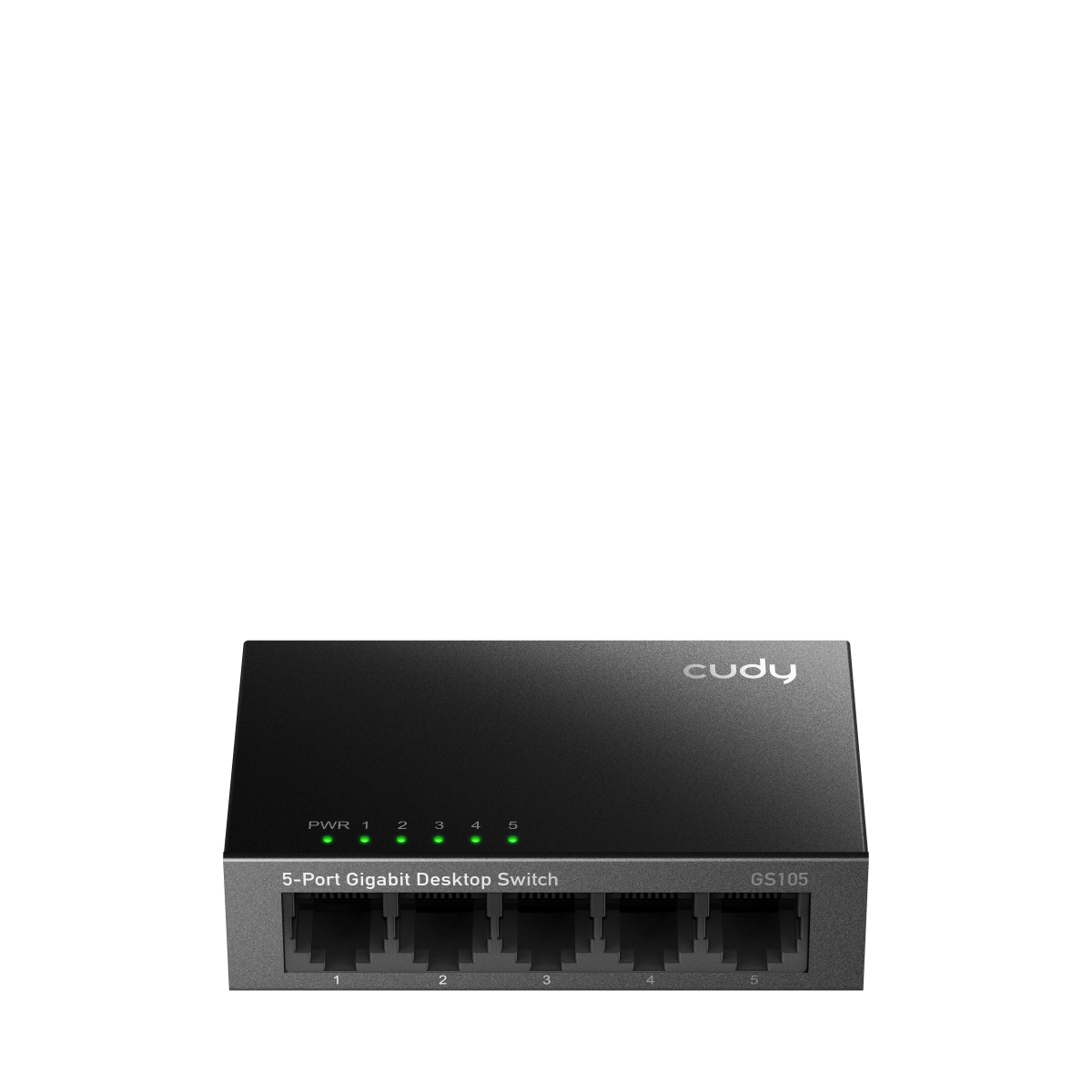

GS105 5-Port Gigabit Switch, 5x 10/100/1000BASE-T RJ45, 10 Gbps, Fanless Metal Chassis

Five Copper Ports for Small Office Networks

The GS105 5-Port Gigabit Switch adds five 10/100/1000BASE-T copper ports to a small office, retail counter or server closet. Each port auto-negotiates speed, duplex and MDI/MDIX cable pinout. Plug the uplink into a router and the unit starts forwarding traffic without software installation or configuration.

Five gigabit PHYs share a non-blocking fabric rated at 10 Gbps, so every port can transmit and receive at line rate simultaneously. The store-and-forward engine holds 128 KB of packet buffer and learns up to 2,000 MAC addresses. Jumbo frames up to 9 KB pass through unfragmented, which helps large file transfers and backup jobs.

A metal chassis with no fan operates at 0 dB, so the unit suits shared desks and noise-sensitive rooms. IEEE 802.3az Energy Efficient Ethernet cuts power on idle ports and short cable runs. An external adapter accepts 100 to 240 V AC input, and the carton includes a wall-mount kit for cabinet or wall fixing.

Key Features

• Five autosensing RJ45 ports
  Each 10/100/1000BASE-T port detects link speed, duplex mode and cable type without manual settings.

• Non-blocking 10 Gbps fabric
  All five ports forward at wire speed at the same time with no oversubscription.

• Layer 2 traffic handling

  • IEEE 802.1p priority tagging with DSCP-based QoS
  • Weighted round robin queues at a 1:2:4:8 ratio
  • IEEE 802.3x flow control to limit congestion loss
  • Jumbo frame support up to a 9 KB packet size

• Passive metal enclosure
  A fanless metal case dissipates heat and rates for 0 dB acoustic output.

• Energy Efficient Ethernet
  IEEE 802.3az power scaling drops consumption on inactive links and cable runs under 100 m.

• Desktop or wall deployment
  Rubber feet and an included bracket allow shelf, desk or wall placement.

Specifications

What’s in the Box

• GS105 switch unit

• External power adapter

• Wall-mount kit

• Installation guide

Why Choose the GS105

• A compact five-port unmanaged gigabit switch fits on a shelf, under a counter or inside a small wall cabinet.

• Store-and-forward switching validates every frame before forwarding, so corrupt packets never reach the uplink.

• Unmanaged operation removes console access, firmware policy and VLAN planning from the deployment task.

• Passive cooling keeps acoustic output at zero for front-of-house, clinical and studio areas.
