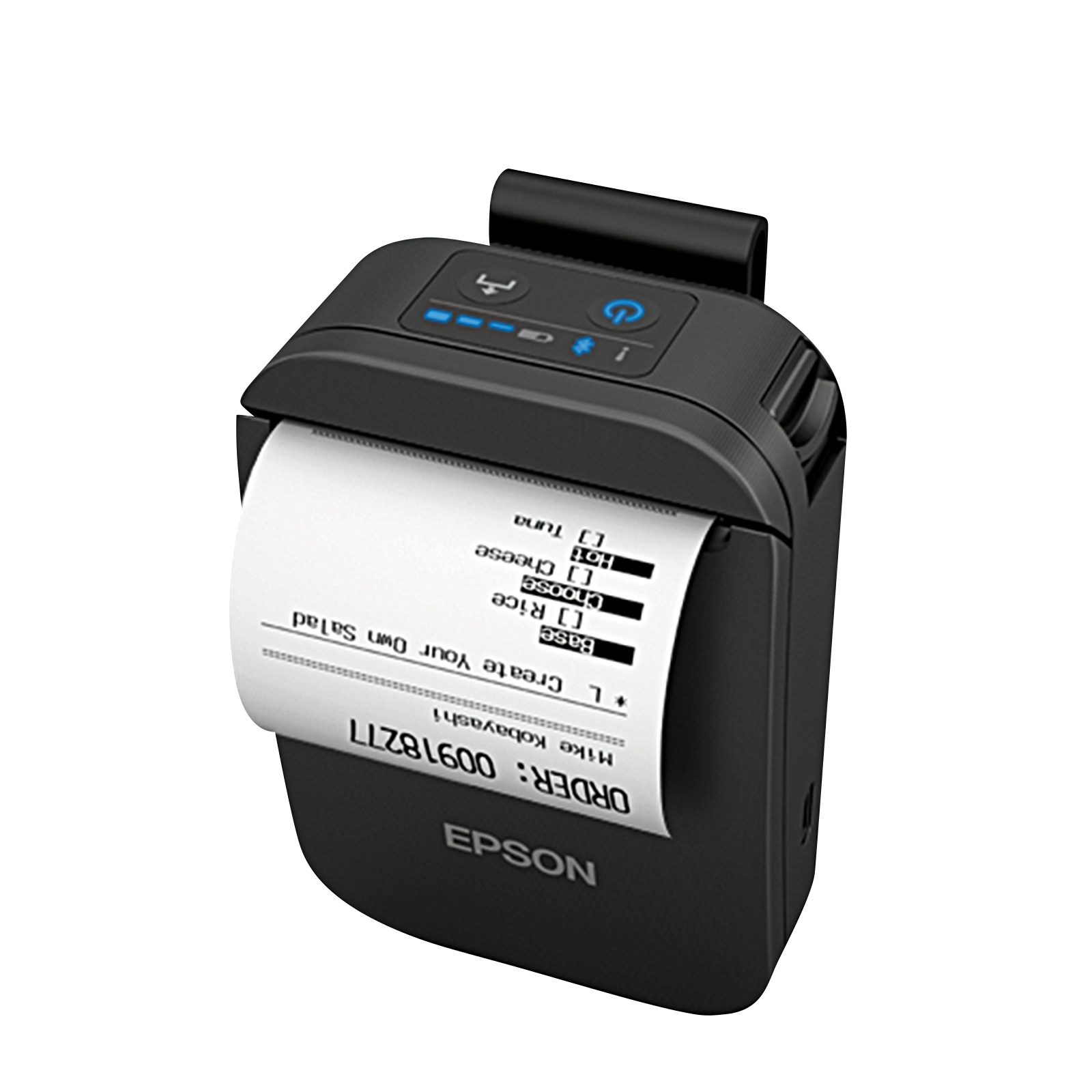

Epson TM-P20II C31CJ99101 Portable Receipt Printer – 58mm Bluetooth 5.0 USB-C

Mobile Thermal Printer for Field Receipting

The Epson TM-P20II is a 2-inch mobile thermal receipt printer for retail, delivery and hospitality staff who print at the point of sale. It weighs 216 g with the battery fitted and measures 79 x 120 x 46 mm. A belt clip ships in the box for hands-free carrying.

Direct thermal line printing runs at 203 x 203 dpi and up to 100 mm/s. The mechanism accepts 58 mm roll paper with a maximum roll diameter of 40.4 mm and a media thickness range of 50 to 75 µm. A 4 KB data buffer holds the print job between transmissions.

Bluetooth 5.0 covers both classic and low-energy modes, and a USB-C port handles wired connection and charging. The Bluetooth variant runs up to 27 hours on a full charge from the OT-BY20 lithium-ion pack. NFC support simplifies pairing on compatible Android handsets.

The enclosure carries an IP54 rating against dust and water ingress, with a 2.1 m drop rating for handheld use. Operating temperature spans -15 °C to 50 °C. Paper end, cover open and black-mark sensors report status through a programmable buzzer and LED indicators.

Epson ePOS-Print lets compatible POS applications print directly from iOS, Android and Windows devices. The print head carries a 50 km service life, and the mechanism reaches 120,000 MCBF. Paper Saving Mode trims media consumption on long shifts.

Key Features

• 58 mm Thermal Line Mechanism
  Prints receipts at 203 x 203 dpi and up to 100 mm/s on standard 58 mm roll stock.

• Bluetooth 5.0 and USB-C Connectivity
  Classic and low-energy Bluetooth pair with handhelds, while USB-C handles wired data and charging.

• 27-Hour Battery Runtime
  The OT-BY20 lithium-ion pack sustains a full shift on the Bluetooth model.

• Rugged Field Enclosure

  • IP54 sealing against dust and water spray
  • 2.1 m drop rating for handheld handling
  • Operating range of -15 °C to 50 °C

• NFC Pairing
  Tap-to-connect support reduces manual Bluetooth setup on compatible devices.

• Sensor and Alert Set
  Paper end, cover open and black-mark detection drive the buzzer and status LEDs.

• 4 KB Data Buffer
  The buffer absorbs job bursts from the host application during peak service.

• ePOS-Print Support
  Native printing from iOS, Android and Windows POS software without a middleware server.

• Manual Tear Bar
  The unit ships without an autocutter and relies on a tear edge to keep weight down.

Specifications

What’s in the Box

• TM-P20II printer unit

• OT-BY20 lithium-ion battery

• Belt clip

• USB-C cable

• Starter roll paper

• Quick start guide and setup guide

Why Choose the TM-P20II

• At 216 g, the handheld receipt printer reduces carry fatigue across a full delivery route.

• IP54 sealing and a 2.1 m drop rating suit in-vehicle and outdoor counter use.

• USB-C charging standardises cabling with modern handheld terminals and phones.

• ePOS-Print support removes the need for a middleware server in mobile POS deployments.

• Sensor-driven alerts let operators catch paper-out conditions before a transaction fails.
